1918 H (1692523) - AGCO Garden Tractor, 18hp Engine Group - 18HP Briggs & Stratton Parts Diagram

Garden Tractor, 18hp

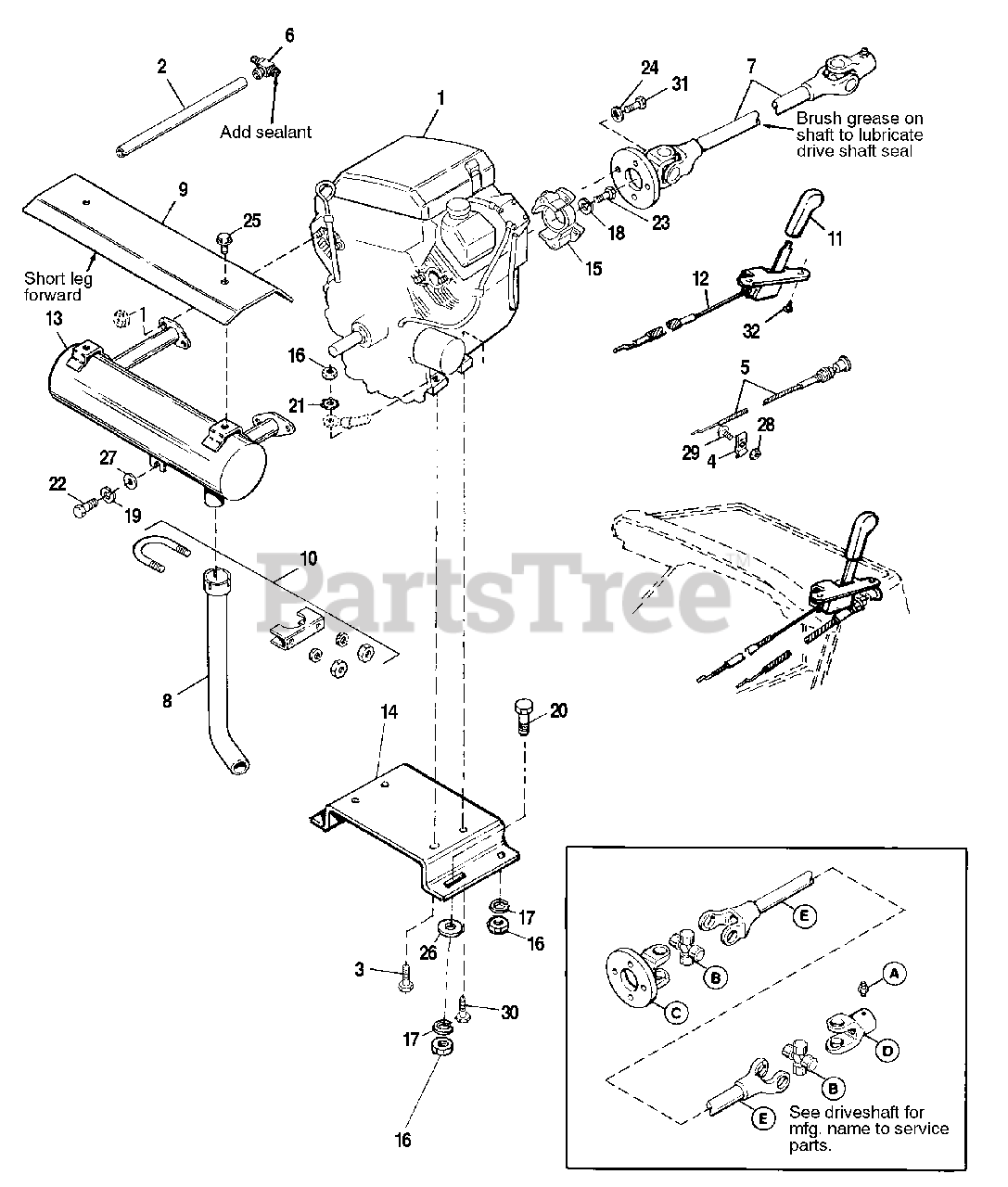

Engine Group - 18HP Briggs & Stratton Parts Diagram

  • Title

1

ENGINE, 18 HP, Briggs & Stratton

$

$

Not available

2

Simplicity 2166137SM

HOSE, Oil Drain

$10.99

$

Usually ships in 2-12 days

0

3

Simplicity 2860361SM

SCREW, Hex, Taptite, Plated, 3/8-16 x 2

$6.49

$

In Stock, only 4 left!

0

4

Simplicity 1677213SM

CLIP, Double

$

$

Not available

5

Simplicity 1704344SM

CABLE, Choke

$49.99

$

Usually ships in 2-12 days

0

6

Simplicity 1708405SM

VALVE, Shut-off

$38.99

$

Usually ships in 2-12 days

0

7

Simplicity 1708491SM

DRIVE SHAFT ASSY.

Note: (Incl. Ref. Nos. A, B, C, D & E) Check Assy. for Mfg's. name (Neapco or Weasler)

$581.99

$

Usually ships in 2-12 days

0

8

Simplicity 1708546SM

ELBOW, Exhaust

$

$

Not available

9

Simplicity 1708873ASM

HEAT SHIELD, Muffler

$28.99

$

Usually ships in 2-12 days

0

10

Simplicity 1712286SM

CLAMP, Exhaust

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1713846SM

KNOB, Throttle

$15.99

$

In Stock, Qty 5

0

12

Simplicity 1714067SM

THROTTLE CONTROL ASSY.

$74.99

$

Usually ships in 2-12 days

0

13

Simplicity 1714626

MUFFLER

$

$

Not available

14

Simplicity 1714630SM

BASE, Engine

$

$

Not available

15

Simplicity 1714631SM

ADAPTOR, Flywheel

$

$

Not available

16

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 13

0

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

20

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

21

Simplicity 1920427SM

LOCKWASHER, External Tooth, 3/8

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1920676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$5.49

$

In Stock, Qty 8

0

23

Simplicity 1922127SM

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

In Stock, only 3 left!

0

24

Simplicity 1923300SM

LOCKWASHER, Internal Tooth, 5/16

$3.99

$

In Stock, only 4 left!

0

25

Simplicity 1924856SM

SCREW, Hex Hd., Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

26

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1925125SM

WASHER, 7/16 x 15/16 x 7/64

$6.49

$

In Stock, only 2 left!

0

28

Simplicity 1928919SM

NUT & WASHER ASSY., (Keps), #10-32

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 1930531SM

SCREW, Truss Hd., Phillips, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

30

Simplicity 1930598SM

SCREW, Hex, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

In Stock, only 2 left!

0

31

Simplicity 1960407SM

CAPSCREW, Hex, Socket Hd., M8 x 1-1/4 x 20mm

$4.49

$

In Stock, only 4 left!

0

32

Simplicity 1960536SM

SCREW, Plastite, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0

A

Simplicity 2812808SM

FITTING, Lube

Note: Repair Parts for Ref. No. 7, Drive Shaft, part no. 1708491

$4.49

$

In Stock, only 2 left!

0

B

Simplicity 1678805SM

CROSS & BEARING KIT (Neapco)

Note: Repair Parts for Ref. No. 7, Drive Shaft, part no. 1708491

$

$

Not available

B

Simplicity 1679003SM

CROSS & BEARING KIT (Weasler)

Note: Repair Parts for Ref. No. 7, Drive Shaft, part no. 1708491

$80.99

$

Usually ships in 2-12 days

0

C

YOKE & FLANGE ASSY. (Neapco)

$

$

Not available

C

Simplicity 1709048SM

YOKE & FLANGE ASSY. (Weasler)

Note: Repair Parts for Ref. No. 7, Drive Shaft, part no. 1708491

$

$

Not available

D

YOKE (Neapco)

$

$

Not available

D

Simplicity 1709049SM

YOKE (Weasler)

Note: Repair Parts for Ref. No. 7, Drive Shaft, part no. 1708491

$

$

Not available

E

YOKE & TUBE ASSY. (Neapco)

$

$

Not available

E

Simplicity 1709050SM

YOKE & TUBE ASSY. (Weasler)

Note: Repair Parts for Ref. No. 7, Drive Shaft, part no. 1708491

$98.99

$

Usually ships in 2-12 days

0
