1918 H (1692523) - AGCO Garden Tractor, 18hp Service Parts - Peerless Transaxle Model 2600-0019 Parts Diagram

Garden Tractor, 18hp

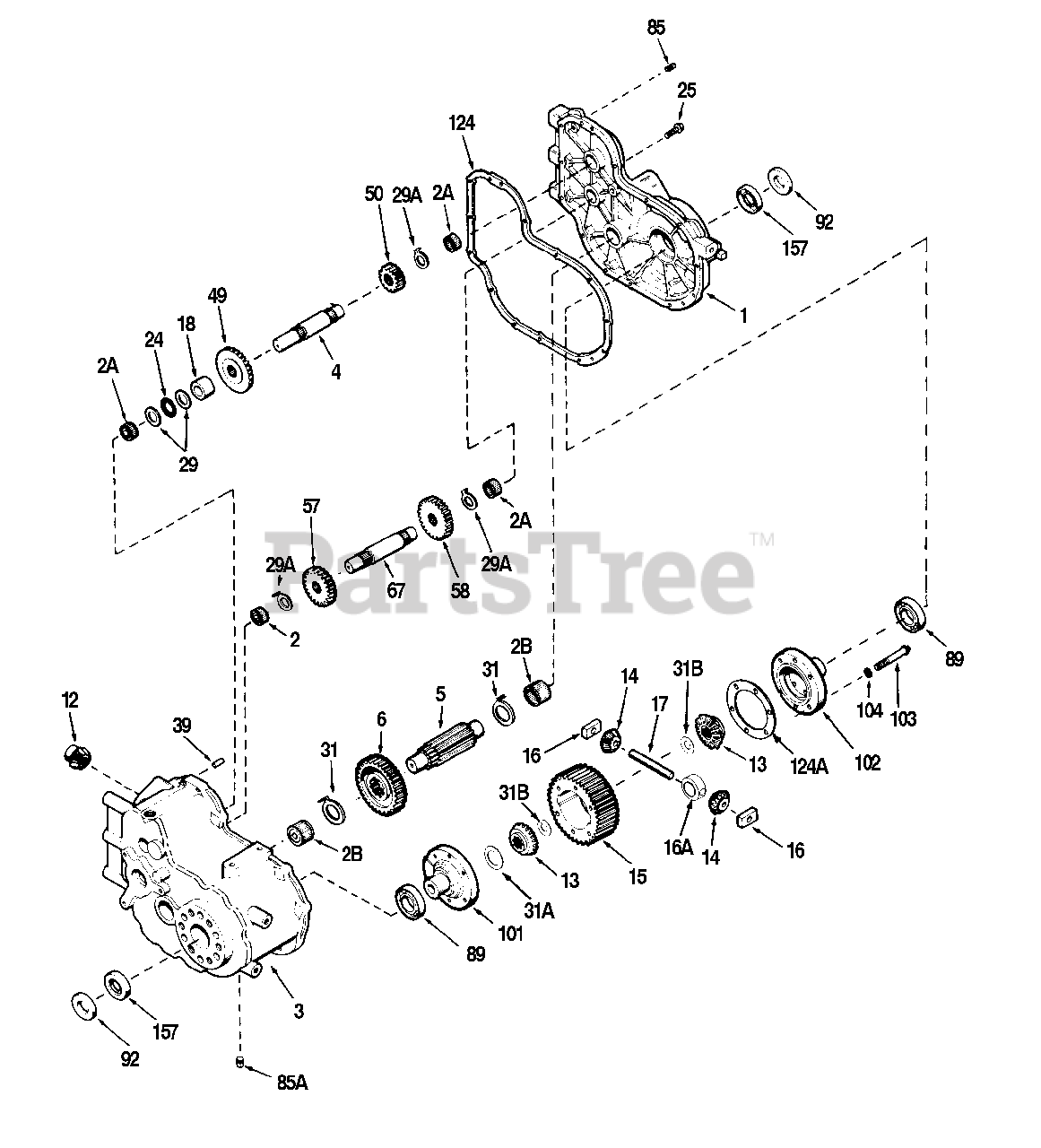

Service Parts - Peerless Transaxle Model 2600-0019 Parts Diagram

  • Title

1

Simplicity 772087A

TRANSAXLE COVER

Note: (Incl. 2A & 2B)

$

$

Not available

2

Simplicity 780126

NEEDLE BEARING

$6.49

$

Usually ships in 2-12 days

0

2A

Simplicity 780100

NEEDLE BEARING

$6.99

$

Usually ships in 2-12 days

0

2B

Simplicity 780099

NEEDLE BEARING

$

$

Not available

3

Simplicity 770073A

TRANSAXLE CASE

Note: (Incl. 2, 2A & 2B)

$

$

Not available

4

Simplicity 776213

COUNTERSHAFT

$

$

Not available

5

Simplicity 776120A

OUTPUT PINION

$

$

Not available

6

Simplicity 778103

OUTPUT GEAR (33 teeth)

$

$

Not available

12

Simplicity 778155

BEVEL PINION

$

$

Not available

13

Simplicity 778158

BEVEL GEAR (16 teeth)

$

$

Not available

14

Simplicity 778157

BEVEL PINION (10 teeth)

$

$

Not available

15

Simplicity 778156

RING GEAR

$

$

Not available

16

Simplicity 786098

DRIVE BLOCK

$

$

Not available

16A

Simplicity 786168

SPACER BLOCK

$

$

Not available

17

Simplicity 786096

DRIVE PIN

$

$

Not available

18

Simplicity 786094

SPACER

$

$

Not available

24

Simplicity 780012

THRUST BEARING

$

$

Not available

25

Simplicity 792067

SCREW, 5/16-18 x 1

$

$

Not available

29

Simplicity 780045

WASHER

$1.99

$

Usually ships in 2-12 days

0

29A

Simplicity 780157

WASHER

$

$

Not available

31

Simplicity 780156

WASHER

$

$

Not available

31A

Simplicity 780130

WASHER

$1.99

$

Usually ships in 2-12 days

0

31B

Simplicity 792158

BELLEVILLE WASHER

$

$

Not available

39

Simplicity 786026

Dowel Pin

$

$

Not available

49

Simplicity 778087

Bevel Gear (30 teeth)

$

$

Not available

50

Simplicity 778088

Spur Gear (16 teeth)

$

$

Not available

57

Simplicity 778102

Spur Gear (17 teeth)

$

$

Not available

58

Simplicity 778160

Spur Gear (27 teeth)

$

$

Not available

67

Simplicity 776214

Brake Shaft

$

$

Not available

85

Simplicity 792039

Plug, 1/8 - 27

$

$

Not available

85A

Simplicity 792019

MAGNETIC DRAIN PLUG, 3/8-18

$4.99

$

Usually ships in 2-12 days

0

89

Simplicity 780125

Ball Bearing

$

$

Not available

92

Simplicity 786097

Spacer

$

$

Not available

101

Simplicity 774486A

Differential Carrier

Note: (Incl. 31A)

$

$

Not available

102

Simplicity 774490A

Differential Carrier

Note: (Incl. 31A)

$

$

Not available

103

Simplicity 792101

Screw, 3/8-16 x 2-3/4

$21.99

$

In Stock, Qty 7

0

104

Simplicity 792011

Lockwasher, 3/8

$

$

Not available

124

Simplicity 788058B

Gasket

$

$

Not available

124A

Simplicity 780190

SHIM

$

$

Not available

157

Simplicity 788049

Oil Seal, 1-1/8

$

$

Not available
