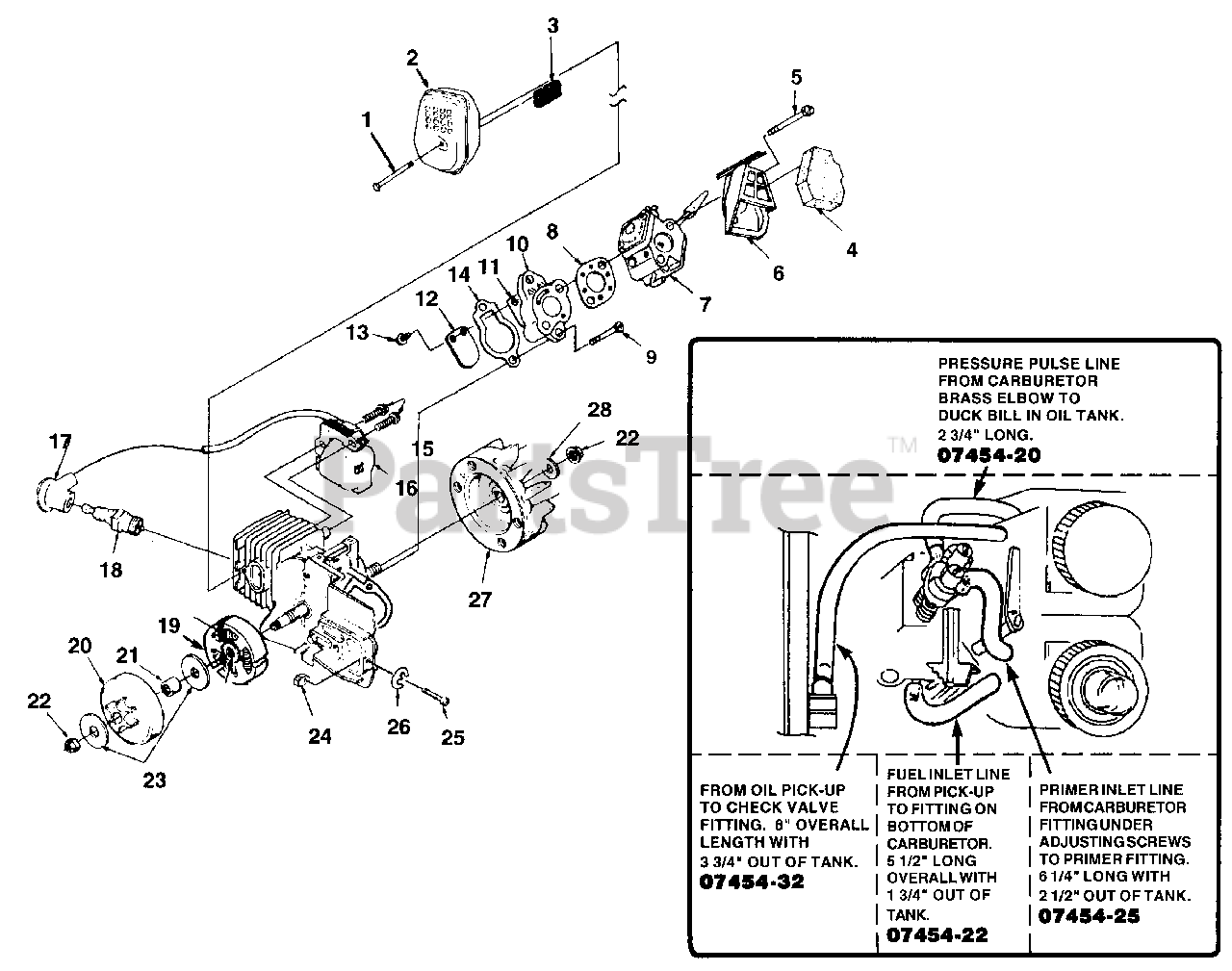

192 (UT-10729-D) - Homelite Chainsaw Ignition, Rotor, Carburetor & Clutch Parts Diagram

Chainsaw

Ignition, Rotor, Carburetor & Clutch Parts Diagram

  • Title

1

Homelite 93460

SCREW - Machine Hex Sems (#8-32 X 3/4")

Note: (Torque Specs: 50-60 in/lbs, 5.7-6.9 Nm)

$

$

Not available

2

Homelite A02459

MUFFLER

$

$

Currently unavailable

3

Homelite 02458

SCREEN - Spark Arrestor

$

$

Not available

4

Homelite 02500

FILTER - Air
(Superseded to UP07386)

$

$

Not available

5

Homelite 00167

SCREW - Thread Forming

Note: (Torque Specs: 35-45 in/lbs, 4.0-5.2 Nm)

$

$

Not available

6

Homelite 02491A

BOX - Air Filter

$

$

Not available

7

Homelite A01373B

CARBURETOR (Zama)

$

$

Currently unavailable

8

Homelite 02488

GASKET - Carburetor
(Superseded to UP05880)

$5.99

$

Usually ships in 3-7 days

0

9

Homelite 82589

SCREW - Plastite, (10-14 X 1")

Note: (Torque Specs: 65-75 in/lbs, 7.5-8.6 Nm)

$3.49

$

In Stock, Qty 7

0

10

Homelite A02499

HEAT DAM

$18.99

$

Usually ships in 3-7 days

0

11

Homelite 95983

REED
(Superseded to UP07391)

$10.99

$

Usually ships in 3-7 days

0

12

Homelite 03205

STOP - Reed

$

$

Not available

13

Homelite 82498

SCREW - Hex Taptite (4-40 X 3/8")

Note: (Torque Specs: 10-15 in/lbs, 1.1-1.7 Nm)

$

$

Not available

14

Homelite 02453

GASKET - Intake Manifold

$6.49

$

Usually ships in 3-7 days

0

15

Homelite 82540

SCREW - Thread Forming (8-32 X 1")

Note: (Torque Specs: 30-40 in/lbs, 3.5-4.6 Nm)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 94711CS

MODULE - Ignition

$

$

Not available

17

Homelite A33055

TERMINAL

$

$

Not available

18

Homelite 96169S

SPARK PLUG (Champion DJ7Y)
(Superseded to UP03883)

Note: (Torque Specs: 120-180 in/lbs, 13.8-20.7 Nm)

$5.49

$

In Stock, only 4 left!

0

Homelite 79252

SPARK PLUG (Champion RDJ7Y)
(Superseded to UP03883)

Note: (Torque Specs: 120-180 in/lbs, 13.8-20.7 Nm)

$5.49

$

In Stock, only 4 left!

0

19

Homelite A97921A

CLUTCH KIT

$

$

Not available

20

Homelite A95653E

SPROCKET & DRUM

$

$

Not available

21

Homelite 70277

BEARING
(Superseded to UP05641)

$14.99

$

Usually ships in 3-7 days

0

22

Homelite 81229A

NUT - Rotor (5/16-24)

Note: (Torque Specs: 100-150 in/lbs, 11.5-17.3 Nm)

$5.99

$

Usually ships in 3-7 days

0

23

Homelite 95299

WASHER - Thrust

$

$

Not available

24

Homelite 692542

PIN - Adjusting

$30.99

$

Usually ships in 3-7 days

0

25

Homelite A00440

SCREW & E-RING KIT

$

$

Not available

26

Homelite 93574

E-RING
(Superseded to A00440)

$

$

Not available

27

Homelite A04158S

ROTOR & STARTER PAWL
(Superseded to UP03856A)

$

$

Not available

28

Homelite 84065

WASHER - 5/16"
(Superseded to UP04241)

$

$

Not available

0745432

Homelite 0745432

LINE - (8")

$

$

Not available

0745420

Homelite 0745420

PRESSURE PULSE LINE

$

$

Currently unavailable

0745425

Homelite 0745425

PRIMER INLET LINE

$

$

Not available

0745422

Homelite 0745422

FUEL INLET LINE

$10.99

$

In Stock, only 2 left!

0
