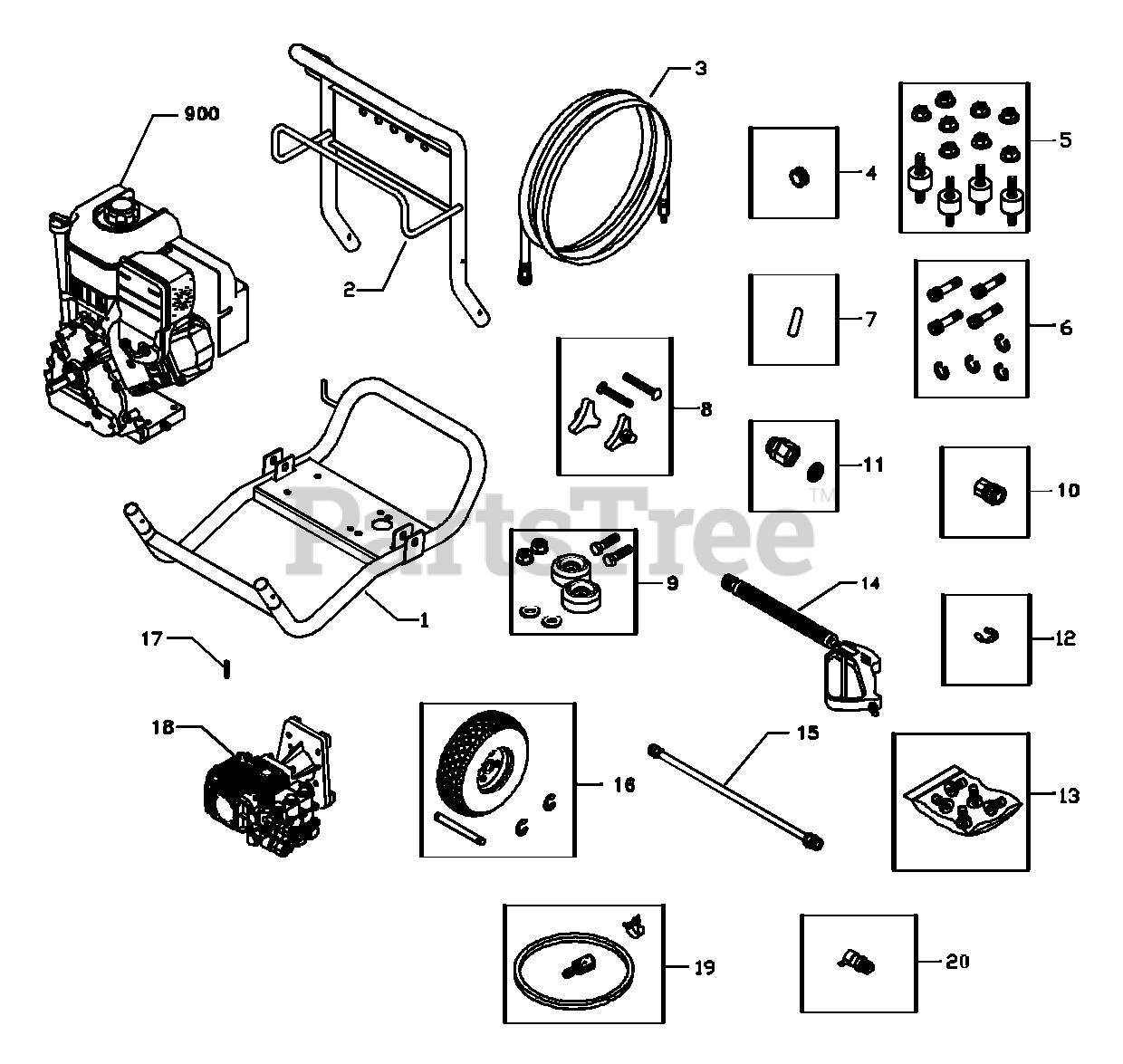

1920-0 - Craftsman 3,400 PSI Pressure Washer Main Unit Parts Diagram

3,400 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B191938GS

BASE
(Superseded to B193075GS)

$199.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B191942GS

HANDLE
(Superseded to B196133GS)

$164.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4805GS

HOSE
(Superseded to 205734GS)

$

$

Not available

4

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192134GS

KIT, Engine Mounting Hardware

$29.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 192132GS

KIT, Pump Mounting Hardware

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2516GS

VINYL CAP

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

10

Briggs & Stratton 95458GS

QUICK CONNECT
(Superseded to 703824)

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192135GS

KIT, Garden Hose Inlet

$27.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton B4847GS

KIT, Nozzle

$32.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B1436BGS

GUN
(Superseded to 704311)

$115.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 190779GS

EXTENSION
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

16

Briggs & Stratton 192317GS

KIT, Wheel

$53.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 63281GS

KEY
(Superseded to 703890)

$4.99

$

In Stock, Qty 8

0

18

Briggs & Stratton 191879GS

ASSY, Pump
(Superseded to 203046GS)

Note: (See "Pump" and "Unloader")

$731.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 192796GS

KIT, Chemical Hose/Filter

$16.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B1554GS

VALVE, Thermal Relief
(Superseded to 195016GS)

$25.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

Briggs & Stratton 192736GS

MANUAL, Owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192918GS

KIT, Decals

Note: Not Illustrated

$51.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061GS

OIL, Bottle
(Superseded to BB3061GS)

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessory Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175115GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessory Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174401GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessory Not Illustrated

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessory Not Illustrated

$21.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available
