19225 - Toro Whirlwind Walk-Behind Mower (SN: 000000001 - 000999999) (1970) 21" WHIRLAND H.P. KEY-LECTRIC Parts Diagram

Whirlwind Walk-Behind Mower

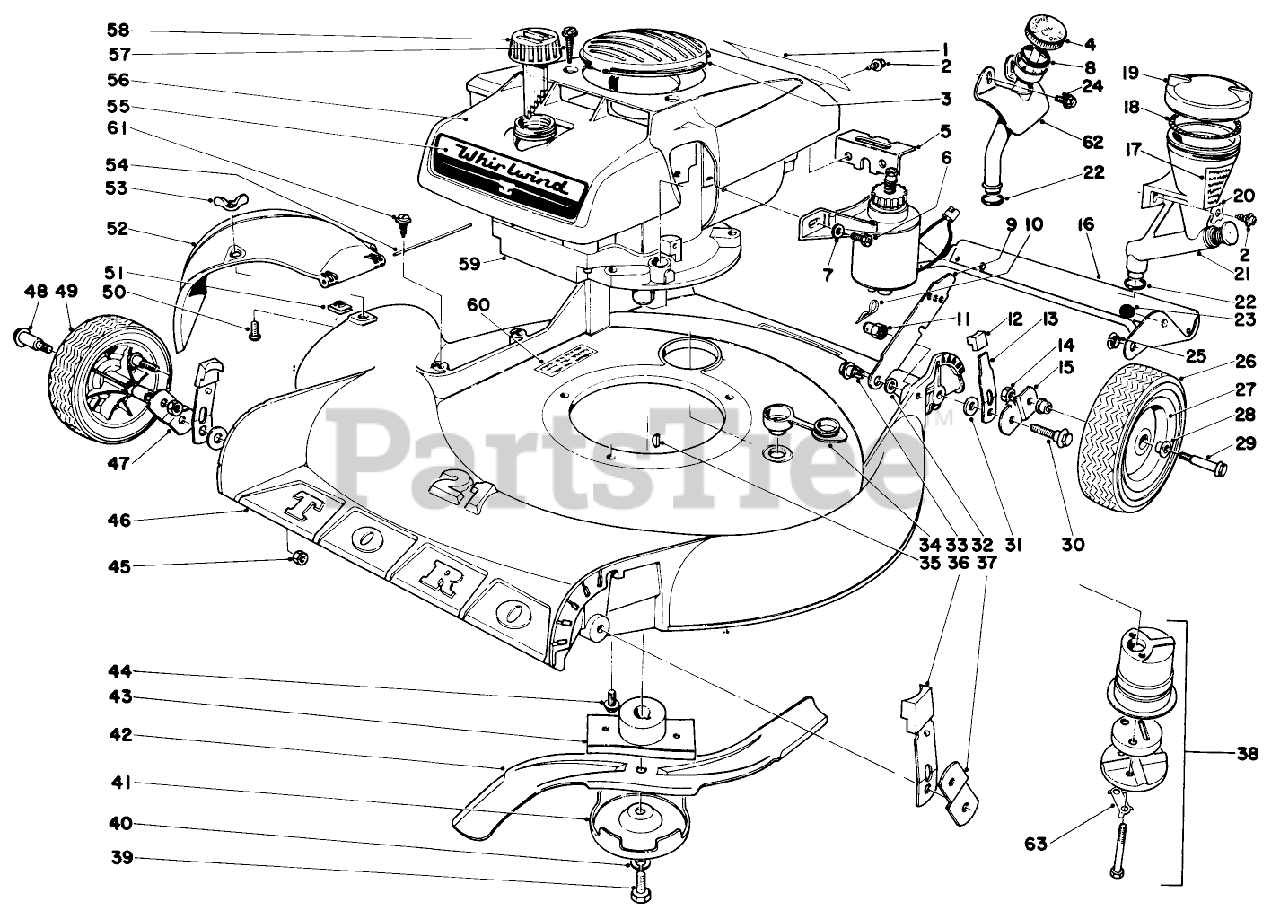

21" WHIRLAND H.P. KEY-LECTRIC Parts Diagram

  • Title

1

Toro 6-1260

Decal,Maintenance

$

$

Currently unavailable

2

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 16

0

3

Toro 5-3516

Insert Shroud

$

$

Currently unavailable

4

Toro 5-4591

Dipstick

$

$

Currently unavailable

5

Toro 5-3307

Bracket

$

$

Currently unavailable

6

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

9

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

10

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

11

Toro 3-6482

Nut
(Superseded to 12-2080)

$22.99

$

Usually ships in 3-6 days

0

12

Toro 5-0656

Knob

$

$

Not available

13

Toro 5-3357

Spring Arm

$

$

Not available

14

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 5-4471

Pivot Arm

$

$

Currently unavailable

16

Toro 4-8889

Safety Shield, Rear

$

$

Currently unavailable

17

Toro 5-2947

Decal, Reservoir

$

$

Currently unavailable

18

Toro 5-1391

"O" Ring

$

$

Not available

19

Toro 3-8429

Cap, Reservoir (Incl. Ref. 18)(Used on Model #19225)

$

$

Currently unavailable

20

Toro 3290-261

Washer

$

$

Currently unavailable

21

Toro 5-0625

Reservoir, Oil

$

$

Not available

22

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 16

0

23

Toro 5-6450

SKID BUTTON

$

$

Not available

24

Toro 32140-66

Screw

$

$

Currently unavailable

25

Toro 256-194

Nyliner

$

$

Currently unavailable

26

Toro 4-2600

8 TIRE

$

$

Not available

27

Toro 3-2563

Wheel Assy. (Incl. Ref. #28)

$0.99

$

In Stock, Qty 20+

0

28

Toro 3-2664

Bushing

$

$

Not available

29

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

30

Toro 5-3351

Pivot Screw
(Superseded to 12-2440)

$22.99

$

Usually ships in 3-6 days

0

31

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

32

Toro 3-3287

SPACER

$5.49

$

In Stock, only 4 left!

0

33

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

34

Toro 5-0655

Washer Plug
(Superseded to 6-4500)

$

$

Not available

35

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

36

Toro 5-0657

ARM KNOB

$

$

Not available

37

Toro 5-4473

Pivot Arm
(Superseded to 20-3170)

$

$

Not available

38

Toro 2-9319

MUFFLER KIT

$

$

Not available

39

Toro 3-5246

SPECIAL SCREW

$

$

Not available

40

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

41

Toro 5-9530

ANTI-SCALP CUP

$

$

Not available

42

Toro 3-6286

Blade

$

$

Not available

43

Toro 3-9810

BLADE RETAINER WA

$

$

Not available

44

Toro 32140-48

Screw
(Superseded to 32144-102)

$3.49

$

In Stock, Qty 5

0

45

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

46

Toro 5-3325

Housing

$

$

Currently unavailable

47

Toro 5-4474

Pivot Arm
(Superseded to 20-3180)

$

$

Not available

48

Toro 3-2652

Bolt

$

$

Not available

49

Toro 5-0660

TIRE

$

$

Not available

50

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

51

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

52

Toro 5-3311

Deflector
(Superseded to 71-8640)

$

$

Not available

53

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

54

Toro 3-2644

HINGE PIN

$

$

Not available

55

Toro 5-3304

Decal

$

$

Currently unavailable

56

Toro 5-9570

Shroud

$

$

Currently unavailable

57

Toro 32104-88

SCREW-HWH

$

$

Not available

58

Toro 5-3460

Gas Cap
(Superseded to 42-0682)

$

$

Not available

59

Toro 221-354

Engine (Used on Model 19444)

$

$

Currently unavailable

Toro 221-329

Engine (Used on Model 19225)

Note: Not illustrated

$

$

Currently unavailable

60

Toro 3-7643

Decal
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

61

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

62

Toro 6-0470

Oiler Tube

$

$

Not available

Toro 4-9439

Loose Parts Kit (Used on Model #19444)

Note: Not illustrated

$

$

Currently unavailable

Toro 4-8019

Loose Parts Kit (Used on Model #19225)

Note: Not illustrated

$

$

Currently unavailable

Toro 5-3556

Starter Rope

Note: Not illustrated

$

$

Currently unavailable

Toro 5-4472

Pivot Arm

Note: Not illustrated

$

$

Not available

Toro 5-9600

Container, Oil

Note: Not illustrated

$

$

Currently unavailable

63

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0
