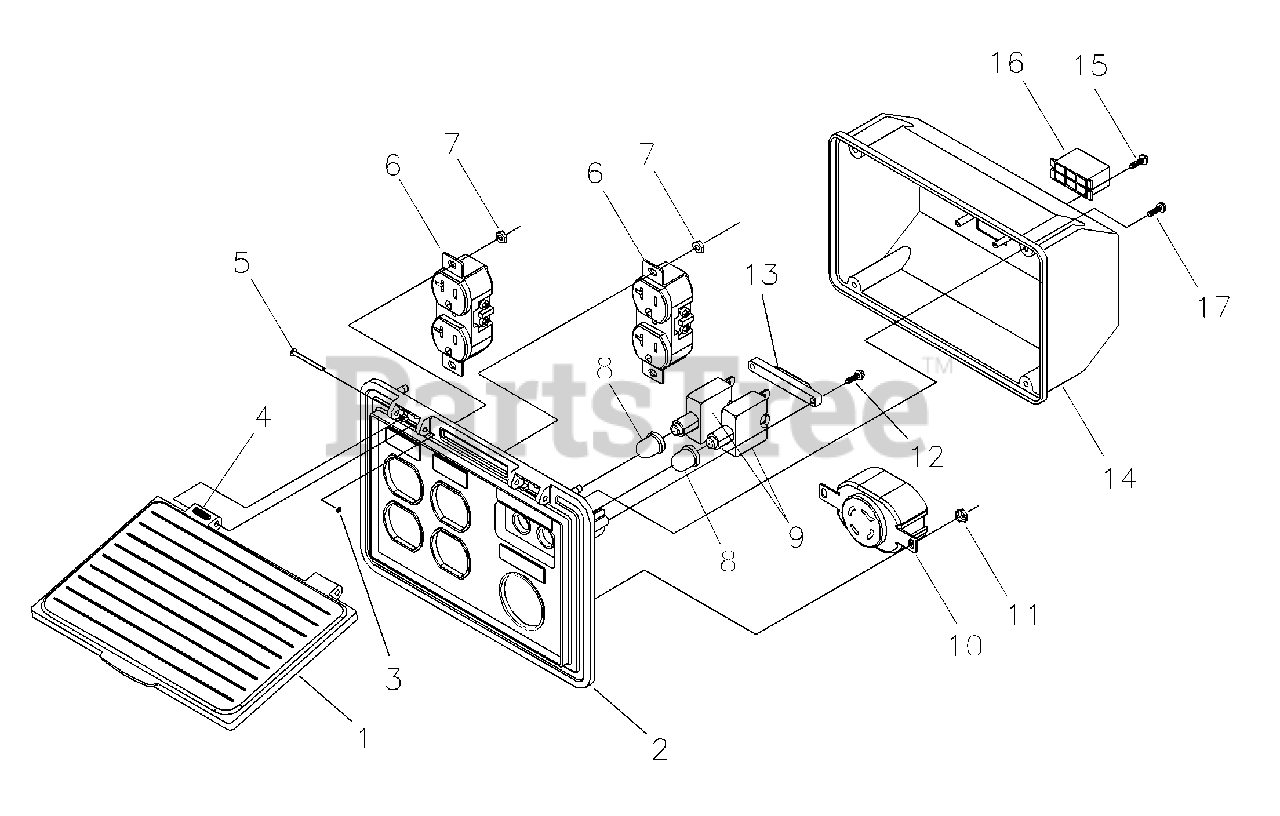

1924-1 - Troy-Bilt 3,550 Watt Portable Generator Control Panel Parts Diagram

3,550 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 188914GS

COVER, Lid, Control Panel

$

$

Not available

2

Briggs & Stratton 188889AGS

CONTROL PANEL, Compact

$14.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189167GS

CLIP, Hinge Pin Retainer

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 189182GS

SPRING, Hinge, Pin

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 189166GS

PIN, Hinge, Cover, Compact

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20A, Duplex

$24.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 189165GS

NUT, Palnut, Pushnut

$3.49

$

In Stock, only 2 left!

0

8

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 75207DGS

BREAKER, Circuit

$13.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 68867GS

OUTLET, 120/240V Locking, 20A

$46.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 189164GS

NUT, Palnut, Pushnut

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84543CGS

SCREW

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 188890GS

COVER, Back, Control Panel

$15.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 82308GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192241GS

SCREW

$3.99

$

Usually ships in 2-12 days

0
