1924-2 - Troy-Bilt 3,550 Watt Portable Generator AC Control Panel Parts Diagram

3,550 Watt Portable Generator

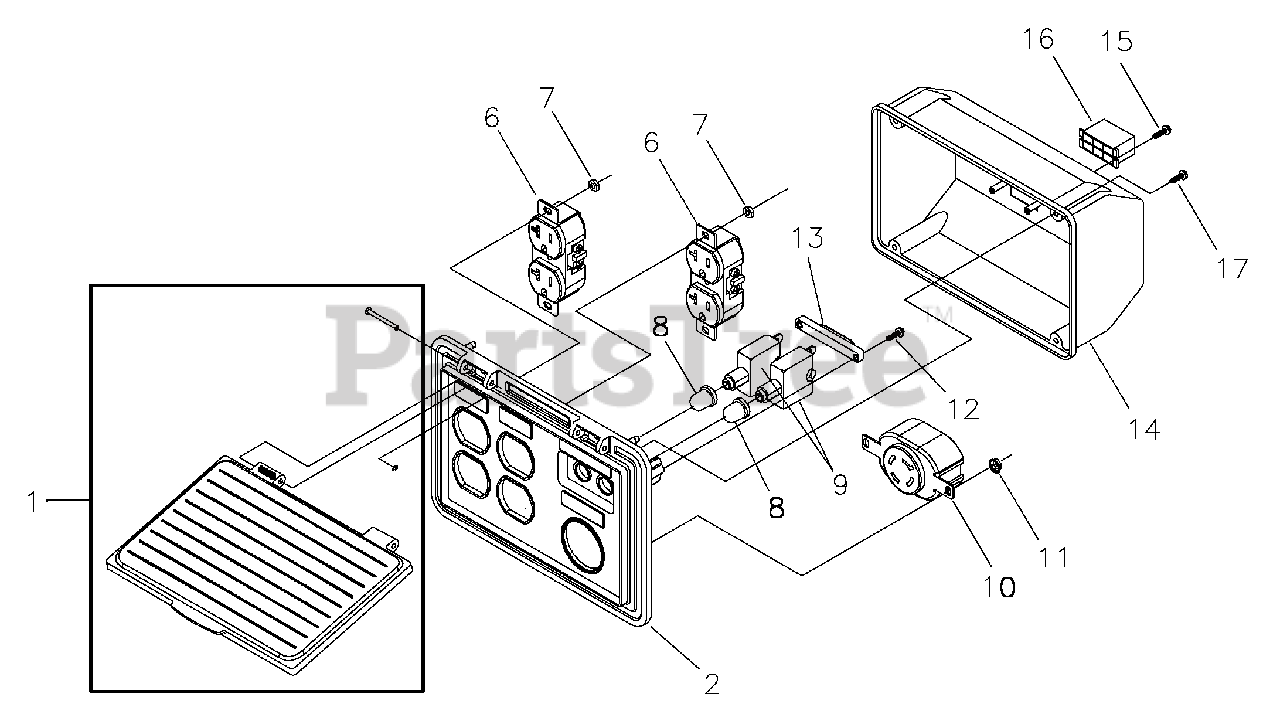

AC Control Panel Parts Diagram

  • Title
1

Briggs & Stratton 195112GS

KIT, Cover Control Panel

$

$

Not available

2

Briggs & Stratton 188889AGS

CONTROL PANEL, Compact

$14.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759GS

OUTLET, 120V, 20Amp, Duplex

$24.99

$

In Stock, only 4 left!

0

7

-----

NUT, Palnut, Pushnut, 5/32

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 84198GS

CAP, Circuit Breaker

$4.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 75207DGS

BREAKER, Circuit

$13.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 68867GS

OUTLET, 120/240V Locking, 20A

$46.99

$

Usually ships in 2-12 days

0

11

-----

NUT, Palnut, Pushnut, 3/16

Note: (Purchase locally)

$

$

Not available

12

-----

PPPHS, M3 - 0.5 x 18

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton 93857GS

BAR, Retaining

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 188890GS

COVER, Back, Control Panel

$15.99

$

Usually ships in 2-12 days

0

15

-----

SCREW, 3 x 18,Tapping

Note: (Purchase locally)

$

$

Not available

16

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

Usually ships in 2-12 days

0

17

-----

SCREW, 3.5 x 14,Tapping

Note: (Purchase locally)

$

$

Not available
