1924RX (1695805) - Snapper 24" Snow Thrower, 9hp (2009) Auger Housing Group Parts Diagram

24" Snow Thrower, 9hp

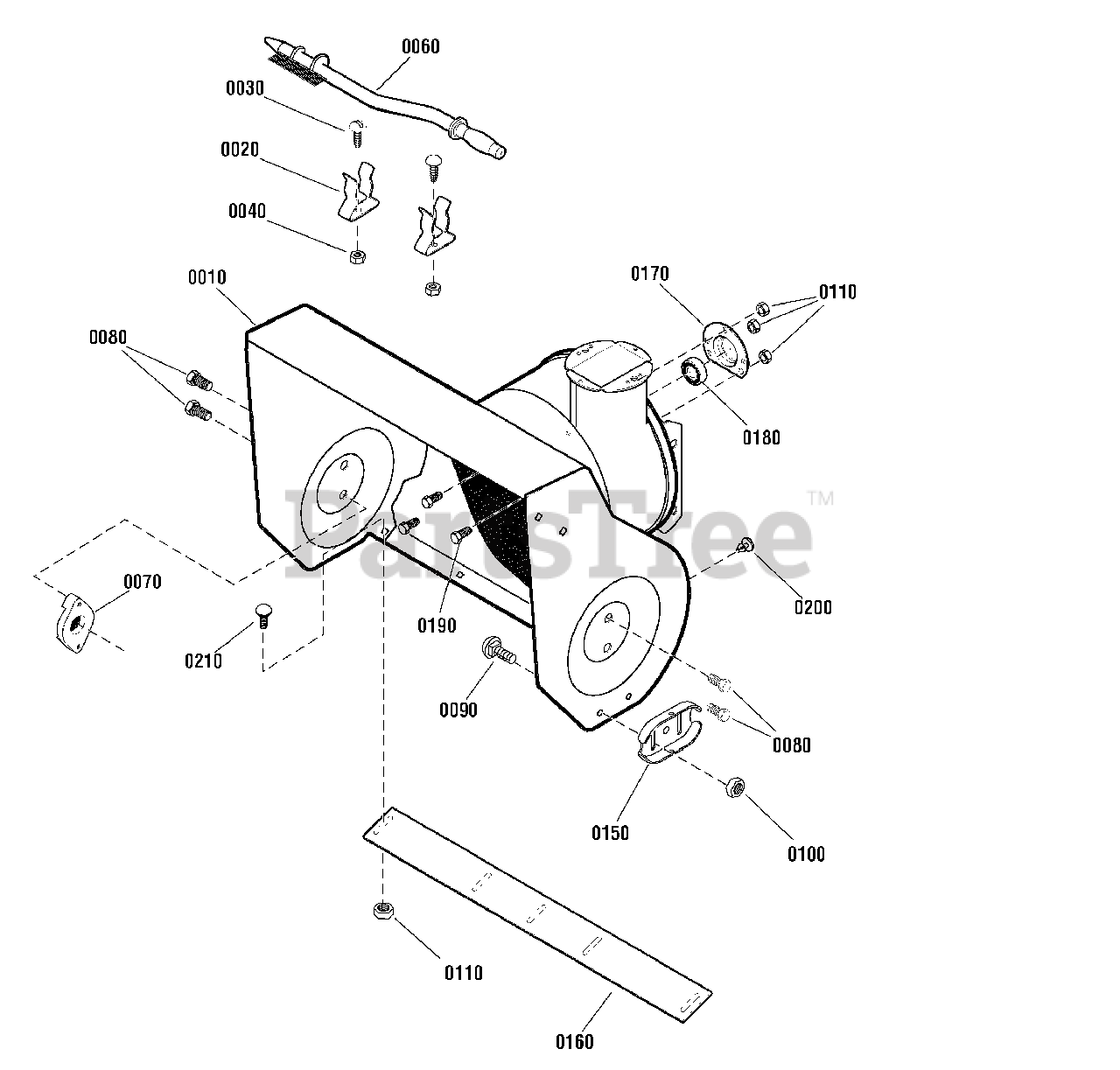

Auger Housing Group Parts Diagram

  • Title

0010

Snapper 1687511

AUGER HOUSING ASSEMBLY, 24"
(Superseded to 1687511YP)

$473.99

$

Usually ships in 2-12 days

0

0020

Snapper 1736620

CLIP, Retainer
(Superseded to 1736620YP)

$6.49

$

In Stock, only 1 left!

0

0030

Snapper 1960569

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 1960569SM)

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 722401

NUT, Nylock, 10 x 26
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0060

Snapper 1736094

BRUSH, Cleanout
(Superseded to 1736094YP)

$34.99

$

In Stock, only 2 left!

0

0070

Snapper 724427

BEARING, Auger Shaft
(Superseded to 53757MA)

$9.99

$

In Stock, only 2 left!

0

0080

Snapper 722839

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 7091547

BOLT, Carriage, 3/8-16 x 3/4, GR5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 7091619

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Snapper 725273

NUT, Hex Flange, Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Snapper 1727854A

SHOE, Skid, Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, only 3 left!

0

0160

Snapper 1738301A

BLADE, Scraper, 24"
(Superseded to 1738301AYP)

$

$

Not available

0170

Snapper 724712

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Snapper 1705897

BEARING, Ball
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

0190

Snapper 720018

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

0200

Snapper 725521

PLUG, Panel
(Superseded to 760040MA)

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper 7090799

BOLT, Carriage, 3/8-16 x 5/8, GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0
