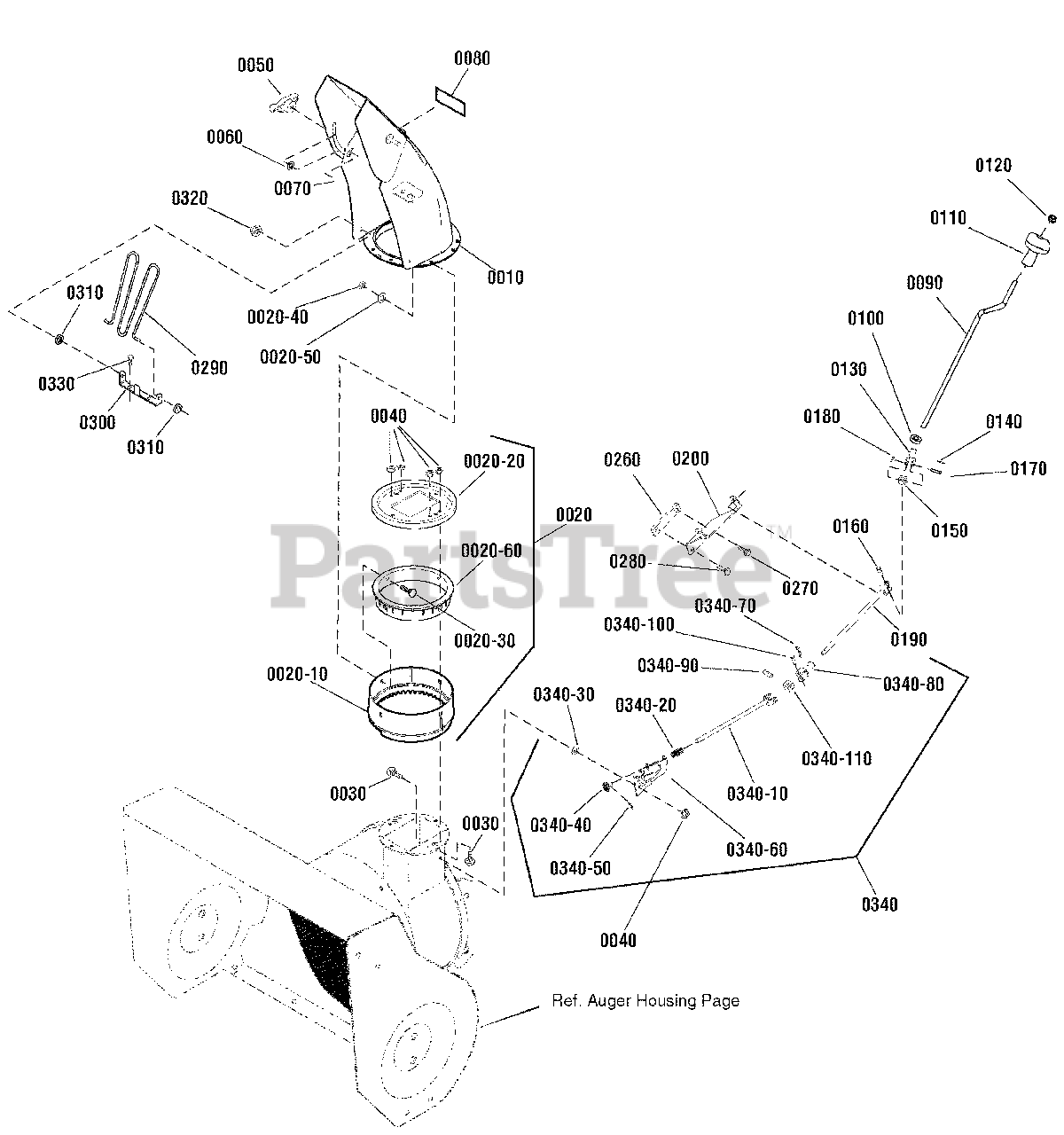

1924RX (1695805) - Snapper 24" Snow Thrower, 9hp (2009) Chute & Rotation Group - Left Side Crank Parts Diagram

24" Snow Thrower, 9hp

Chute & Rotation Group - Left Side Crank Parts Diagram

  • Title

0010

Snapper 1736380H

CHUTE ASSEMBLY, Short
(Superseded to 1736380HYP)

$175.99

$

Usually ships in 2-12 days

0

0020

CHUTE RING ASSEMBLY (Not Available)

Note: (Incl. Ref. Nos. 0020-10, 0020-20, 0220-30, 0020-40, 0020-50 & 0020-60)

$

$

Not available

0020-10

Snapper 722138

RING, Outer Chute
(Superseded to 1501282MA)

$26.99

$

Usually ships in 2-12 days

0

0020-20

Snapper 722340

COLLAR, Chute Rotation
(Superseded to 1501932YZMA)

$30.99

$

Usually ships in 2-12 days

0

0020-30

Snapper 722899

BOLT, Carriage, 5/16-18 x 1
(Superseded to 704217)

$

$

Not available

0020-40

Snapper 725321

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0020-50

Snapper 725331

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0020-60

Snapper 1741917

RING, Inner Chute
(Superseded to 1741917YP)

$23.99

$

Usually ships in 2-12 days

0

0030

Snapper 720386

BOLT, Carriage, 1/4-20 x 3/4

$

$

Not available

0040

Snapper 722400

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 7035744

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0060

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.99

$

In Stock, only 2 left!

0

0070

Snapper 720064

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, only 3 left!

0

0080

Snapper 1733601

DECAL, Hinge
(Superseded to 1733601SM)

$12.99

$

In Stock, only 1 left!

0

0090

Snapper 1715658

ROD, Chute Control
(Superseded to 1715658SM)

$29.99

$

Usually ships in 2-12 days

0

0100

Snapper 1667588

BUSHING, 3/8 ID x 7/16 OD x 3/16 Lg
(Superseded to 1667588SM)

$6.49

$

In Stock, Qty 7

0

0110

Snapper 1714084

KNOB, Spinner, 3/8 ID, 2-3/16 OD, 2-1/2 Lg
(Superseded to 1714084SM)

$13.99

$

In Stock, Qty 10

0

0120

Snapper 1960093

PUSHNUT, 3/8 Dia.
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 1733611

ASSEMBLY, Yoke Tube, Chute
(Superseded to 1733611SM)

$37.99

$

In Stock, only 1 left!

0

0140

Snapper 722139

PIN, Hair, Chute Gear
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.99

$

In Stock, Qty 8

0

0160

Snapper 724564

PIN, Universal Joint, 3/8 x 1
(Superseded to 578060MA)

$7.99

$

In Stock, Qty 9

0

0170

Snapper 724579

PIN, Clevis, 1/4D x 1-3/16
(Superseded to 578309MA)

$5.99

$

In Stock, Qty 6

0

0180

Snapper 724605

PIN, Cotter, 5/8 x 1/2
(Superseded to 579493MA)

$4.49

$

In Stock, Qty 10

0

0190

Snapper 1736538

ROD & YOKE ASSEMBLY, Chute
(Superseded to 1736538YP)

$36.99

$

Usually ships in 2-12 days

0

0200

Snapper 1736537A

SUPPORT, Chute Rod
(Superseded to 1736537AYP)

$19.99

$

Usually ships in 2-12 days

0

0260

Snapper 1733379A

SPACER, Support, Chute Rod
(Superseded to 1733379ASM)

$12.99

$

Usually ships in 2-12 days

0

0270

Snapper 1921977

CAPSCREW, Hex Flange Head, 5/16-18 x 1-1/4, G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 8

0

0280

Snapper 1960373

CAPSCREW, Hex Washer, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0290

Snapper 1733475

GUARD, Chute Rod
(Superseded to 1733475SM)

$22.99

$

Usually ships in 2-12 days

0

0300

Snapper 1737683

BRACKET, Chute Guard
(Superseded to 1737683AYP)

$18.99

$

Usually ships in 2-12 days

0

0310

Snapper 1738174

GROMMET, Chute Guard Bracket
(Superseded to 1738174YP)

$4.49

$

Usually ships in 2-12 days

0

0320

Snapper 1960140

PUSHNUT, 3/16 Dia.
(Superseded to 1960140SM)

$3.49

$

Usually ships in 2-12 days

0

0330

Snapper 1925003

CAPSCREW, Hex-Washer, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0340

Snapper 726160

GEAR & YOKE ROD ASSEMBLY
(Superseded to 1501534MA)

Note: (Incl. Ref. Nos. 0340-10, 0340-20, 0340-30, 0340-40, 0340-50, 0340-60, 0340-70, 0340-80, 0340-90, 0340-100 & 0340-110)

$

$

Not available

0340-10

Snapper 722202

ASSEMBLY, Rod & Yoke
(Superseded to 1501533YZMA)

$12.99

$

In Stock, only 1 left!

0

0340-20

Snapper 722414

SPRING, Compression
(Superseded to 164X37MA)

$9.99

$

In Stock, only 1 left!

0

0340-30

Snapper 720164

WASHER, Flat, 3/8
(Superseded to 017X48MA)

$8.99

$

Usually ships in 2-12 days

0

0340-40

Snapper 722073

GEAR, 9 Tooth
(Superseded to 1501067MA)

$18.99

$

In Stock, only 3 left!

0

0340-50

Snapper 722139

PIN, Hair, Chute Gear
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

0340-60

Snapper 1740591A

BRACKET, Chute Gear
(Superseded to 1740591AYP)

$23.99

$

Usually ships in 2-12 days

0

0340-70

Snapper 724605

PIN, Cotter, 5/8 x 1/2
(Superseded to 579493MA)

$4.49

$

In Stock, Qty 10

0

0340-80

Snapper 722076

ASSEMBLY, Yoke Tube
(Superseded to 1501075YZMA)

$10.99

$

Usually ships in 2-12 days

0

0340-90

Snapper 724564

PIN, Universal Joint, 3/8 x 1
(Superseded to 578060MA)

$7.99

$

In Stock, Qty 9

0

0340-100

Snapper 724579

PIN, Clevis, 1/4 X 1-3/16
(Superseded to 578309MA)

$5.99

$

In Stock, Qty 6

0

0340-110

Snapper 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.99

$

In Stock, Qty 8

0
