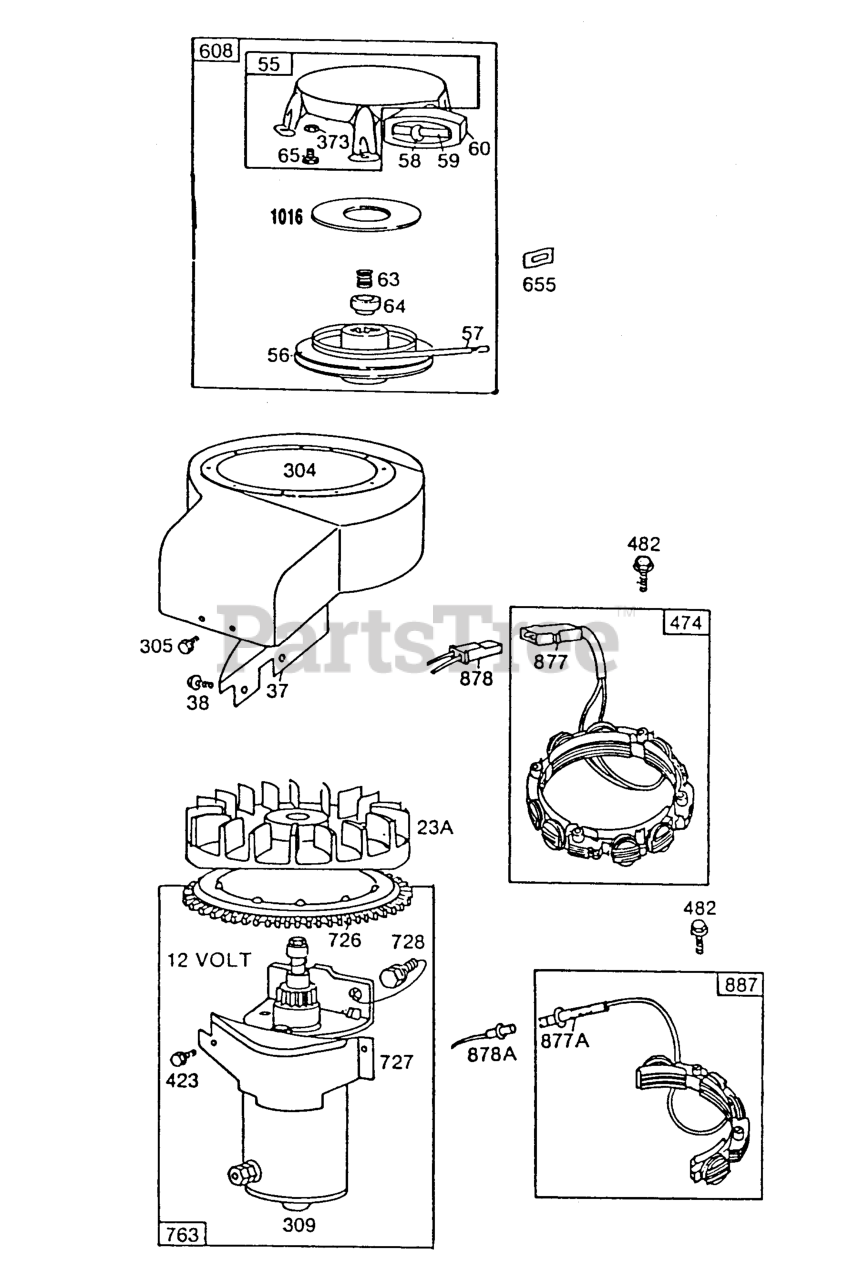

192705-0133-01 - Briggs & Stratton Vertical Engine Blower Hsg,Rewind,Alternator Parts Diagram

Vertical Engine

Blower Hsg,Rewind,Alternator Parts Diagram

  • Title

23A

Briggs & Stratton 392034

Flywheel/Gear Assy For Engines Without Alternator (Aluminum Ring Gear)

Note: For use only on electric starter engines WITHOUT ALTERNATOR (Includes aluminum ring gear.) For use only with starter motors with Plastic Drive Gear.

$

$

Not available

23A

Briggs & Stratton 391983

Flywheel/Gear Assy (For Engines With Alternator)

Note: For use on engines WITH ALTERNATOR (Includes aluminum ring gear.) For use only with starter motors with Plastic Drive Gear.

$

$

Not available

37

Briggs & Stratton 222475

Guard-Flywheel
(Superseded to 690411)

$

$

Not available

38

Briggs & Stratton 93777

Screw, Sem Hex Head
(Superseded to 690364)

$4.49

$

In Stock, only 2 left!

0

55

Briggs & Stratton 393576

Housing-Rew Str

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: Includes 63" Rope; if longer Rope is required, Order Rope No. 66894 and cut to required length.

$15.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$16.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

Note: if longer Rope is needed, Order No. 66894 and cut to required length.

$8.99

$

In Stock, Qty 8

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$4.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$6.49

$

In Stock, Qty 16

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.99

$

In Stock, only 2 left!

0

64

Briggs & Stratton 230543

Adapter-Spring
(Superseded to 691920)

$12.99

$

In Stock, only 3 left!

0

65

Briggs & Stratton 94128

Screw-Stamped Steel Housing Mtg. Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 15

0

304

Briggs & Stratton 491408

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$6.49

$

In Stock, Qty 20+

0

309

Briggs & Stratton 394805

Motor/Drive Assy (For 3-1/16" Housing Length)
(Superseded to 497595)

$115.99

$

In Stock, Qty 20+

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$4.49

$

In Stock, Qty 11

0

423

Briggs & Stratton 93984

Screw, Shoulder Hex
(Superseded to 691002)

$8.99

$

In Stock, only 2 left!

0

474

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

$94.99

$

In Stock, only 2 left!

0

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$

$

Not available

726

Briggs & Stratton 392134

Gear, Ring Kit
(Superseded to 696537)

$55.99

$

In Stock, Qty 16

0

727

Briggs & Stratton 395405

Cover-Str Drive

$

$

Not available

728

Briggs & Stratton 93523

Screw, Sem Hex Head (5/16-18 X 11/16" Long)
(Superseded to 691058)

$6.49

$

In Stock, Qty 9

0

728

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$6.49

$

In Stock, Qty 9

0

763

Briggs & Stratton 394952

Starter Kit (12 Volt Gear Drive)

$

$

Not available

877A

Briggs & Stratton 393814

Alternator Connecto (Dc Only)

$19.99

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$

$

Not available

878A

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$18.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$37.99

$

In Stock, only 2 left!

0

887

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$137.99

$

In Stock, only 1 left!

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, only 2 left!

0
