19273 - Toro Guardian Walk-Behind Mower (SN: 003000001 - 003999999) (1973) ENGINE ASSEMBLY MODEL 19173 Parts Diagram

Guardian Walk-Behind Mower

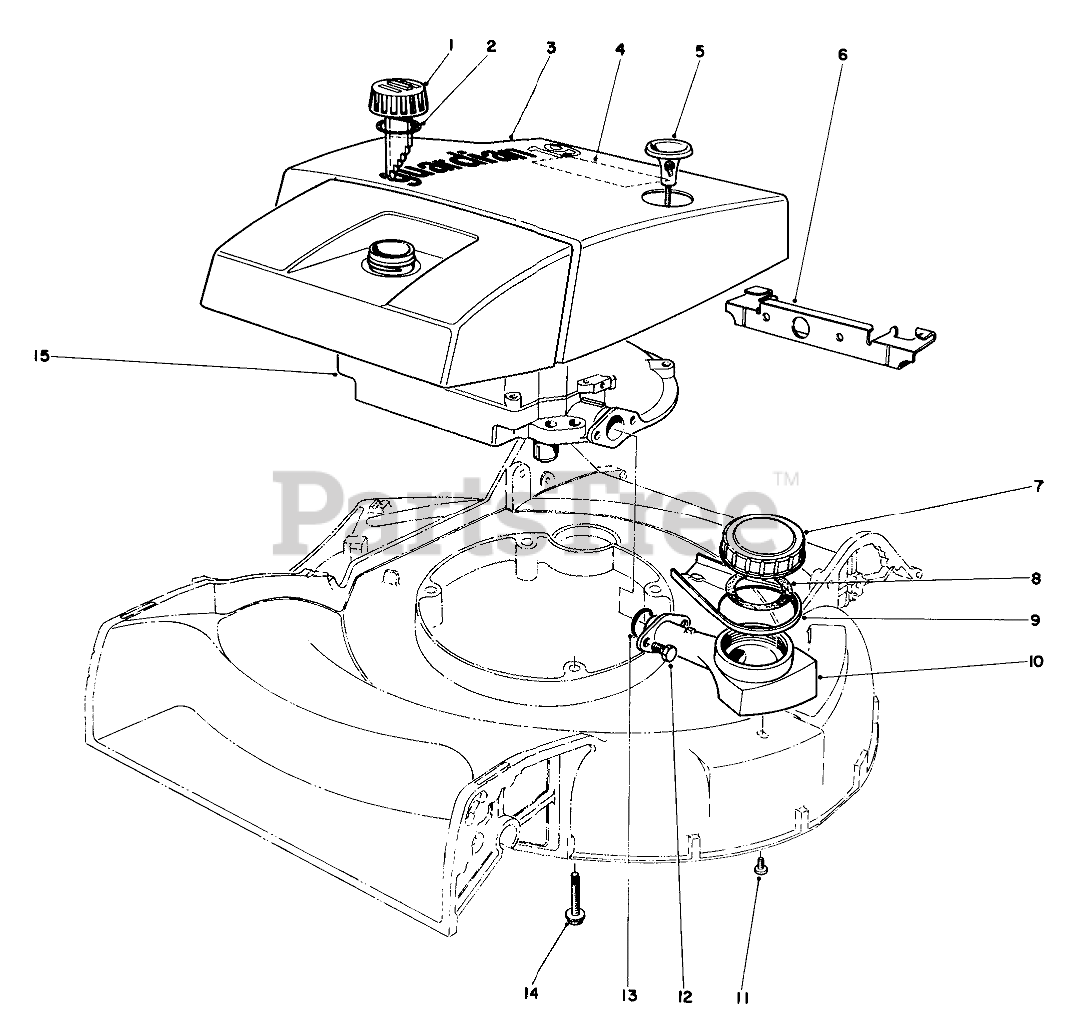

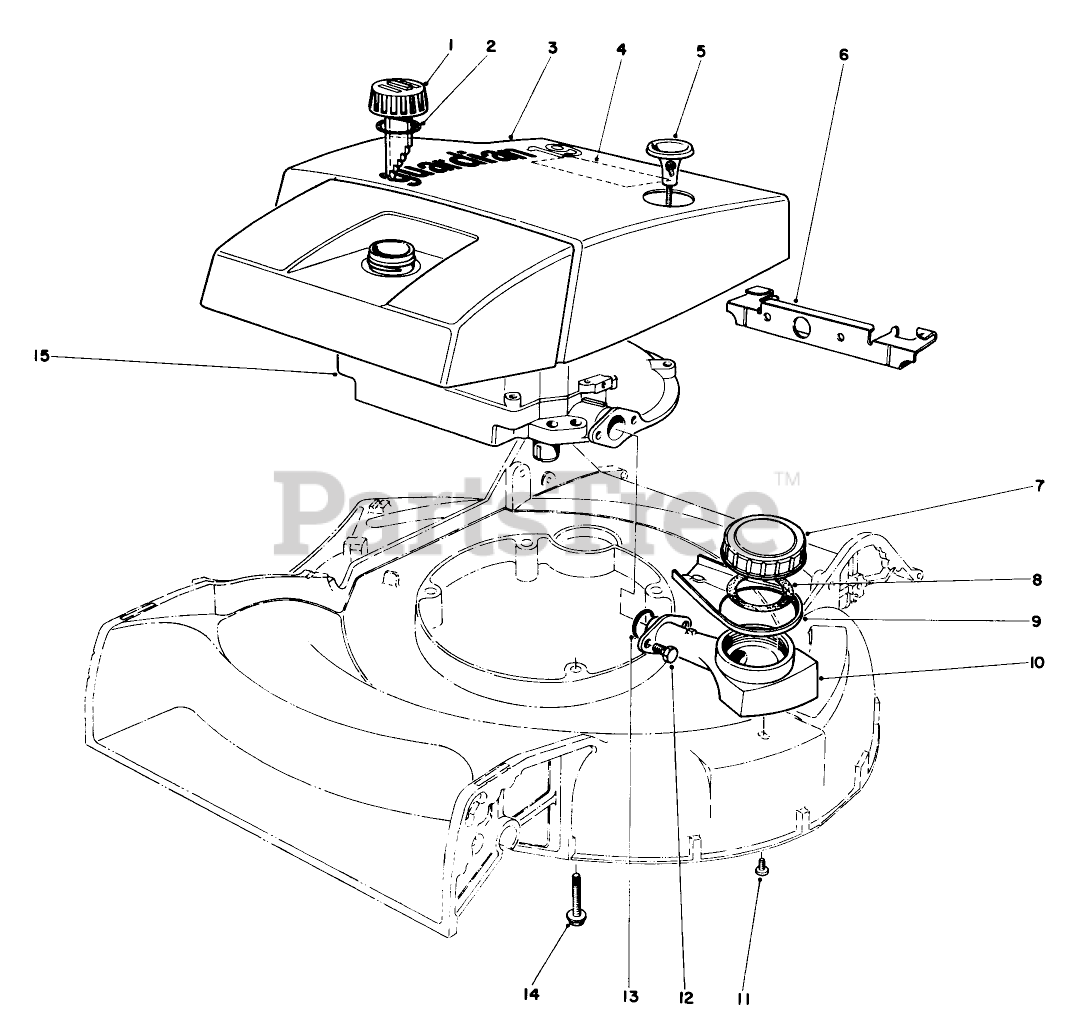

ENGINE ASSEMBLY MODEL 19173 Parts Diagram

  • Title

1

Toro 12-0580

Gas Cap (Incl. Ref. #2)
(Superseded to 42-0682)

$

$

Not available

2

Toro 5-2044

Gasket

$

$

Currently unavailable

3

Toro 17-4370

Shroud

$

$

Currently unavailable

4

Toro 8-5620

Decal-Maintenance

$

$

Currently unavailable

5

Toro 12-2210

Rope Handle

$

$

Not available

6

Toro 11-9690

Shroud Bracket

$

$

Currently unavailable

7

Toro 8-5170

Oil Gauge Cap

$

$

Not available

8

Toro 8-5150

VISUAL OILER GASKET

$

$

Not available

9

Toro 8-5590

Spout

$

$

Not available

10

Toro 8-5630

Oil Gauge

$

$

Currently unavailable

11

Toro 32140-77

Screw
(Superseded to 32104-101)

$

$

Not available

12

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

13

Toro 237-77

O RING

$2.49

$

Usually ships in 3-6 days

0

14

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

15

Toro 221-443

Engine

$

$

Currently unavailable
