1930 M (UT-26002) - Green Machine String Trimmer Driveshaft and Handles Parts Diagram

String Trimmer

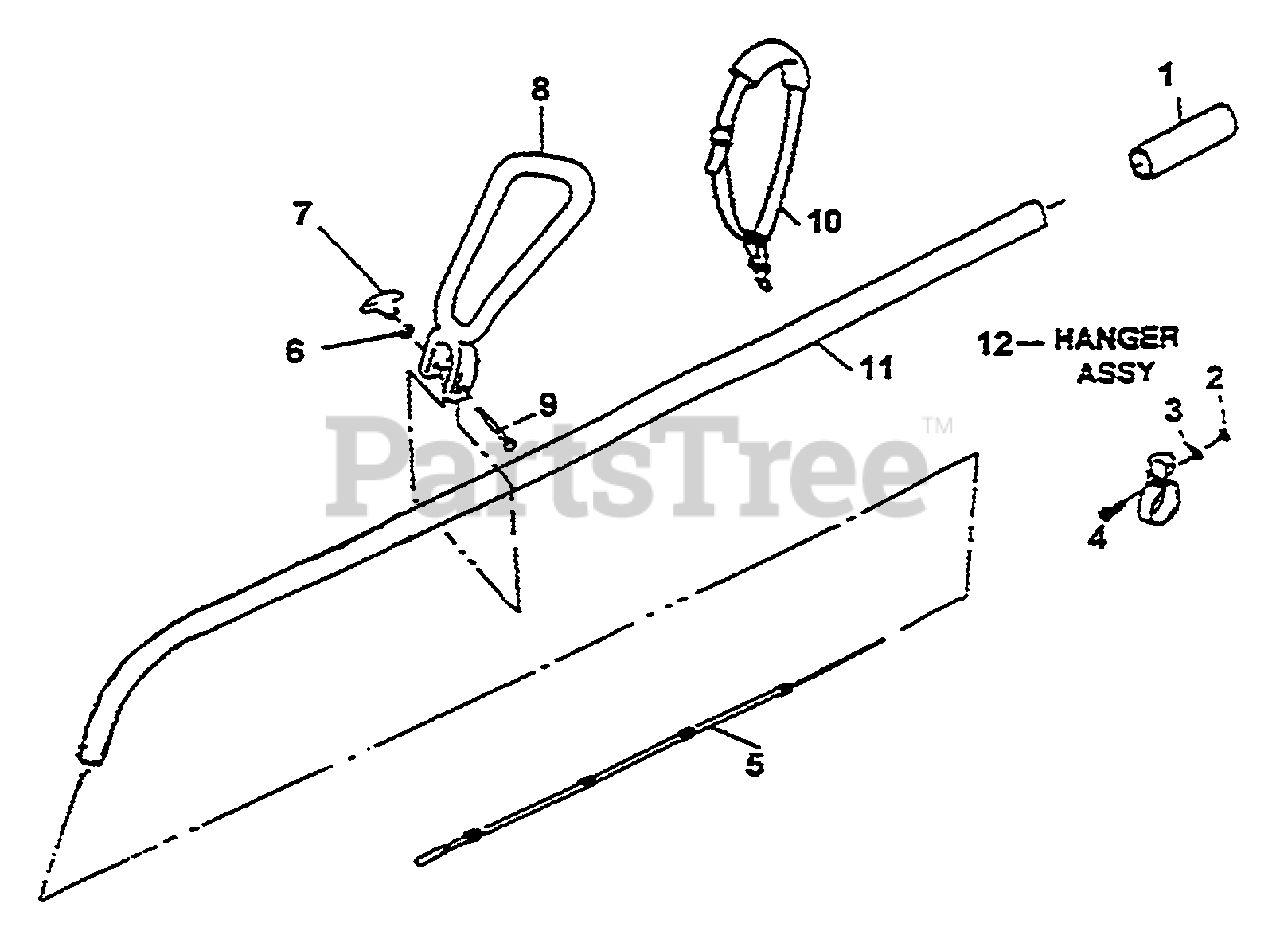

Driveshaft and Handles Parts Diagram

  • Title

1

Homelite GM300038

FOAM GRIP

$

$

Not available

2

Homelite GM050003

NUT

$

$

Not available

3

Homelite GM041101

WASHER

$

$

Not available

4

Homelite GM010002

SCREW

$1.49

$

Usually ships in 3-7 days

0

5

Homelite GM170095

FLEX SHAFT

$

$

Currently unavailable

6

Homelite GM040016

WASHER

$

$

Not available

7

Homelite GM285204

KNOB
(Superseded to UP04138)

$

$

Not available

8

Homelite GM235209

ASSIST HANDLE
(Superseded to A08329)

$

$

Not available

9

Homelite GM257606

BOLT
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

10

Homelite GM257601

HARNESS

$

$

Not available

11

Homelite GM193095

TUBE ASSY

$

$

Currently unavailable

12

Homelite GM300245

HANGER ASSY
(Superseded to UP06800)

$

$

Not available
