1933-1 - Generac PRO 6,500 Watt Portable Generator, CSA Compliant Control Panel Parts Diagram

PRO 6,500 Watt Portable Generator, CSA Compliant

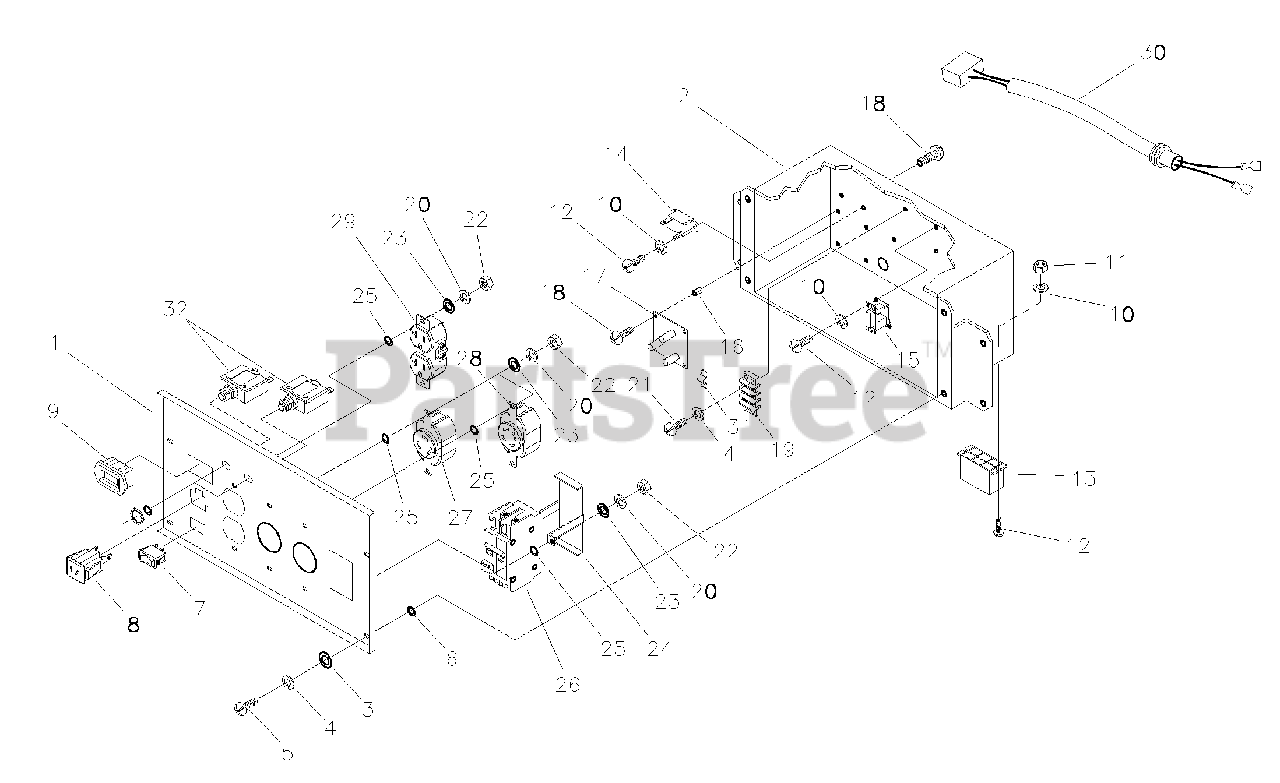

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton B192833GS

PANEL, Control

$251.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B192836GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

3

WASHER, Flat, #10 - M5

Note: Purchase locally

$

$

Not available

4

LOCKWASHER, M5

Note: Purchase locally

$

$

Not available

5

PPHMS, M5 - 0.8 x 12

Note: Purchase locally

$

$

Not available

6

WASHER, M6 - 1/4, Int. Shakeproof

Note: Purchase locally

$

$

Not available

7

Briggs & Stratton 82538GS

SWITCH, Rocker

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90418GS

OUTLET, 12VDC, Snap

$

$

Not available

9

Briggs & Stratton 202602GS

HOUR METER

$97.99

$

Usually ships in 2-12 days

0

10

LOCKWASHER, M3

Note: Purchase locally

$

$

Not available

11

NUT, M3 - 0.5

Note: Purchase locally

$

$

Not available

12

PHMS, M3 - 0.5 x 10

Note: Purchase locally

$

$

Not available

13

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 87962GS

BREAKER, Circuit, 10A, 12V

$29.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 64525GS

STANDOFF, Hex

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 193362GS

PCB, Idle Control

$164.99

$

Usually ships in 2-12 days

0

18

PHTS, #6-32 x 3/8

Note: Purchase locally

$

$

Not available

19

Briggs & Stratton 193077GS

STRIP, Terminal

$21.99

$

Usually ships in 2-12 days

0

20

LOCKWASHER, M4

Note: Purchase locally

$

$

Not available

21

PPHMS, M5 - 0.8 x 20

Note: Purchase locally

$

$

Not available

22

NUT, M4 - 0.7

Note: Purchase locally

$

$

Not available

23

WASHER, Flat, M4

Note: Purchase locally

$

$

Not available

24

Briggs & Stratton 192931GS

BRACKET, GFCI Breaker

$46.99

$

Usually ships in 2-12 days

0

25

WASHER, Shakeproof, Int. #8

Note: Purchase locally

$

$

Not available

26

Briggs & Stratton 192828DGS

BREAKER, Circuit, GFCI, 30A

$215.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68868GS

OUTLET, 120V, 30A
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 68759GS

OUTLET, 120V, 20A, Duplex

$24.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 193036GS

HARNESS, Wire

$54.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 193095GS

JUMPER, Terminal Block

$13.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 202394GS

BREAKER, Circuit, 20A w/hardware

$33.99

$

In Stock, only 2 left!

0
