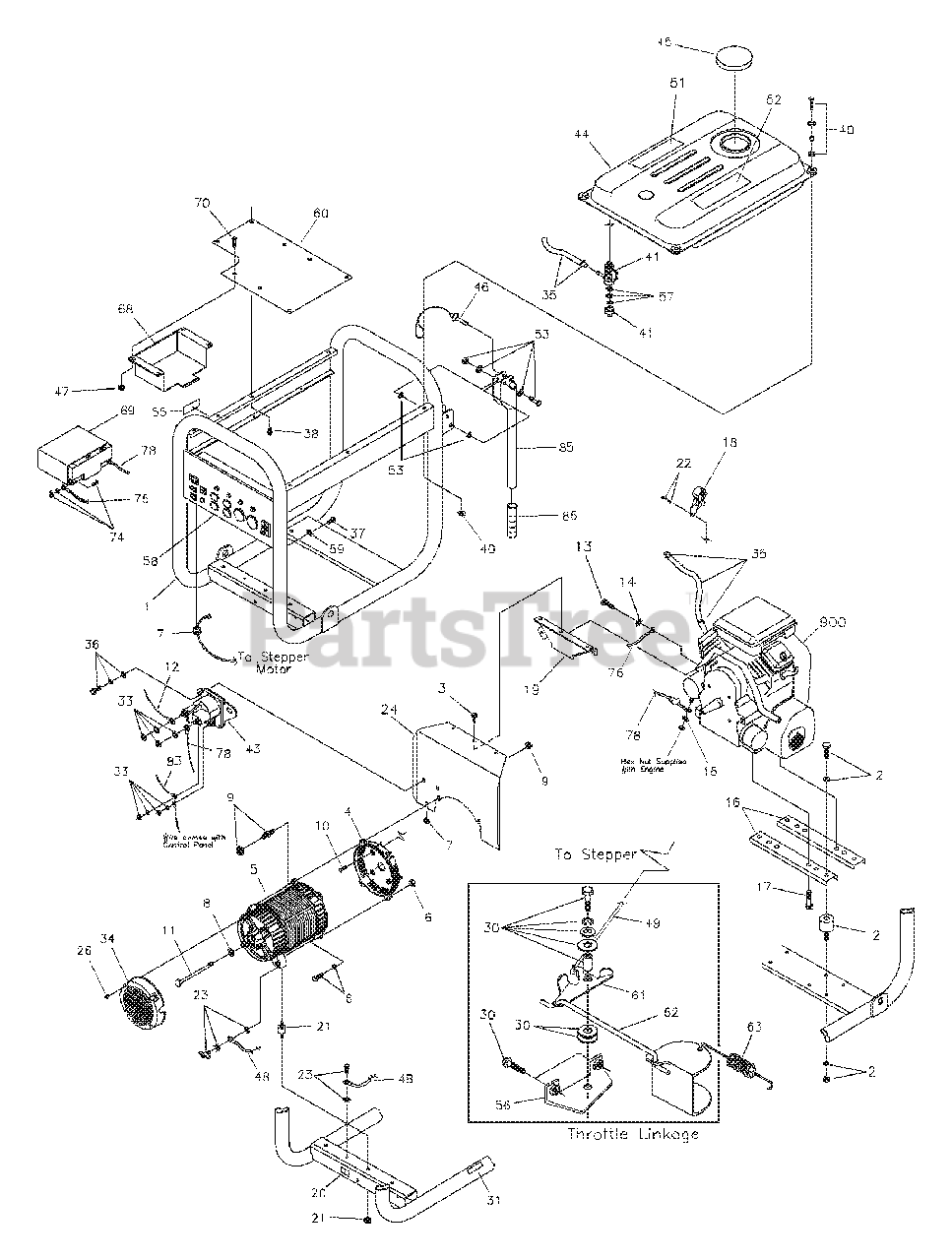

1934-1 - Briggs & Stratton PRO 8,000 Watt Portable Generator Main Unit Parts Diagram

PRO 8,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B193230GS

CRADLE, Gen Black

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194209GS

KIT, Engine Support Hardware

$11.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY,Alternator

Note: (see "Altenator")

$

$

Not available

6

Briggs & Stratton 194151GS

KIT,Adapter Mounting Hardware

$22.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194208GS

KIT,Alt to Heat Shield Hardware

$20.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SCREW, SBHC, 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 25254GS

HHCS 5/16-24 x 9-7/8

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302BGS

ASSY,Wire

$17.99

$

Usually ships in 2-12 days

0

13

HHCS, M8 - 1.25 x 16

Note: (Purchase Locally)

$

$

Not available

14

WASHER, Shakeproof, Ext. 5/16

Note: (Purchase Locally)

$

$

Not available

15

WASHER, Shakeproof, Ext. M6

Note: (Purchase Locally)

$

$

Not available

16

Briggs & Stratton B77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75246GS

TAPTITE, 3/8 - 16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 96867GS

ASSY, Stepper Motor

$261.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton J93074GS

SUPPORT, Heatshield

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194155GS

KIT,Vibration Mount

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 194542GS

KIT, Stepper Motor Hardware

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 193646GS

KIT, Grounding Hardware

$5.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194950GS

ASSY, Heat Shield

$76.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 194543GS

KIT,Throttle Linkage Hardware

$25.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 194211GS

KIT, Starter Contact Hardware

$4.49

$

In Stock, only 1 left!

0

34

Briggs & Stratton 186347GS

COVER, RBC Plastic
(Superseded to 195422GS)

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 194214GS

KIT, Hose, Fuel
(Superseded to 395051R)

$77.99

$

In Stock, Qty 18

0

36

Briggs & Stratton 194210GS

KIT, Starter Mounting Hardware

$4.99

$

Usually ships in 2-12 days

0

37

SCREW, Self Driller, 12-14 x 7/8

Note: (Purchase Locally)

$

$

Not available

38

Briggs & Stratton 192376GS

SCREW, 12 - 24 x 1/2 Thd Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194212GS

KIT, Fuel Tank Hardware

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

43

Briggs & Stratton B4769GS

CONTACTOR, Starter

$29.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 193299GS

ASSY,Tank Fuel

Note: (Includes Items 41, 51, 52 & 57)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP,Tank Fuel

$20.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

NUT, Lock, M6

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95920GS

LINKAGE, Stepper Motor to Bell Crank

$16.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 93826GS

DECAL, Operating Instructions

$14.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Folddown Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 191435GS

DECAL, Fuel Shutoff

$8.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 95349GS

PLATE,Adjust

$7.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

58

Briggs & Stratton 194949GS

ASSY, Control Panel

Note: (see "Control Panel")

$744.99

$

Usually ships in 2-12 days

0

59

WASHER, M6 - 1/4, Int. Shakeproof

Note: (Purchase Locally)

$

$

Not available

60

Briggs & Stratton J193512GS

SUPPORT,Tray Battery

$81.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95348GS

BRACKET, Bell Crank

$7.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 95921GS

LINKAGE, Bell Crank to Throttle

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96717GS

SPRING

$58.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton J192985GS

TRAY, Battery
(Superseded to 192985GS)

$81.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton B4489GS

BATTERY
(Superseded to 193043GS)

$137.99

$

In Stock, only 4 left!

0

70

HHCS, M6 -1.0 x 12

Note: (Purchase Locally)

$

$

Not available

74

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939GGS

ASSY,Wire

$12.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302EGS

ASSY,Wire

$18.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 192403YGS

ASSY,Wire

$1.49

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B193200GS

ASSY, Fold Down Handle

Note: (Includes Item 86)

$39.99

$

In Stock, Qty 6

0

86

Briggs & Stratton 189718GS

GRIP, Handle
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 194947GS

MANUAL, Owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS5375

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

CABLES, Battery Charge

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193662GS

KIT, Decal Service

Note: Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 120/240V, 30A 4P

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806GS

PLUG, 125V, 30A 3P
(Superseded to 100523GS)

Note: Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193454GS

SHEET, Instruction,Wheel Kit

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 690661

SCREW,Tapping Hex

Note: Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 392390

ARRESTER, Spark
(Superseded to 794945)

Note: Not Illustrated

$53.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692099

ASSY, Muffler

Note: Not Illustrated

$184.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 691513

BRACKET, Muffler

Note: Not Illustrated

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692056

SCREW

Note: Not Illustrated

$5.99

$

In Stock, Qty 6

0

Briggs & Stratton 690898

CLAMP, Muffler

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692539

SCREW
(Superseded to 841233)

Note: Not Illustrated

$3.49

$

In Stock, Qty 6

0
