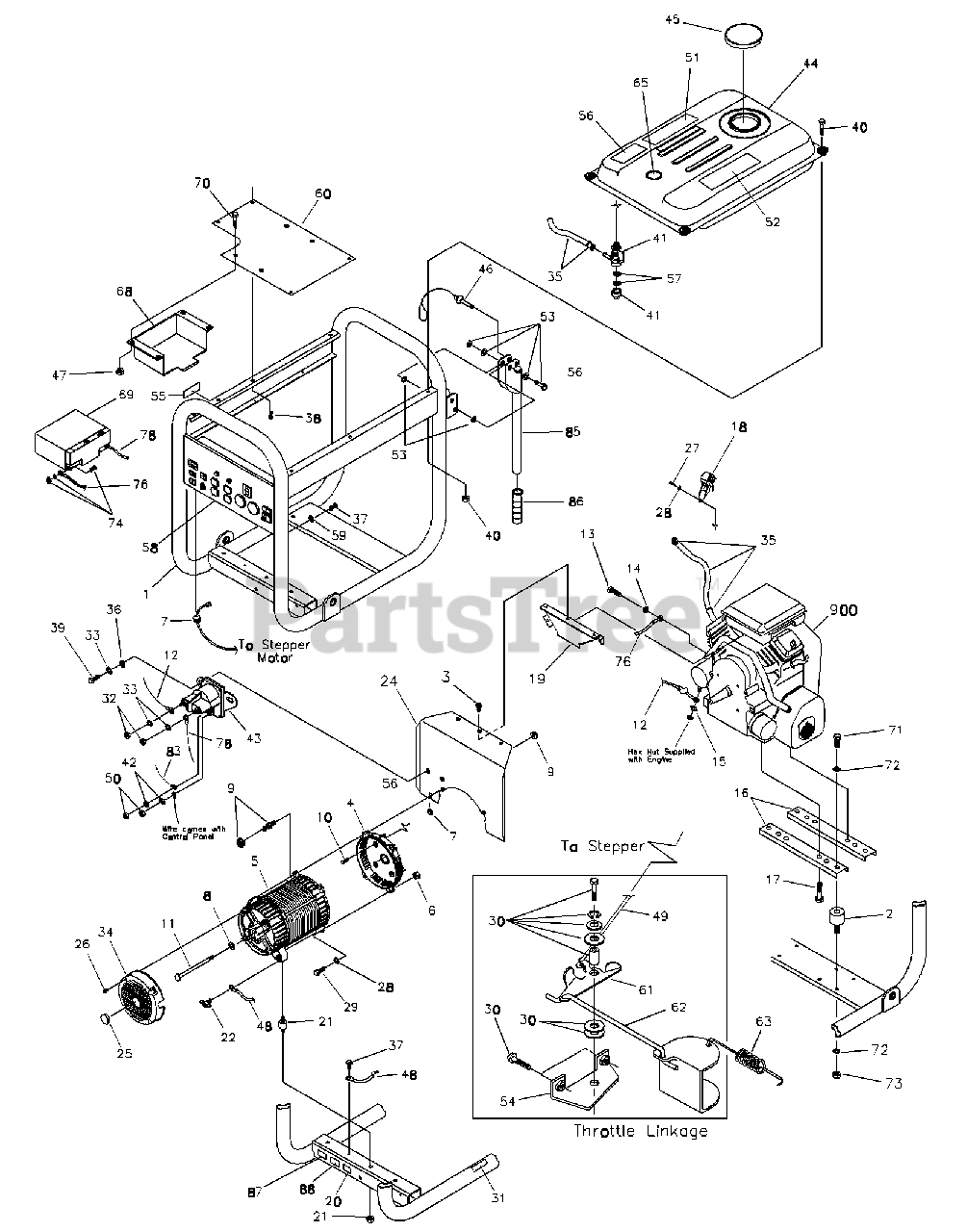

1934-2 - Briggs & Stratton PRO 8,000 Watt Portable Generator, CSA Compliant Main Unit Parts Diagram

PRO 8,000 Watt Portable Generator, CSA Compliant

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B193230GS

KIT, Cradle, Gen (Includes Items 20, 31, 55, 87 & 88)

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 38353GS

MOUNT, Vibration

$39.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 56893GS

CRIMPTITE, 10-24 x 1/2

$3.49

$

In Stock, only 1 left!

0

4

Briggs & Stratton 190220GS

ADAPTER, Engine

$43.99

$

Usually ships in 2-12 days

0

5

NSP

ASSY., Alternator (see page 4)

$

$

Not available

6

NUT, Hex, M8 - 1.25

Note: Purchase locally

$

$

Not available

7

Briggs & Stratton 62265GS

GROMMET

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194208GS

KIT, Alt to Heat Shield Hardware

$20.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1"

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 25254GS

HHCS 5/16-24 x 9-7/8

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189302BGS

WIRE, #16, Red

$17.99

$

Usually ships in 2-12 days

0

13

HHCS, M8 - 1.25 x 16

Note: Purchase locally

$

$

Not available

14

WASHER, Shakeproof, Ext. 5/16

Note: Purchase locally

$

$

Not available

15

WASHER, Shakeproof, Ext. M6

Note: Purchase locally

$

$

Not available

16

Briggs & Stratton B77304GS

SUPPORT, Engine

$27.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 75246GS

TAPTITE, 3/8 - 16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195404GS

ASSY, Stepper Motor

$148.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton J93074GS

SUPPORT, Heat shield

$136.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194155GS

KIT, Vibration Mount

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194950GS

ASSY., Heatshield

$76.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5 - 0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

HHCS, M8 - 1.25 x 20

Note: Purchase locally

$

$

Not available

28

WASHER, 5/16 M8 Lock

Note: Purchase locally

$

$

Not available

29

HHCS, M8-1.25 x 25

Note: Purchase locally

$

$

Not available

30

Briggs & Stratton 194543GS

KIT, Throttle Linkage Hardware

$25.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 200310GS

DECAL, Warning Exhaust

$15.99

$

Usually ships in 2-12 days

0

32

NUT, 1/4 - 20

Note: Purchase locally

$

$

Not available

33

WASHER, 1/4 Lock

Note: Purchase locally

$

$

Not available

34

Briggs & Stratton 195422GS

COVER, RBC Plastic w/ Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Hose, Fuel

$10.99

$

In Stock, Qty 7

0

36

WASHER, Flat, 1/4 - M6

Note: Purchase locally

$

$

Not available

37

Briggs & Stratton B2153GS

SCREW, Self Driller, 12-14 x 7/8

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

SCREW, 12 - 24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B4300GS

HHS, Trilobular, 1/4 - 20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 197955GS

SCREW, M8 - 1.25 x 20, Taptite

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

VALVE, Fuel
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

42

WASHER, #8 Lock

Note: Purchase locally

$

$

Not available

43

Briggs & Stratton B4769GS

CONTACTOR, Starter

$29.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 196035GS

ASSY., Tank Fuel (Includes Items 41, 51, 52, 56 & 65)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP, Tank Fuel

$20.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton B4135GS

PIN, Handle Release

$6.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 77395GS

LOCKNUT, M6

$3.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95920GS

LINKAGE, Stepper Motor to Bell Crank

$16.99

$

Usually ships in 2-12 days

0

50

NUT, 8-32

Note: Purchase locally

$

$

Not available

51

Briggs & Stratton 94480GS

DECAL, Operating Instructions

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 194984GS

DECAL, Warning

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 194034GS

KIT, Fold-down Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 95349GS

PLATE, Adjust

$7.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL, Warning, CO

$13.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 5

0

58

Briggs & Stratton 202526GS

ASSY. Control Panel

$727.99

$

Usually ships in 2-12 days

0

59

WASHER, M6 - 1/4, Int. Shakeproof

Note: Purchase locally

$

$

Not available

60

Briggs & Stratton J193512GS

SUPPORT, Tray Battery

$81.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95348GS

BRACKET, Bell Crank

$7.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 95921GS

LINKAGE, Bell Crank to Throttle

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96717GS

SPRING

$58.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 192724GS

GAUGE, Gas

$

$

Not available

68

Briggs & Stratton J195680GS

TRAY, Battery

$71.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 193043GS

BATTERY

$137.99

$

In Stock, only 4 left!

0

70

HHCS, M6 -1.0 x 12

Note: Purchase locally

$

$

Not available

71

HHCS, 3/8 - 16 x 3/4

Note: Purchase locally

$

$

Not available

72

WASHER, 3/8, Lock

Note: Purchase locally

$

$

Not available

73

NUT, 3/8 - 16

Note: Purchase locally

$

$

Not available

74

Briggs & Stratton 193347GS

KIT, Hardware Battery

$2.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 185939GGS

WIRE, #55 Black

$12.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 189302EGS

WIRE, #13 Red

$18.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 192403YGS

WIRE, 18 AWG, Red, 3.5"

$1.49

$

Usually ships in 2-12 days

0

85

Briggs & Stratton B193200GS

ASSY, Fold Down Handle

$39.99

$

In Stock, Qty 6

0

86

Briggs & Stratton 198669GS

GRIP, Handle

$8.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 195459GS

DECAL, Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 195940GS

DECAL, Ground, French

$6.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 195511GS

MANUAL, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Parts Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Parts Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 202179GS

DECAL, Family, CA EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193662GS

KIT, Decal Service

Note: Parts Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 120/240V, 30A 4P

Note: Parts Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

PLUG, 125V 30A 3P

Note: Parts Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

CABLES, Battery Charge

Note: Parts Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 690661

SCREW, Tapping Hex

Note: Parts Not Illustrated

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 392390

ARRESTER, Spark
(Superseded to 794945)

Note: Parts Not Illustrated

$53.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692099

ASSY., Muffler

Note: Parts Not Illustrated

$184.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 691513

BRACKET, Muffler

Note: Parts Not Illustrated

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692056

SCREW

Note: Parts Not Illustrated

$5.99

$

In Stock, Qty 6

0

Briggs & Stratton 690898

CLAMP, Muffler

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 692539

SCREW
(Superseded to 841233)

Note: Parts Not Illustrated

$3.49

$

In Stock, Qty 6

0
