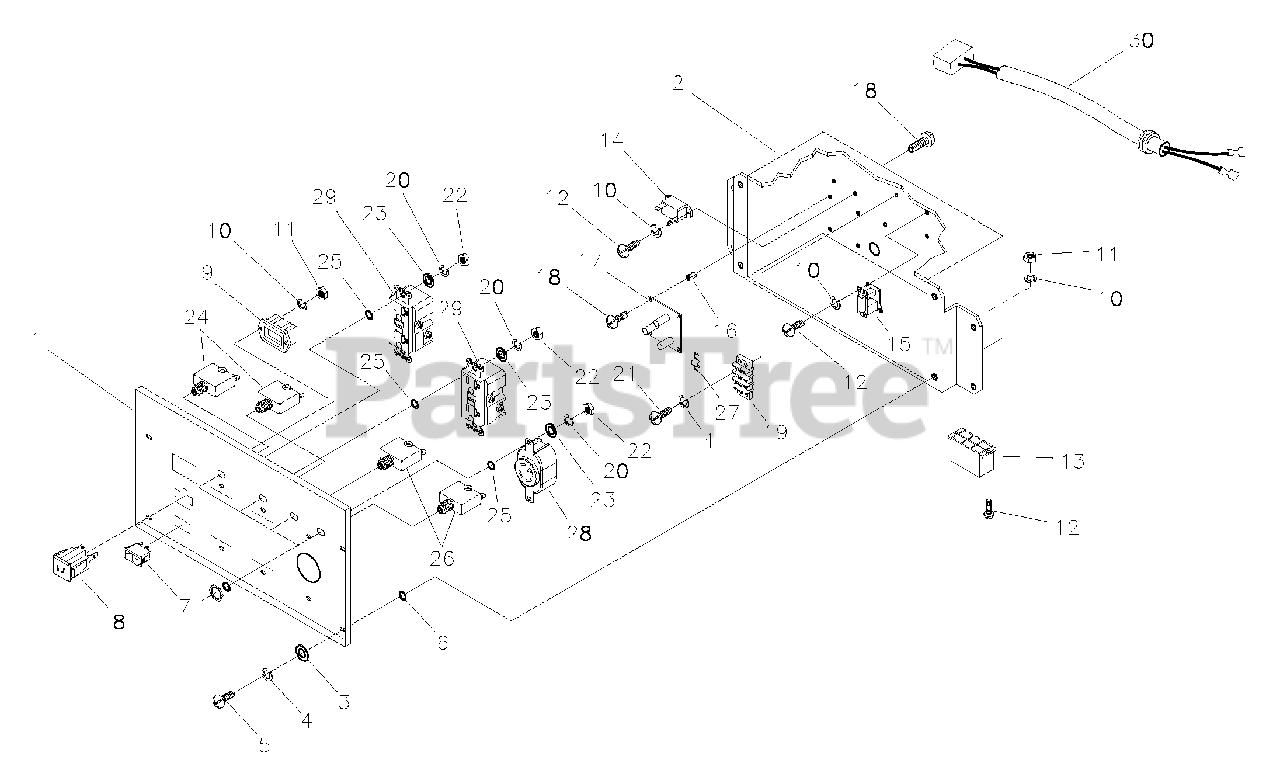

1935-0 - Husqvarna 6,500 Watt Portable Generator Control Panel Parts Diagram

6,500 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton B191714GS

PANEL, Control

$106.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B192836GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 23897GS

WASHER, Flat, #10 - M5

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 49226GS

WASHER, Lock, M5

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 91526GS

PPHMS, M5 - 0.8 x 12

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22447GS

WASHER, M6 - 1/4, Int. Shakeproof

$2.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 82538GS

SWITCH, Rocker

$6.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 90418GS

OUTLET, 12VDC, Snap

$

$

Not available

9

Briggs & Stratton 77604GS

METER, Hour

$112.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 43182GS

WASHER, Lock, M3

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 51714GS

NUT, M3 - 0.5

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 43181GS

PHMS, M3 - 0.5 x 10

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22694GS

HOUSING, Receptacle

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 87962GS

BREAKER, Circuit, 12V, 10A

$29.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84028GS

TRANSFORMER, Idle Cnt

$47.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 64525GS

STANDOFF, Hex

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 189367GS

PCB, Idle Control

$222.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 64526GS

PHTS, #6-32 x 3/8

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 193077GS

STRIP,Terminal

$21.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264GS

WASHER, Lock, M4

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 75477GS

PPHMS, M5 - 0.8 x 20

$3.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 51715GS

NUT, M4 - 0.7

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 43180GS

WASHER, Flat, M4

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 75207GS

BREAKER, Circuit, 20A, with Hardware
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23365GS

WASHER, Shakeproof, Int. #8

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207PGS

BREAKER, Circuit, 25A, with Hardware
(Superseded to 706175)

$31.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 193095GS

JUMPER,Terminal Block

$13.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 80409GS

OUTLET, 120V, 20A, Duplex. GFCI

$102.99

$

In Stock, Qty 5

0

30

Briggs & Stratton 189502GS

HARNESS,Wire

$40.99

$

Usually ships in 2-12 days

0
