19373 - Toro Guardian Walk-Behind Mower (SN: 003000001 - 003999999) (1973) HANDLE ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

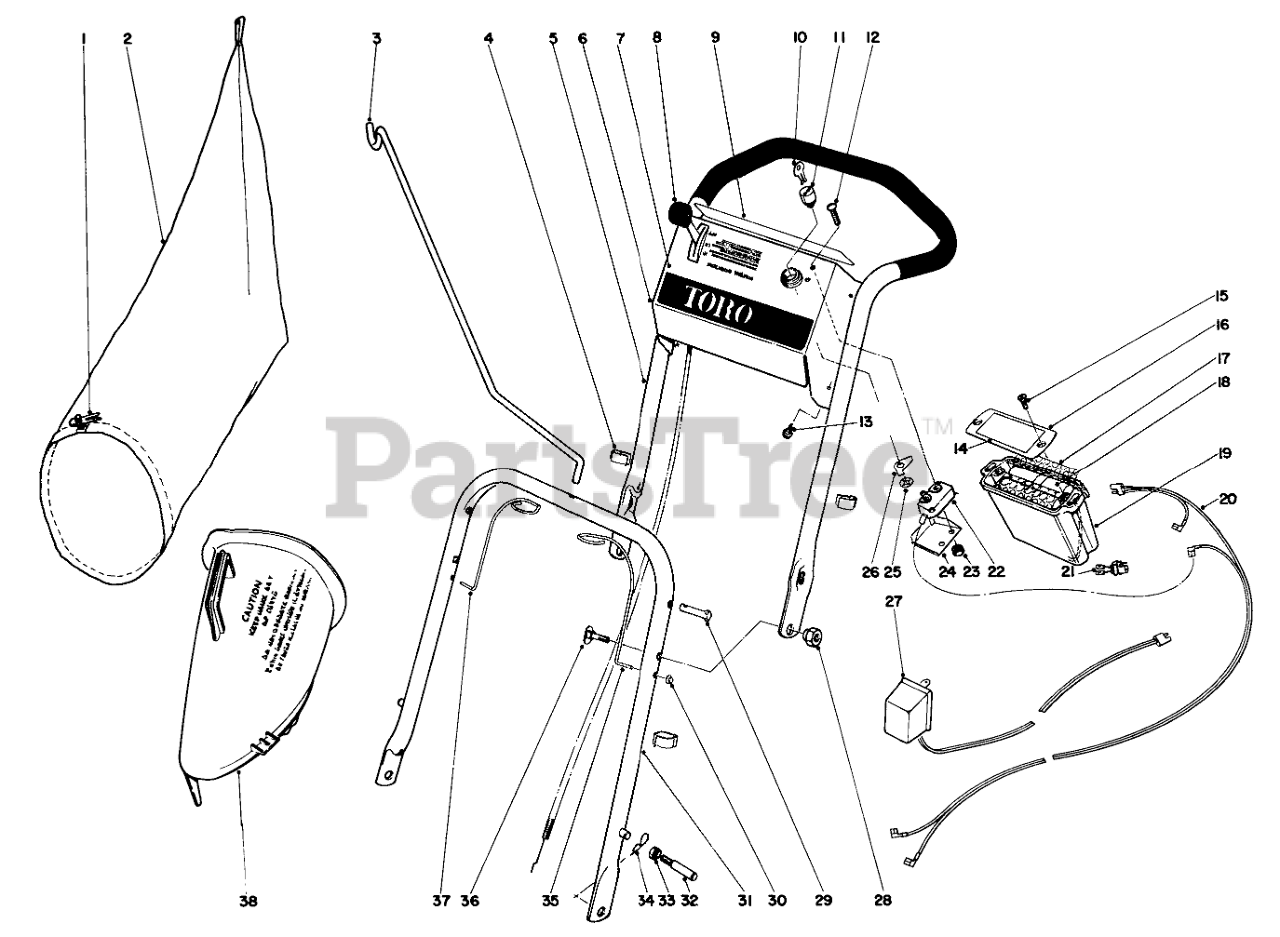

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3-2781

BAG CORD FASTENER

$

$

Not available

2

Toro 5-8679

Grass Bag (Incl. Ref. No. 1)

$

$

Not available

3

Toro 17-4610

Bag Hanger Rod

$

$

Currently unavailable

4

Toro 218-465

BOWDEN CLIP

$

$

Not available

5

Toro 17-4390

Upper Handle
(Superseded to 17-4400)

$239.99

$

Usually ships in 3-6 days

0

6

Toro 18-9010

Control Plate

$

$

Currently unavailable

7

Toro 18-9030

Decal, Control Plate

$

$

Currently unavailable

8

Toro 17-4320

Throttle Control
(Superseded to 46-6010)

$

$

Not available

9

Toro 17-4800

Decal, Safety

$

$

Currently unavailable

10

Toro 8-5450

Key

$

$

Not available

11

Toro 6-8210

Key Hsg.

$

$

Currently unavailable

12

Toro 32122-48

Screw

$

$

Currently unavailable

13

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 8-5600

Decal

$

$

Currently unavailable

15

Toro 32104-93

Screw

$

$

Not available

16

Toro 6-8230

Cover

$

$

Not available

17

Toro 6-8320

Spacer

$

$

Not available

18

Toro 11-7260

Battery Pack

$

$

Not available

19

Toro 6-9750

Container Pack

$

$

Not available

20

Toro 17-4300

Wiring Harness

$

$

Not available

21

Toro 11-3790

Plug & Wire
(Superseded to 49-8141)

$

$

Not available

22

Toro 6-8260

Switch

$

$

Currently unavailable

23

Toro 32149-6

NUT-KEPS

$0.99

$

Usually ships in 3-6 days

0

24

Toro 8-2410

Cover Switch

$

$

Currently unavailable

25

Toro 3290-306

Nut

$

$

Currently unavailable

26

Toro 6-8250

Cam

$

$

Currently unavailable

27

Toro 6-9780

Charger
(Superseded to 131-0848)

$74.99

$

Usually ships in 3-6 days

0

28

Toro 17-7010

Pivot Nut

$

$

Not available

29

Toro 17-4680

Latch Pin

$

$

Not available

30

Toro 3290-299

CLIP

$

$

Not available

31

Toro 17-7500

Lower Handle

$

$

Currently unavailable

32

Toro 6-6940

Handle Pin
(Superseded to 17-9380)

Note: Replacement Parts Only

$

$

Not available

33

Toro 32148-8

INSERT-THREADED

Note: Replacement Parts Only

$3.49

$

Usually ships in 3-6 days

0

34

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

35

Toro 17-4660

Latch Spring L.H.

$

$

Currently unavailable

36

Toro 6-6330

HANDLE SCREW

$

$

Not available

37

Toro 17-4670

Latch Spring R.H.

$

$

Not available

38

Toro 12-0750

BAG ATTACHMENT

$164.99

$

Usually ships in 3-6 days

0
