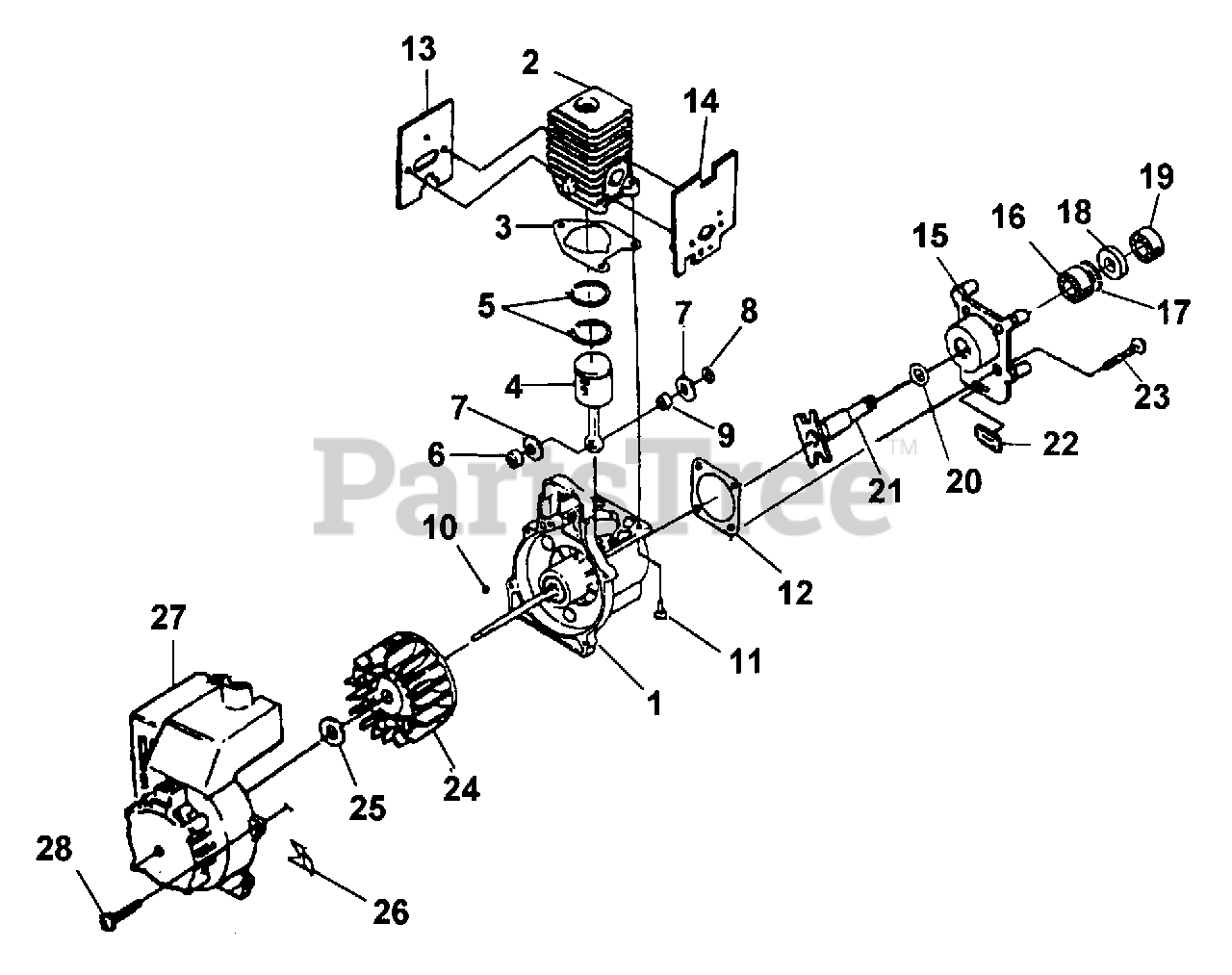

1940 (UT-26030-A) - Green Machine String Trimmer Engine Internal Parts Diagram

String Trimmer

Engine Internal Parts Diagram

  • Title

1

Homelite A06262C

SHORT BLOCK
(Superseded to UP00879)

$

$

Not available

2

Homelite A04740D

CYLINDER & GASKET
(Superseded to UP07146)

$

$

Not available

3

Homelite 04388B

GASKET, CYLINDER
(Superseded to 985259001)

$

$

Not available

4

Homelite A06291A

PISTON & ROD
(Superseded to UP03037)

$53.99

$

In Stock, only 1 left!

0

5

Homelite 03179

RING, PISTON
(Superseded to 690161005)

$

$

Not available

6

Homelite 04860

SPACER, BEARING

$

$

Not available

7

Homelite 00118

THRUST WASHER

$

$

Not available

8

Homelite 03796

RETAINING RING

$

$

Not available

9

Homelite 02461

BEARING, NEEDLE

$

$

Not available

10

Homelite 69250

KEY, WOODRUFF

$

$

Not available

11

Homelite 825801

SCREW,TORX PAN HEAD 12-24 X 3/4

Note: Torque Specs: 65-75 In/Lbs; 7.3-8.5 Nm

$

$

Not available

12

Homelite 98767A

GASKET CRANKCASE

$

$

Not available

13

Homelite 08846

GASKET, MUFFLER

$

$

Not available

14

Homelite 08840

GASKET, HEAT DAM

$

$

Not available

15

Homelite A040172

COVER, CRANKCASE
(Superseded to UP04878)

$

$

Not available

16

Homelite 00270B

BEARING, BALL
(Superseded to UP07197)

$

$

Not available

17

Homelite 98799

RETAINING RING

$2.99

$

In Stock, only 1 left!

0

18

Homelite 98800

SEAL, SHAFT

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 04450

BEARING, BALL

$

$

Not available

20

Homelite 04589

SPACER

$

$

Not available

21

Homelite 04016B

SHAFT, STARTER

$

$

Not available

22

Homelite 98792

BUMPER

$1.49

$

In Stock, only 3 left!

0

23

Homelite 825551

SCREW, SELF TAPPING 10-24 X 3/4
(Superseded to UP03899)

Note: Torque Specs: 55-60 In/Lbs; 6.2-6.8 Nm

$2.99

$

Usually ships in 3-7 days

0

24

Homelite A04158S

ROTOR
(Superseded to UP03856A)

$

$

Not available

25

Homelite 95479A

WASHER, FLAT

$

$

Not available

26

Homelite 02851

TAB, MALE

$

$

Not available

27

Homelite A08179

ENGINE HOUSING W/DECALS

$

$

Currently unavailable

28

Homelite 82538

SCREW, SELF TAPPING 10-24 X 3/4

Note: Torque Specs: 25-35 In/Lbs; 2.8-3.9 Nm

$1.49

$

Usually ships in 3-7 days

0
