1940 (UT-26030-A) - Green Machine String Trimmer Trimmer Attachment Parts Diagram

String Trimmer

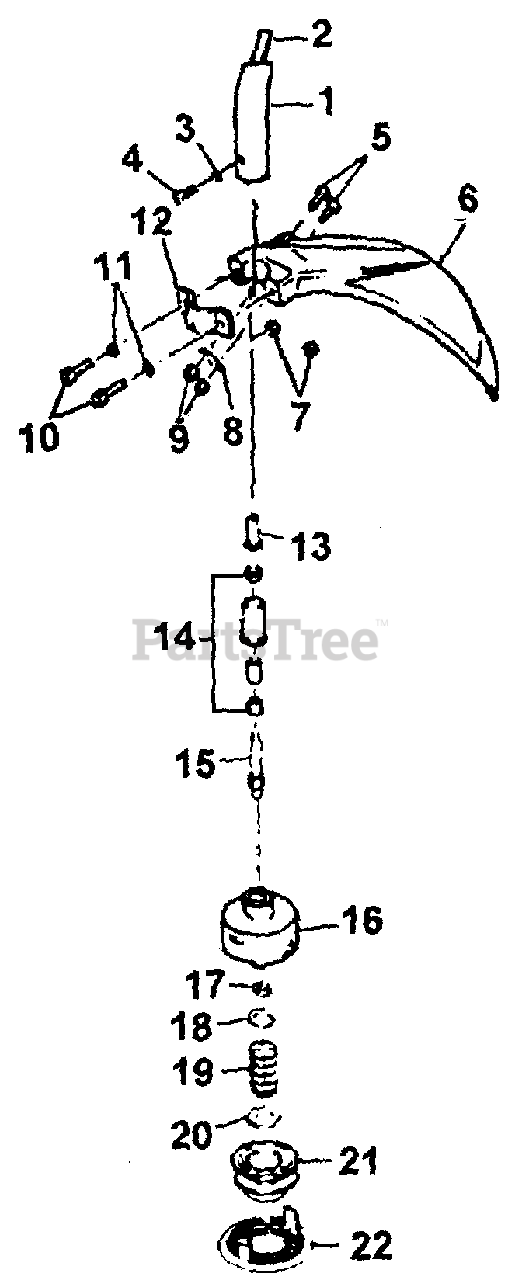

Trimmer Attachment Parts Diagram

  • Title

1

Homelite A09107

TUBE ASSY.
(Superseded to UP06790)

$111.99

$

Usually ships in 3-7 days

0

2

Homelite A07844

FLEX CABLE

$

$

Not available

3

Homelite GM041101

WASHER

$

$

Not available

4

Homelite GM011402

SCREW

Note: Torque Specifications: 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

Homelite GM160306

HEAD SHIELD ASSY.

$

$

Not available

5

Homelite GM011402

SCREW

Note: Torque Specifications: 15-20 In/Lbs; 1.7-2.3 Nm

$

$

Not available

6

Homelite GM165206

DEFLECTOR

$

$

Not available

7

Homelite 81267

NUT

Note: Torque Specifications: 25-35 In/Lbs; 2.8-3.9 Nm

$

$

Not available

8

Homelite GM166901

BLADE, CUT-OFF

$

$

Not available

9

Homelite GM051004

NUT

Note: Torque Specifications: 15-20 In/Lbs; 1.7-2.3 Nm

$12.99

$

Usually ships in 3-7 days

0

10

Homelite GM011417

SCREW

Note: Torque Specifications: 25-35 In/Lbs; 2.8-3.9 Nm

$

$

Not available

11

Homelite GM040002

WASHER

$

$

Not available

12

Homelite GM166S02

BRACKET CLAMP

$

$

Currently unavailable

Homelite GM160614

ARBOR/BUSHING ASSY.

$

$

Not available

13

Homelite GM766501

ADAPTER, ARBOR

Note: Torque Specifications: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Currently unavailable

14

Homelite GM160305

BUSHING ASSY.
(Superseded to UP06876)

$

$

Not available

15

Homelite GM166702

ARBOR POST

Note: Torque Specifications: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

Homelite DG07795

3" HEAD ASSY.

$96.99

$

Usually ships in 3-7 days

0

16

Homelite GM160310

3" HEAD BODY

$

$

Not available

17

Homelite GM167602

PAL NUT

$

$

Not available

18

Homelite GM166903

PLATE, SPRING

$

$

Not available

19

Homelite 0M167901

SPRING

$

$

Currently unavailable

20

Homelite GM166903

PLATE, SPRING

$

$

Not available

21

Homelite 0M365209

3" SPOOL

$

$

Currently unavailable

22

Homelite GM16520S

3" HEAD CAP

$

$

Currently unavailable

Homelite DG07810

3" SPOOL WITH LINE
(Superseded to GM165209)

Note: Optional Accessory (Not Shown)

$

$

Not available

Homelite DG07819

SHOULDER STRAP

Note: Optional Accessory (Not Shown)

$

$

Not available

Homelite DG07830

EXACT-MIX 2cyl. OIL

Note: Optional Accessory (Not Shown)

$

$

Currently unavailable
