19400 - Toro Guardian Walk-Behind Mower (SN: 006000001 - 006999999) (1976) HANDLE ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

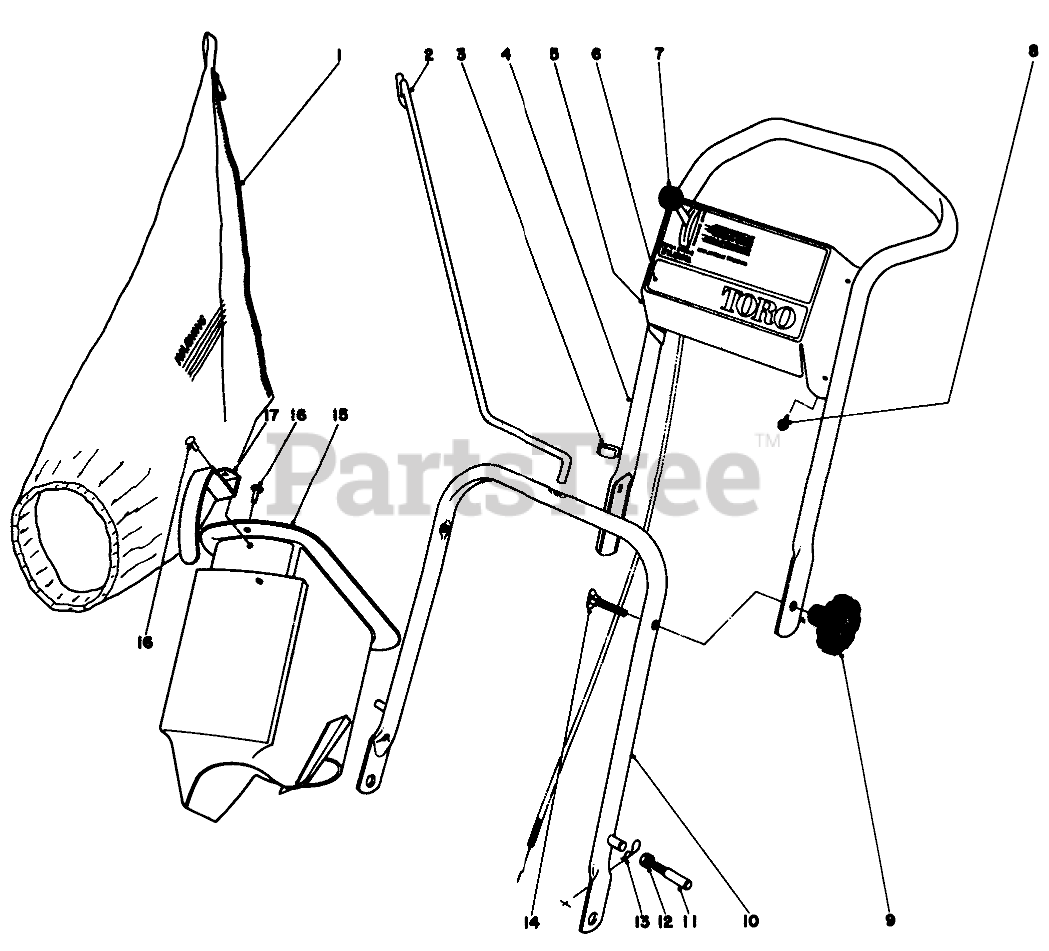

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 6-0929

BAG REPLACMNT44-0540
(Superseded to 44-0540)

$85.99

$

In Stock, only 2 left!

0

2

Toro 20-4590

Bag Rod
(Superseded to 47-5830)

$45.99

$

Usually ships in 3-6 days

0

3

Toro 218-466

CLIP

$

$

Not available

4

Toro 26-0540

UPPER HANDLE

$279.99

$

Usually ships in 3-6 days

0

5

Toro 17-4510

Control Plate

$

$

Not available

6

Toro 26-2200

Decal Control Plate

$

$

Currently unavailable

7

Toro 20-4600

Control Throttle
(Superseded to 46-6010)

$60.99

$

Usually ships in 3-6 days

0

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

10

Toro 26-0520

Lower Handle
(Superseded to 42-1480)

$

$

Not available

11

Toro 17-9380

HANDLE PIN

Note: Replacement Parts Only

$

$

Not available

12

Toro 32146-8

Nut
(Superseded to 32153-4)

Note: Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

14

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

15

Toro 6-1089

Grass Chute (Incl. Ref. 16 & 17)

$

$

Not available

16

Toro 3295-26

RIVET 3/16 X 7/16

$6.99

$

Usually ships in 3-6 days

0

17

Toro 20-4650

HANDLE-GRASS CHUTE

$

$

Not available

Toro 22-4810

Giant Bagging Kit

Note: Optional equipment

$

$

Not available
