19478S - MTD 42" Snow Blade Assembly (1985) Parts Parts Diagram

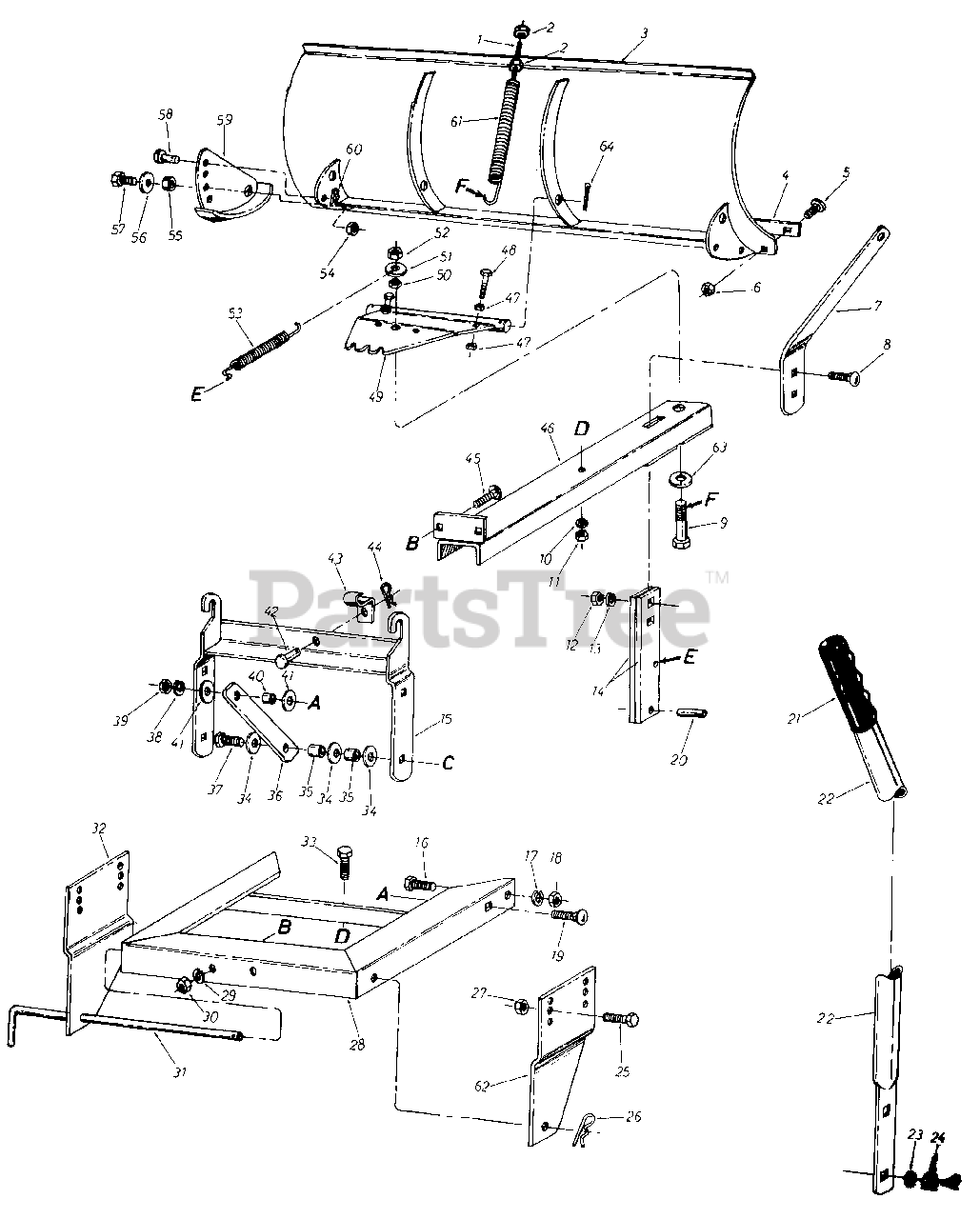

42" Snow Blade Assembly

Parts Parts Diagram

  • Title

1

MTD 710-0693

Hex Bolt 3/8-16 x 4.50"

Note: (Special)

$13.99

$

In Stock, only 2 left!

0

2

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

3

MTD 05650

42" Snow Blade Ass'y.

$

$

Currently unavailable

4

MTD 05667

Wear Plate

$

$

Currently unavailable

5

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0158

Hex . Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

7

MTD 05666

Lock Extension Bar

$

$

Not available

8

MTD 710-0305

Carriage Bolt 3/8 16 x 1.25" Lg.*
(Superseded to 710-0431)

$4.49

$

Usually ships in 3-6 days

0

9

MTD 710-0738

Hex Bolt 3/4-10 x 3.50" Lg.

Note: Special

$

$

Currently unavailable

10

MTD 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

13

MTD 736-0169

L.-Washer3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

14

MTD 05665

Angle Lock Bar
(Superseded to AF-23151)

$35.99

$

Usually ships in 3-6 days

0

15

MTD 2221-003

Lift Bracket Ass'y.

$

$

Currently unavailable

16

MTD 710-0493

Hex Bolt 1/2-13 x 1.00" Lg.*
(Superseded to 710-3131)

$4.99

$

In Stock, only 1 left!

0

17

MTD 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0305

Carriage Bolt 3/8-16 x 1.25" Lg.*
(Superseded to 710-0431)

$4.49

$

Usually ships in 3-6 days

0

20

MTD 715-0114

Spiral Spring Pin 1/4" Dia. x 1.00" Lg.

$8.49

$

In Stock, Qty 9

0

21

MTD 43362

Grip

$

$

Currently unavailable

22

MTD 2117-065

Lift Handle Ass'y.

$

$

Currently unavailable

23

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

24

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

25

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

26

MTD 714-0101

Hair Pin Cotter

$4.49

$

In Stock, only 4 left!

0

27

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

28

MTD 3132-106

Hitch Ass'y.

$

$

Currently unavailable

29

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

30

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

31

MTD 1632-160

Hitch Rod

$

$

Currently unavailable

32

MTD 15159

Mounting Plate-L.H.

$

$

Currently unavailable

33

MTD 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.*

$

$

Not available

34

MTD 736-0258

Flatwasher 3/8" I.D.

$4.49

$

In Stock, only 2 left!

0

35

MTD 23137

Pivot Bushing

$

$

Currently unavailable

36

MTD 1680-071

Blade Lift Arm

$

$

Currently unavailable

37

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$4.99

$

In Stock, Qty 20+

0

38

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

39

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

40

MTD 23137

Pivot Bushing

$

$

Currently unavailable

41

MTD 736-0258

Flatwasher 3/8" I.D.

$4.49

$

In Stock, only 2 left!

0

42

MTD 711-0686

Clevis Pin 5/16" Dia. x 3/4" Lg.

$

$

Not available

43

MTD 1609-365

Hitch Retaining Bracket

$

$

Currently unavailable

44

MTD 714-0101

Hair Pin Cotter

$4.49

$

In Stock, only 4 left!

0

45

MTD 710-0576

Carriage Bolt 3/8-16 x 1.00" Lg.*

$

$

Currently unavailable

46

MTD 2125-012

Push Bar Ass'y.

$

$

Currently unavailable

47

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$3.99

$

In Stock, Qty 20+

0

48

MTD 710-0489

Hex Bolt 1/2-13 x 2.00" Lg.*

$6.99

$

Usually ships in 3-6 days

0

49

MTD 05658

Pivot Ass'y.

$

$

Currently unavailable

50

MTD 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.49

$

In Stock, only 1 left!

0

51

MTD 736-0306

Flat Wash. 3/4" I.D.

Note: Special

$

$

Not available

52

MTD 712-0205

Hex Ins. L.-Nut 3/4-10 Thd.

$

$

Not available

53

MTD 732-0360

Spring-Angle Lock
(Superseded to AF-43348)

$34.99

$

In Stock, only 1 left!

0

54

MTD 712-0375

Hex Lock Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

55

MTD 750-0437

Pivot Bushing
(Superseded to AF-42846)

$

$

Not available

56

MTD 736-0258

Fl.-Wash. .385" I.D. x 1.00" O.D.

$4.49

$

In Stock, only 2 left!

0

57

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.*

$3.99

$

In Stock, Qty 17

0

58

MTD 711-0686

Clevis Pin 5/16" Dia. x .75" Lg.

$

$

Not available

59

MTD 2232-001

Skid Ass'y.
(Superseded to 05655)

$

$

Not available

60

MTD 714-0101

Hair Pin Cotter

$4.49

$

In Stock, only 4 left!

0

61

MTD 732-0359

Blade Adjustment Spring

$

$

Not available

62

MTD 15158

Mounting Plate-R.H.

$

$

Currently unavailable

63

MTD 736-0305

Fl.-Wash. .810 I.D. x 2.00" O.D.
(Superseded to 736-0306)

$

$

Not available

64

MTD 43343

Cotter Pin 5/32 x 1-1/2" Lg.

$

$

Currently unavailable
