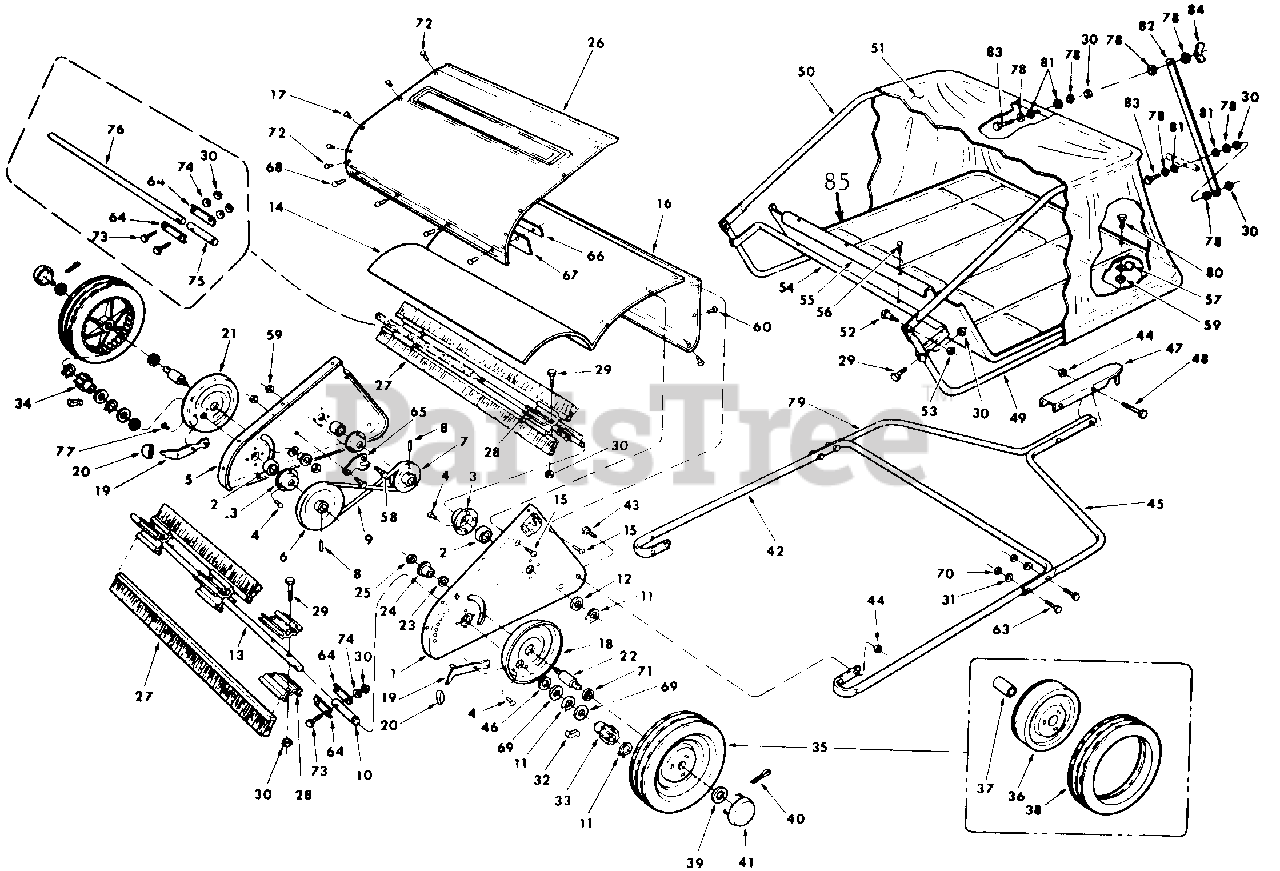

195-468-000 - MTD Brush Assembly (1985) Parts Parts Diagram

Brush Assembly

Parts Parts Diagram

  • Title

1

MTD 4111-092

Assembly-End Plate R.H.

$

$

Currently unavailable

2

MTD 1652-013

Bearing

$

$

Not available

3

MTD 1629-056

Retainer-Bearing
(Superseded to AF-1629-56)

$

$

Not available

4

MTD 1530-006

Rivet (3/16 Dia. x 5/16)

$

$

Currently unavailable

5

MTD 4111-091

Assembly-End Plate L.H.

$

$

Currently unavailable

6

MTD 2120-069

Assembly-Pulley

$

$

Currently unavailable

7

MTD 2626-074

Pulley

$

$

Currently unavailable

8

MTD 1548-012

Rollpin (.156 Dia. x 1-1/4)

$

$

Currently unavailable

9

MTD 2651-049

Belt (3/8 Round Sect.)

$

$

Currently unavailable

10

MTD 1632-229

Shaft-Brush Drive

Note: (Short)

$

$

Not available

11

MTD 1650-021

Ring-Retainer
(Superseded to AF-1650-21)

$6.49

$

Usually ships in 3-6 days

0

12

MTD 1540-017

Washer-Flat (5/8 x 15/16 x 1/16)
(Superseded to 936-0116)

$6.49

$

In Stock, only 1 left!

0

13

MTD 2632-231

Shaft-Brush Drive

Note: (Long)

$

$

Currently unavailable

14

MTD 4703-024

Baffle-Top

$

$

Currently unavailable

15

MTD 1507-012

Screw (10-32 x 1-1/8 Sems) *

$

$

Currently unavailable

16

MTD 3703-025

Baffle-Front

$

$

Currently unavailable

17

MTD 1507-008

Screw (10-32 x 3/8 Sems) *

$

$

Currently unavailable

18

MTD 3118-044

Assembly-Dust Cover R.H.

$

$

Not available

19

MTD 2155-018

Assembly-Wheel Adj. Lever

$

$

Not available

20

MTD 2643-018

Knob-Wheel Adj.

$

$

Not available

21

MTD 3118-045

Assembly-Dust Cover L.H.

$

$

Currently unavailable

22

MTD 1631-039

Axle-Wheel

$

$

Not available

23

MTD 1552-013

Washer-Bowed

$

$

Not available

24

MTD 1657-045

Bushing-Spacer

$

$

Currently unavailable

25

MTD 1038-000

Nut-Hex
(Superseded to 912-0116)

$

$

Not available

26

MTD 4622-098

Cover-Sweeper

$

$

Currently unavailable

27

MTD 2679-002

Ass'y. Brush and Channel

$

$

Currently unavailable

28

MTD 2182-007

Assemblv-Brush Retainer

$

$

Not available

29

MTD 1509-031

Bolt (1/4-20 x 1-1/8 Hex Hd.) *

$

$

Currently unavailable

30

MTD 1538-008

Nut (1/4-20 Hex Lock) *
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

31

MTD 1025-000

Washer-Lock (5/16 Split)
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

32

MTD 1671-001

Pawl
(Superseded to AF-1671-1P)

$9.99

$

In Stock, only 1 left!

0

33

MTD 2692-006

Pinion R.H.
(Superseded to AF-2692-6)

$

$

Not available

34

MTD 2692-007

Pinion L.H.
(Superseded to AF-2692-7)

$

$

Not available

35

MTD 3108-148

Assembly-Wheel
(Superseded to AF-44985)

$148.99

$

Usually ships in 3-6 days

0

36

MTD 4636-018

Wheel-Gear & Rim
(Superseded to AF-44985)

$148.99

$

Usually ships in 3-6 days

0

37

MTD 1652-052

Bushing

$

$

Not available

38

MTD 3619-058

Tire

$

$

Not available

39

MTD 0141-000

Washer (3/8 x 7/8 x 3/16) *

$

$

Not available

40

MTD 0142-000

Cotter Pin (1/8 x 5/8) *
(Superseded to 914-0474)

$

$

Not available

41

MTD 2674-032

Cap-Hub
(Superseded to AF-2674-32)

$

$

Not available

42

MTD 4697-013

Draw-Bar-Rear

$

$

Currently unavailable

43

MTD 1509-044

Bolt (5/16-18 x 3/4 Sem Hex) *

$

$

Currently unavailable

44

MTD 1538-006

Nut (5/16-18 Hex Lock) *
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

45

MTD 4697-014

Draw-Bar-Front

Note: (R.H.)

$

$

Currently unavailable

46

MTD 1552-014

Washer-Bowed

$

$

Currently unavailable

47

MTD 1132-128

Ass'y.-Bracket & Pin

$

$

Currently unavailable

48

MTD 0000-769

Bolt (5/16-18 x 2-5/8 Hex Hd.) *

$

$

Currently unavailable

49

MTD 4647-029

Frame Catcher-Lower

$

$

Currently unavailable

50

MTD 4647-030

Frame Catcher-Upper

$

$

Currently unavailable

51

MTD 0773-013

Basket-Fabric

$

$

Currently unavailable

52

MTD 1513-087

Bolt-Shoulder

Note: (Pivot)

$

$

Currently unavailable

53

MTD 1538-013

Nut (3/8-16 Hex Lock) *

$

$

Currently unavailable

54

MTD 2603-077

Brace-Frame

$

$

Currently unavailable

55

MTD 4709-024

Panel-Catcher Bottom

$

$

Currently unavailable

56

MTD 1095-000

Screw (10-32 x 1/2 Phillips) *
(Superseded to 710-0473)

$3.99

$

In Stock, only 1 left!

0

57

MTD 1694-026

Clamp

$

$

Currently unavailable

58

MTD 1507-006

Bolt (10-32 x 3/8 Truss Hd.) *

$

$

Currently unavailable

59

MTD 1534-008

Nut (10-32 Hex Lock) *

$

$

Not available

60

MTD 1507-011

Screw (10-32 x 3/8 Sems) *

$

$

Currently unavailable

63

MTD 1513-093

Bolt (5/16 x 1-3/8)

Note: (Special)

$

$

Currently unavailable

64

MTD 1694-034

Coupling-Half

Note: (Clamp)

$

$

Currently unavailable

65

MTD 2723-004

Scraper-Impeller Pulley

$

$

Not available

66

MTD 1629-063

Retainer-Skirt

$

$

Currently unavailable

67

MTD 1693-003

Skirt

$

$

Currently unavailable

68

MTD 1117-000

Screw (10-32 x 3/8 Phillips Hd.) *

$

$

Currently unavailable

69

MTD 1540-125

Washer (.59 x 1-1/8 x .015)
(Superseded to AF-44007P)

$

$

Not available

70

MTD 0070-000

Nut (5/16-18 Hex)
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

71

MTD 1540-032

Washer (.78 x 1-1/4 x .015)

$

$

Not available

72

MTD 1522-001

Screw (10-12 x 5/8 Sheet Metal)

$

$

Currently unavailable

73

MTD 1509-090

Bolt (1/4-20 x 1-1/4 Hex Hd.)
(Superseded to 710-0106)

$3.99

$

In Stock, only 1 left!

0

74

MTD 1018-000

Lockwasher (1/4 Std. Split)
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

75

MTD 1632-228

Shaft-Impeller

Note: (Short)

$

$

Not available

76

MTD 2632-230

Shaft-Impeller

Note: (Long)

$

$

Currently unavailable

77

MTD 1530-001

Rivet- (3/16 Dia. x 1/4 Truss Hd.)

$

$

Currently unavailable

78

MTD 1540-081

Washer (17/64 x 3/4 x 1/16)

$

$

Currently unavailable

79

MTD 4697-015

Draw & Bar-Front

Note: (L.H.)

$

$

Currently unavailable

80

MTD 1509-038

Bolt (10-32 x 3/8 Hex Hd.)

$

$

Currently unavailable

81

MTD 1543-069

Washer (21/64 x 3/4 x 3/32 Nylon)

$

$

Currently unavailable

82

MTD 2653-028

Support

$

$

Currently unavailable

83

MTD 1509-069

Bolt (1/4-20 x 13/4 Hex Hd.)
(Superseded to 710-0136)

$3.99

$

In Stock, only 2 left!

0

84

MTD 1539-079

Nut 1/4-20 Wing-Lock

$

$

Not available

85

MTD 1720-013

Vinyl Strip Edge 96" Lg.

$

$

Currently unavailable
