195-746-190 - White Outdoor 8 HP Tiller Attachment (1985) Chain Case Assembly Parts Diagram

8 HP Tiller Attachment

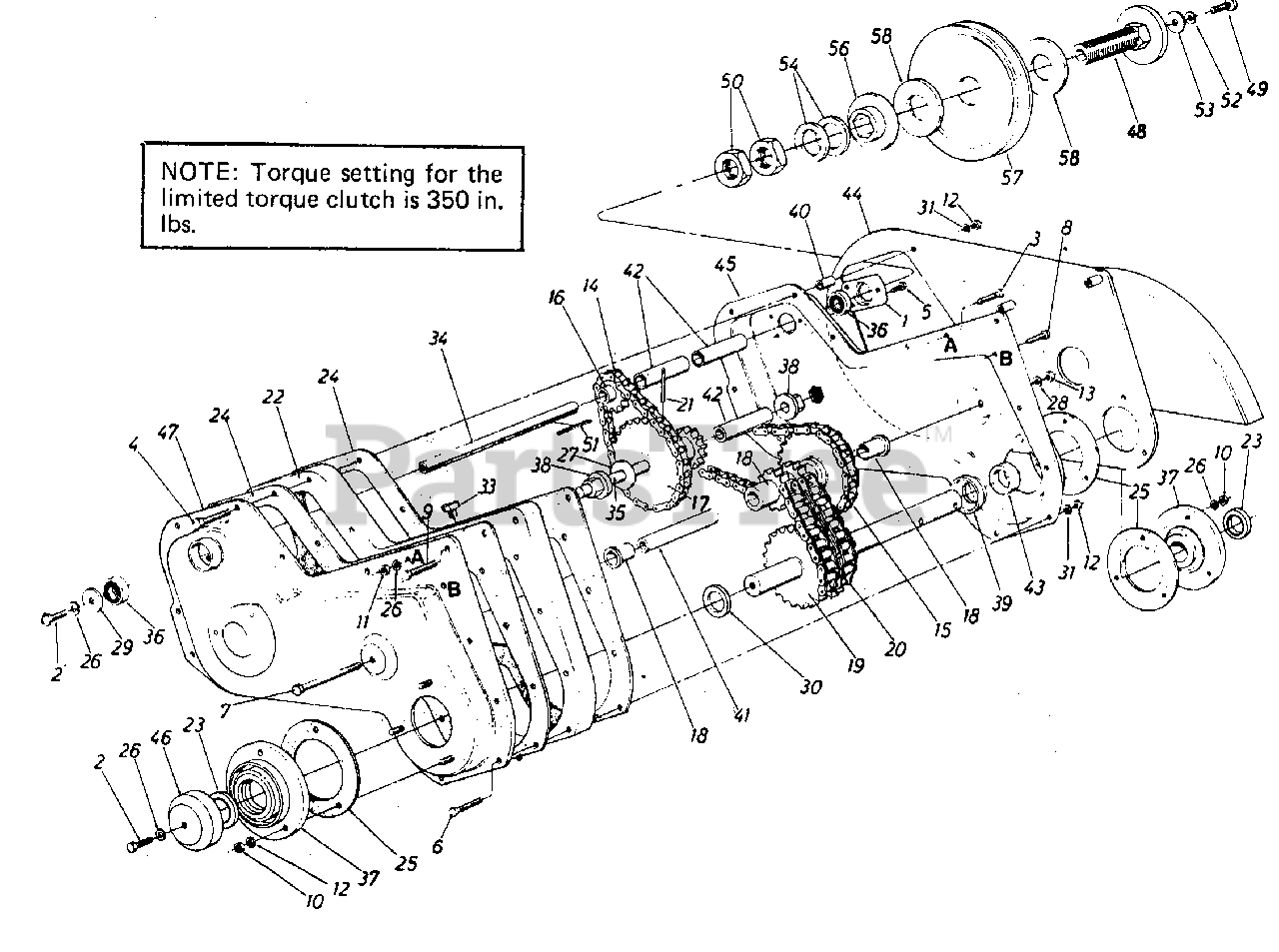

Chain Case Assembly Parts Diagram

  • Title
1

White Outdoor 05034

Bearing Housing 1-3/8" Dia.
(Superseded to 05034A)

$

$

Not available

2

White Outdoor 710-0371

Hex Bolt 5/16-18 x .88" Lg. Spec.
(Superseded to 710-1880)

$3.71

$

In Stock, only 4 left!

0

3

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$3.45

$

In Stock, Qty 20+

0

4

White Outdoor 710-0564

Hex Bolt 1/4-20 x 2.75" Lg.*

$5.60

$

In Stock, only 3 left!

0

5

White Outdoor 710-0599

Hex Wash. S-Tap. Scr. 1/4-20 x 50" Lg.

$3.52

$

In Stock, Qty 20+

0

6

White Outdoor 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.*

$4.31

$

In Stock, Qty 16

0

7

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$11.86

$

In Stock, only 2 left!

0

8

White Outdoor 710-0778

Hex Wash. Hd. Bolt 1/4-20 x 1.5" Lg.

$3.56

$

In Stock, Qty 20+

0

9

White Outdoor 710-0909

Hex Wash. TT Tap Scr. 5/16 18 x 1.75" Lg.
(Superseded to 710-0909A)

$8.15

$

In Stock, only 2 left!

0

10

White Outdoor 712-0158

Hex Cent. L. Nut 5/16-18 Thd.
(Superseded to 912-0158)

$2.61

$

In Stock, Qty 20+

0

11

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$3.65

$

In Stock, Qty 10

0

13

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.52

$

In Stock, Qty 8

0

14

White Outdoor 713-0131

#41 Chain 1/2" Pitch x 34 Links Endless

$

$

Not available

15

White Outdoor 713-0186

#42 Chain 1/2" Pitch x 48 Links-Endless
(Superseded to 913-0186)

$

$

Not available

16

White Outdoor 713-0206

Sprocket 10Tooth.500" Pitch

$

$

Not available

17

White Outdoor 713-0341

10 & 28 Teeth Sprocket Ass'y.

$

$

Not available

18

White Outdoor 713-0342

8-2 & 28 Sprocket Sleeve Ass'y.

$

$

Not available

19

White Outdoor 713-0362

18-2 Sprocket Shaft Ass'y.

$219.58

$

Usually ships in 5-10 days

0

20

White Outdoor 713-0344

#50-2 Chain 5/8" Pitch x 28 Links-Endless
(Superseded to 913-0344)

$

$

Not available

21

White Outdoor 715-0114

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.
(Superseded to 915-0114)

$7.93

$

In Stock, Qty 20+

0

22

White Outdoor 717-0811

Spacer Block-Tiller Housing

$

$

Not available

23

White Outdoor 721-0192

Oil Seal Double Lip-l 1/4" Dia.

$

$

Not available

24

White Outdoor 721-0132

Gasket for Tiller Housing
(Superseded to 921-0132)

$33.29

$

In Stock, only 1 left!

0

25

White Outdoor 721-0133

Gasket for Brg.-Housing

$

$

Not available

26

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

27

White Outdoor 736-0187

Fl.-Wash. .640" I.D. x 1.24" O.D.

$3.67

$

In Stock, Qty 20+

0

28

White Outdoor 736-0217

L.-Wash. 3/8" I.D. Heavy Duty
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

29

White Outdoor 736-0231

Fl.-Wash. .344" I.D. x.1.125"
(Superseded to 936-0231)

$

$

Not available

30

White Outdoor 736-0368

Special Washer

$

$

Not available

31

White Outdoor 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$3.60

$

In Stock, Qty 14

0

White Outdoor 737-0133

Grease-Plastilube #0
(Superseded to 737-0300A)

Note: (Not Shown)

$27.98

$

In Stock, Qty 20+

0

33

$5.53

$

In Stock, only 1 left!

0

34

White Outdoor 738-0181

Jack Shaft .525" I.D. x 7.78" Lg.

$

$

Not available

35

White Outdoor 738-0594

Sprocket Shaft .63" Dia. x 5.0" Lg.

$

$

Not available

36

White Outdoor 741-0155

Ball Brg. .62" I.D. x 1.38" O.D.
(Superseded to 941-0155)

$20.17

$

In Stock, Qty 20+

0

37

White Outdoor 741-0417

Bearing Housing-1 1/4"

$

$

Not available

38

White Outdoor 748-0229

Hex Flange Brg.
(Superseded to 948-0229)

$9.47

$

Usually ships in 5-10 days

0

39

White Outdoor 750-0563

Spacer 1.25" I.D. x 2.0" O.D.

$

$

Not available

40

White Outdoor 750-0599

Spacer .28" I.D. x .62" O.D. x .90" Lg.
(Superseded to 950-0599)

$

$

Not available

41

White Outdoor 750-0600

Spacer.38" I.D. x .62" O.D. x 3.44" Lg.

$20.94

$

Usually ships in 5-10 days

0

42

White Outdoor 750-0601

Spacer.62" I.D. x .88" O.D. x 1.56" Lg.
(Superseded to 950-0601)

$

$

Not available

43

White Outdoor 750-0636

Spacer 1.25" I.D. x 1.62" O.D. x . 50" Lg.

$

$

Not available

44

White Outdoor 784-0055

Tiller Housing Plate Ass'y.-L.H.

Variations

White Outdoor 784-0055-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0055-0637

No Longer Available PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

45

White Outdoor 784-0061

Ti I ler Housing Ass'y.

Variations

White Outdoor 784-0061-0498

HOUSING-TILLER - OLD CUB YELLOW (0498)

$138.11

$

Usually ships in 5-10 days

0

White Outdoor 784-0061-0637

HOUSING-TILLER - POWDER BLACK (0637)

$138.11

$

Usually ships in 5-10 days

0

White Outdoor 784-0061-0638

HOUSING-TILLER - MTD/TROY-BILT RED (0638)

$138.11

$

Usually ships in 5-10 days

0

$

$

46

White Outdoor 784-0067

Dust Cap .320" Dia. Hole

$

$

Not available

47

White Outdoor 784-0077

T i I ler Housi ng Ass'y.-R . H .

Variations

White Outdoor 784-0077-0498

No Longer Available HOUSING-RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0077-0637

No Longer Available HOUSING-RH - POWDER BLACK (0637)

$

$

Not available

$

$

48

White Outdoor 15727

Friction DiscAss'y.

$

$

Not available

49

White Outdoor 710-0573

Hex Bolt 5/16-18 x 1.25" Lg. Grade 5

$5.10

$

In Stock, Qty 20+

0

50

White Outdoor 712-0331

Hex Jam Nut 1.0-14 x 28 Thd.

$

$

Not available

51

White Outdoor 714-0133

Sq. Key 3/16 x 1.50" Lg.
(Superseded to 914-0133)

$

$

Not available

52

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

53

White Outdoor 736-0231

Fl.-Wash. .344" I.D. x 1.125" O.D.
(Superseded to 936-0231)

$

$

Not available

54

White Outdoor 736-0352

Spring Bell Wash. 1.0" I.D. x 2.0" O.D.

$

$

Not available

56

White Outdoor 748-0296

Floating Disc 3-1/4" O.D. x 1.0" I.D.

$

$

Not available

57

White Outdoor 756-0439

5/8 V-Pulley 1.50" I.D. x 6.50"

$

$

Not available

58

White Outdoor 761-0189

Friction Pad 3-1/4" O.D. x 3/8" I.D.

$

$

Not available
