195-746-190 - White Outdoor 8 HP Tiller Attachment (1985) Tiller Assembly Parts Diagram

8 HP Tiller Attachment

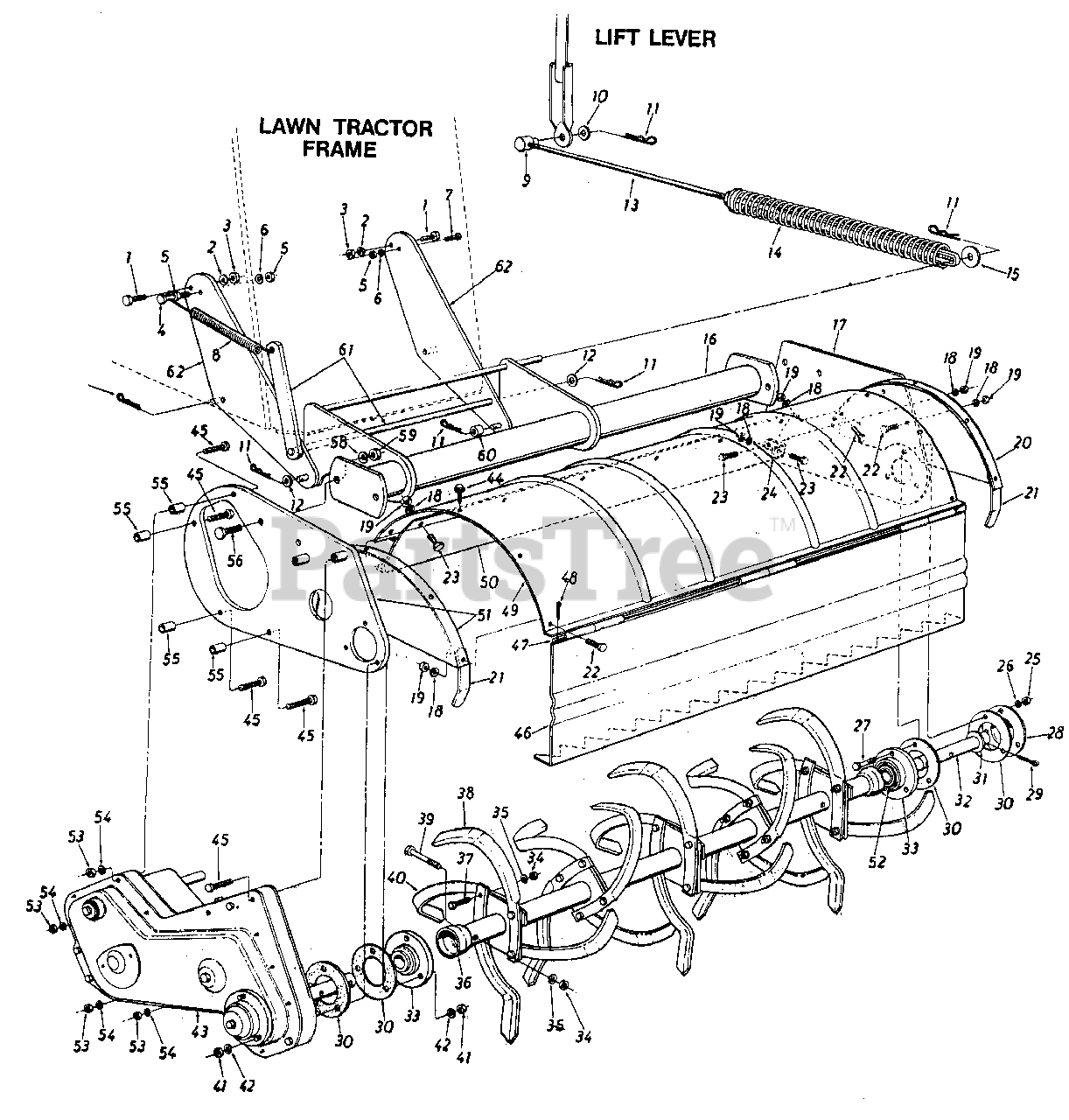

Tiller Assembly Parts Diagram

  • Title
1

White Outdoor 710-0696

Hex Bolt 3/8-24x .88" Lg.*

$5.48

$

In Stock, Qty 6

0

2

White Outdoor 736-0217

L.-Wash. 3/8" I.D. Heavy Duty
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

3

White Outdoor 712-0241

Hex Nut3/8-24Thd.*

$3.57

$

In Stock, Qty 20+

0

4

White Outdoor 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.*

$4.91

$

Usually ships in 5-10 days

0

5

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$5.48

$

In Stock, Qty 20+

0

6

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

7

White Outdoor 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.*
(Superseded to 710-0888)

$3.52

$

In Stock, Qty 20+

0

8

White Outdoor 732-0185

Extension Spring .56" O.D. x 7.75" Lg.
(Superseded to 732-0185A)

$

$

Not available

9

White Outdoor 711-0770

Adjustment Ferrule 1/2-13 Thd .
(Superseded to 911-0770)

$51.61

$

In Stock, only 2 left!

0

10

White Outdoor 736-0187

Fl.-Wash. .640" I.D. x 1.24" O.D. x.060

$3.67

$

In Stock, Qty 20+

0

11

White Outdoor 714-0145

Intern. Cotter Pin 1/2" Dia.
(Superseded to 914-0145)

$

$

Not available

12

White Outdoor 736-0272

Fl.-Wash. .510" I.D. x 1.0" O.D. x .060
(Superseded to 936-0272)

$4.02

$

In Stock, Qty 20+

0

13

784-0050

Lift Rod Ass'y. 39.0" Lg.

$

$

Not available

14

White Outdoor 732-0460

Compression Spring 1.50" O.D. x 15.0" Lg.

$

$

Not available

15

White Outdoor 736-0208

Fl.-Wash. .51" I.D. x 1.50" O.D. x .075
(Superseded to 936-0208)

$

$

Not available

16

White Outdoor 784-0063

Pivot Bracket Assembly

$

$

Not available

17

White Outdoor 784-0056

Tiller Housing Plate-R.H.

Variations

White Outdoor 784-0056-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0056-0637

No Longer Available PLATE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

19

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$5.48

$

In Stock, Qty 20+

0

20

White Outdoor 784-0058

End Cover-Tine Shield-R . H .

Variations

White Outdoor 784-0058-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0058-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 784-0069

Tine Shield Hinge Flap Support

Variations

White Outdoor 784-0069-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.*

$3.56

$

In Stock, Qty 20+

0

23

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.*

$3.63

$

In Stock, only 4 left!

0

24

12541

Chute Pivot B racket

$

$

Not available

25

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$2.61

$

In Stock, Qty 20+

0

26

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

27

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5)

$3.34

$

In Stock, Qty 20+

0

28

White Outdoor 784-0068

Grease Housing Cup

Variations

White Outdoor 784-0068-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0068-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0068-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 784-0068-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

29

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.*
(Superseded to 914-0470)

$3.56

$

In Stock, Qty 20+

0

30

White Outdoor 721-0133

Gasket for Brg. Housing

$

$

Not available

31

White Outdoor 736-0246

Fl.-Wash. 1.25" I.D. x 2.00" O.D. x . 06

$

$

Not available

32

White Outdoor 738-0630

Tine Shaft R.D. 1.25" Dia. x 6.25" Lg.

$

$

Not available

33

White Outdoor 741-0417

Bearing Housing w/ Bearing

$

$

Not available

34

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$3.57

$

In Stock, Qty 20+

0

35

White Outdoor 736-0217

L.-Wash. 3/8" I.D. Heavy Duty
(Superseded to 936-0217)

$3.52

$

In Stock, Qty 20+

0

36

White Outdoor 784-0107

Tine Adapter Ass'y.

Variations

White Outdoor 784-0107-0637

No Longer Available ADAPTER-TINE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.*
(Superseded to 710-0459A)

$5.93

$

In Stock, Qty 20+

0

38

White Outdoor 742-0243

Tine 14" x 5/16"

Variations

White Outdoor 742-0243-0637

TINE LH BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

39

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.*

$5.53

$

In Stock, Qty 13

0

40

White Outdoor 742-0244

Tine 14" x 5/16"

Variations

White Outdoor 742-0244-0637

TINE BLADE RH BLACK - POWDER BLACK (0637)

$27.50

$

Usually ships in 5-10 days

0

$

$

41

White Outdoor 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$2.61

$

In Stock, Qty 20+

0

42

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$3.92

$

In Stock, Qty 20+

0

43

White Outdoor 884-0061-5

Chain Case Ass'y. Comp.

$

$

Not available

44

White Outdoor 710-0604

Hex Wash. TT Tap. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$3.62

$

In Stock, Qty 20+

0

45

White Outdoor 710-0564

Hex Bolt 1/4-20 x 2.75" Lg.*

$5.60

$

In Stock, only 3 left!

0

46

White Outdoor 784-0076

Tine Shield-Hinge Flap Ass'y. 30"

Variations

White Outdoor 784-0076-0498

HINGE ASSY-FLAP - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0076-0637

HINGE ASSY-FLAP - POWDER BLACK (0637)

$

$

Not available

$

$

47

White Outdoor 747-0479

Tiller Flap Rod 1/4" Dia. x 29.7" Lg.

$

$

Not available

48

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.*
(Superseded to 914-0115)

$3.21

$

In Stock, Qty 20+

0

49

White Outdoor 784-0074

Tine Shield Ass'y. 30" Lg.

Variations

White Outdoor 784-0074-0498

No Longer Available SHIELD-TINE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0074-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 784-0060

Reinforcement Brk't.-Tine Shield

$

$

Not available

51

White Outdoor 784-0055

Ti I ler H ousing P late Ass'y.

Variations

White Outdoor 784-0055-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0055-0637

No Longer Available PLATE ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 721-0192

Oil Seal Double Lip-1-1/4" Shaft

$

$

Not available

53

White Outdoor 712-0287

Hex Nut 1/4-20Thd.*
(Superseded to 912-0287)

$3.65

$

In Stock, Qty 10

0

54

White Outdoor 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$3.60

$

In Stock, Qty 14

0

55

White Outdoor 750-0599

Spacer.28" I.D. x .62" O.D. x
(Superseded to 950-0599)

$

$

Not available

56

White Outdoor 710-0592

Hex Bolt 1/2-13 x 1.00" Lg.*

$

$

Not available

58

White Outdoor 736-0921

L.-Wash. 1/2" I.D.*

$3.60

$

In Stock, Qty 20+

0

59

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*
(Superseded to 912-0206)

$3.60

$

In Stock, Qty 20+

0

60

White Outdoor 711-0212

Spacer.50" I.D. x 1.00" O.D. x.50" Lg.

$

$

Not available

61

White Outdoor 784-0073

Idler Bracket Support Arm Ass'y.

$

$

Not available

62

White Outdoor 784-0064

Pivot Bracket Support
(Superseded to 784-0064B-0637)

$

$

Not available
