195-795-000 - MTD Mower Deck Assembly Only (1985) 26" Side Discharge Mowing Deck Parts Diagram

Mower Deck Assembly Only

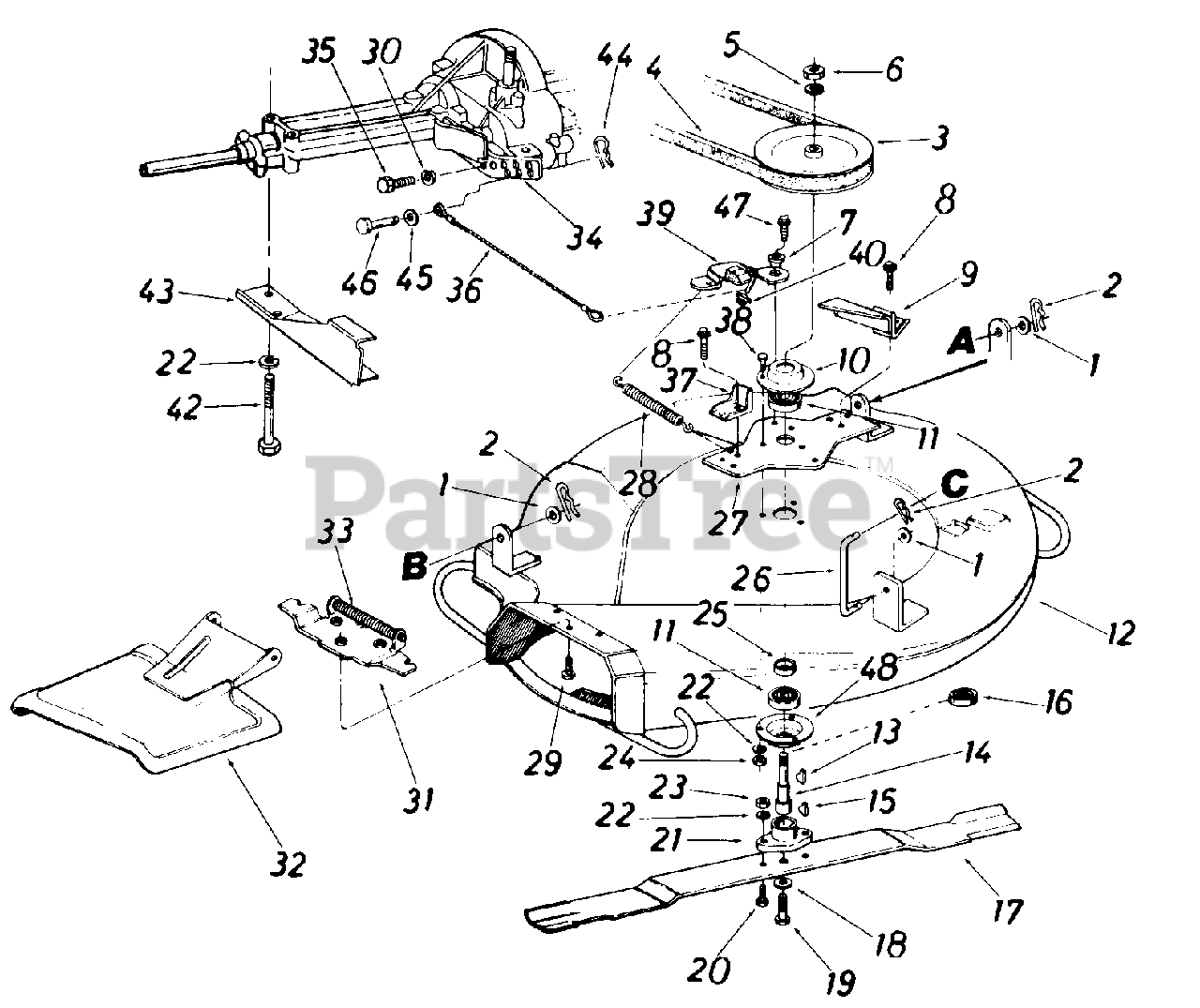

26" Side Discharge Mowing Deck Parts Diagram

  • Title

1

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .06

$3.99

$

In Stock, Qty 20+

0

2

MTD 714-0115

Cotter Pin 118" Dia. x 1.00"

$3.99

$

In Stock, only 1 left!

0

3

MTD 756-0395

Deck Pulley 6.0" O.D.

$

$

Not available

4

MTD 754-0264

"V"-Belt 1/2" x 52" Lg.
(Superseded to 954-0264)

$51.99

$

Usually ships in 3-6 days

0

5

MTD 736-0158

Fl-Wash. 5/8" I.D.

$4.49

$

In Stock, only 2 left!

0

6

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

7

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

8

MTD 710-0604

Hex Wash. Hd. Scr. 5/16-18 x.62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

9

MTD 15653

Belt Guard Ass'y.

$

$

Currently unavailable

10

MTD 08253

Bearing Housing 1.85" I.D.
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

11

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D. x .551
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

12

MTD 15628

26n Deck Ass'y.

$

$

Currently unavailable

13

MTD 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

14

MTD 711-0405

Blade Spindle

$

$

Not available

15

MTD 714-0365

#6 Hi-Pro Key 5/32" x 5/8" Dia.

$4.99

$

Usually ships in 3-6 days

0

16

MTD 13703

Bearing Shield

$

$

Not available

17

MTD 742-0147

26" Blade
(Superseded to 942-0147)

$

$

Not available

18

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$3.99

$

In Stock, Qty 13

0

19

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

20

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$3.99

$

In Stock, Qty 11

0

21

MTD 10769

Blade Adapter Kit

$

$

Not available

22

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 750-0142

Spacer.836" I.D. x 1.01" O.D. x .320
(Superseded to 950-0142)

$

$

Not available

26

MTD 747-0428

Deck Link 3.9" Lg.

$

$

Currently unavailable

27

MTD 15658

Belt Guard Plate Ass'y.

$

$

Currently unavailable

28

MTD 732-0157

Spring .38" O.D. x 3.25" Lg.

$13.99

$

Usually ships in 3-6 days

0

29

MTD 710-0599

Hex Self-Tap Scr. 1/4" x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

31

MTD 11396

Adapter Ass'y.-Chute

$

$

Not available

32

MTD 11634

Chute Deflector Ass'y. Comp.

$

$

Not available

33

MTD 732-0261

Torsion Spring

$

$

Not available

34

MTD 15626

Lower Inside Belt Guard
(Superseded to 15626B-0637)

$

$

Not available

35

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

36

MTD 727-0290

Brake Cable Ass'y.
(Superseded to 727-0290A)

$11.99

$

Usually ships in 3-6 days

0

37

MTD 10426

Belt Keeper Ass'y.

$

$

Not available

38

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.*

$

$

Not available

39

MTD 16053

Blade Brake Brkt. Ass'y.

$

$

Not available

40

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

42

MTD 710-0176

Hex Bolt 5/16-18 x 2.75"*

$4.49

$

In Stock, only 2 left!

0

43

MTD 15625

Lower Outside Engine Belt Guard

$

$

Not available

44

MTD 714-0104

Hairpin Cotter

$3.99

$

In Stock, Qty 20+

0

45

MTD 736-0142

Fl-Wash. 1/4" I.D. x .50" O.D.

$4.49

$

In Stock, only 1 left!

0

46

MTD 711-0701

Clevis Pin 1/4" x 1/2"
(Superseded to 911-0701)

$6.49

$

In Stock, only 1 left!

0

47

MTD 710-0623

Self-Tap Scr. 3/8 x .75" Lg.

$3.99

$

In Stock, Qty 8

0

48

MTD 15296

Open Brg. Housing 1.85"
(Superseded to 15296A)

$7.99

$

In Stock, only 1 left!

0
