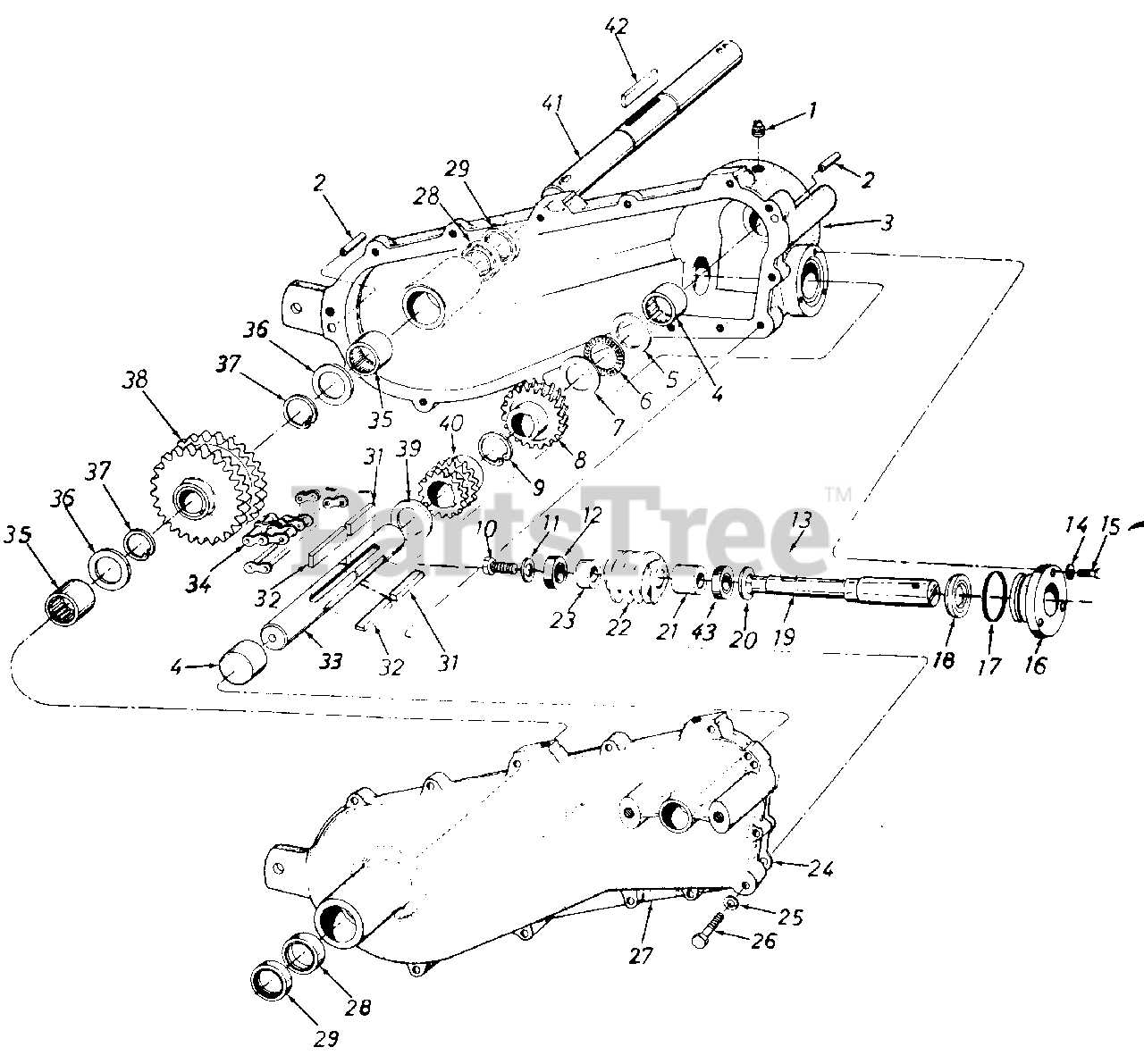

195-956-000 - MTD Tiller Attachment (1985) Parts02 Parts Diagram

Tiller Attachment

Parts02 Parts Diagram

  • Title

1

MTD 737-0102

Sq. Hd. Pipe Plug with Vent

$

$

Currently unavailable

2

MTD 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$11.99

$

In Stock, Qty 7

0

3

MTD 717-0379

Gear Case-L.H. Half

$

$

Currently unavailable

4

MTD 741-0127

Needle Bearing

$

$

Not available

5

MTD 741-0130

Thrust Race 1.25" I.D. x .126 THK.

$

$

Not available

6

MTD 741-0128

Thrust Bearing 1.25" I.D. x 1.977 O.D.

$

$

Not available

7

MTD 741-0129

Thrust Race 1.25" I.D. x .303 THK.

$

$

Currently unavailable

8

MTD 717-0381

Worm Wheel

$

$

Not available

9

MTD 715-0116

Snap Ring-for 1.25" Dia. Shaft

$

$

Not available

10

MTD 710-0627

Hex Lock Scr. 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Belleville Wash. 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

12

MTD 741-0241

Ball Bearing.669 I.D. x 1.850.D. x.55
(Superseded to 941-04068)

$20.99

$

Usually ships in 3-6 days

0

13

MTD 714-0126

#9 Hi-Pro-Key 3/16" x 3/4" Dia.

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0329

L.-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

15

MTD 710-0206

Hex Scr. 1/4-20 x .88" Lg.*

$4.49

$

Usually ships in 3-6 days

0

16

MTD 711-0661

End Cap

$

$

Currently unavailable

17

MTD 721-0160

"O"-Ring

$

$

Not available

18

MTD 721-0161

Oil Seal .875" I.D. x 1.503 O.D.

$

$

Not available

19

MTD 738-0369

Worm Input Shaft

$

$

Currently unavailable

20

MTD 736-0287

Fl.-Wash. .793 I.D. x 1.240 O.D.

$3.99

$

In Stock, Qty 20+

0

21

MTD 750-0341

Clutch Idler Bushing

$

$

Currently unavailable

22

MTD 717-0380

Worm Gear

$

$

Currently unavailable

23

MTD 750-0115

Spacer

$

$

Currently unavailable

24

MTD 721-0107

Gasket

$

$

Not available

25

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0380

Hex Scr. 5/16-18 x 1.75" Lg.*
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

27

MTD 717-0376

Gear Case-R.H. Half

$

$

Not available

28

MTD 721-0110

Oil Seal 1.25" I.D. x 2.004"O.D.

$

$

Not available

29

MTD 721-0109

Oil Seal 1.25" I.D. x 2.004"O.D.

$

$

Not available

31

MTD 714-0125

Sq. Key 5/16 x 1.25" Lg.*

$

$

Not available

32

MTD 714-0124

Sq. Key 5/16 x 1.75" Lg.*

$

$

Currently unavailable

33

MTD 711-0325

Worm Gear Shaft

$

$

Currently unavailable

34

MTD 713-0119

Chain w/master link #60 x 39

$

$

Currently unavailable

35

MTD 741-0126

Needle Brg. 1.25" I.D. x 1.927"O.D.

$

$

Not available

36

MTD 748-0159

Thrust Bearing

$

$

Not available

37

MTD 716-0116

Tru arc Snap Ring

$4.49

$

Usually ships in 3-6 days

0

38

MTD 717-0148

Sprocket-25 Teeth

$

$

Currently unavailable

39

MTD 748-0159

Thrust Bearing

$

$

Not available

40

MTD 717-0147

Sprocket 13 Tooth

$

$

Currently unavailable

41

MTD 738-0374

Tine Shaft

$

$

Currently unavailable

42

MTD 714-0123

Sq. Key 5/16" x 2.0" Lg.*

$

$

Currently unavailable

43

MTD 741-0240

Ball Bearing.787 I.D. x 2.0480.D. x.59
(Superseded to 941-04044)

$27.99

$

In Stock, only 1 left!

0
