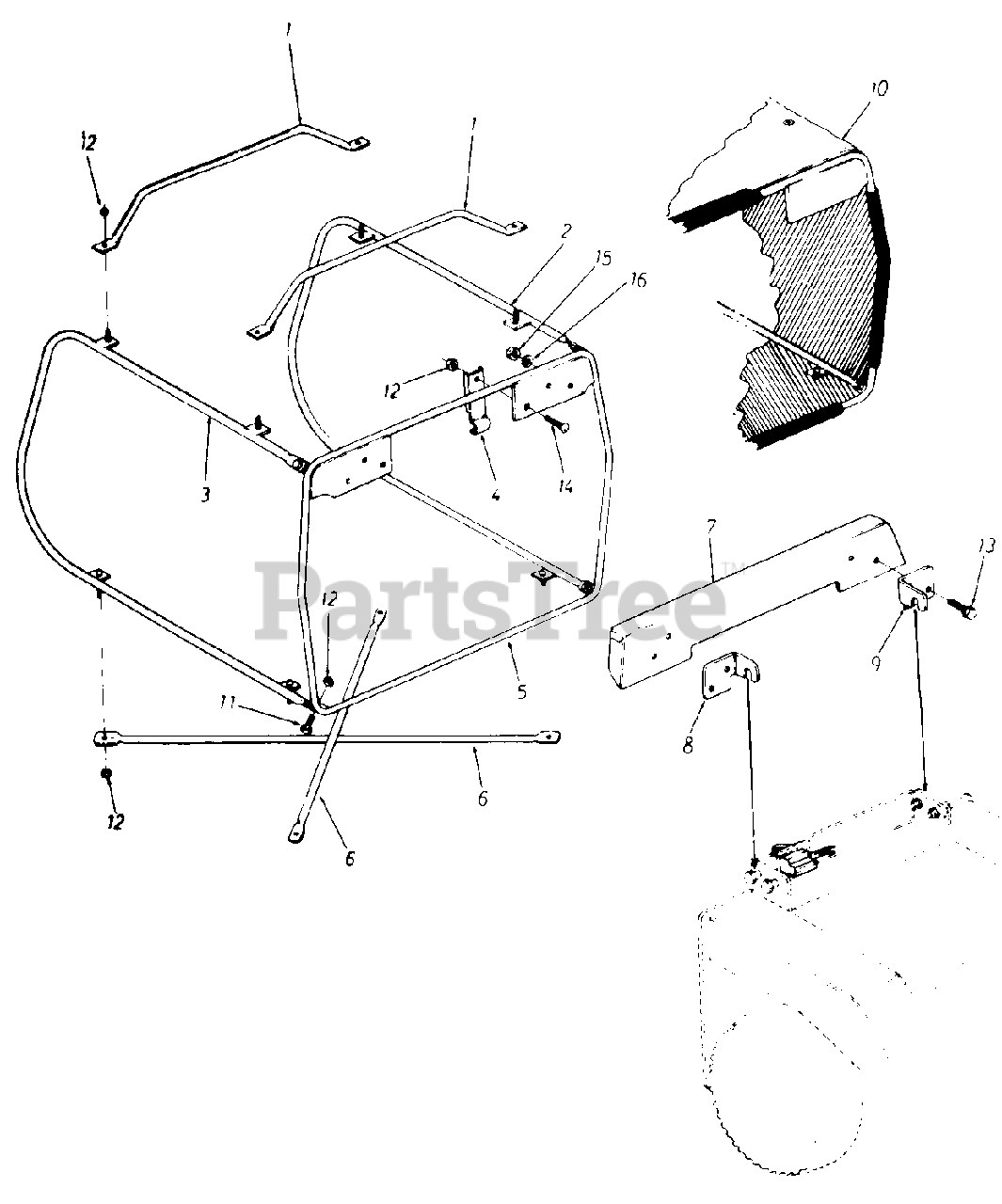

196-018-000 - MTD Grass Catcher Assembly (1986) Grass Catcher Parts Diagram

Grass Catcher Assembly

Grass Catcher Parts Diagram

  • Title
1

MTD 749-0221

Catcher Handles

$

$

Not available

2

MTD 12889

Catcher Side Frame Ass'y. L.H.

$

$

Not available

3

MTD 12890

Catcher Side Frame Ass'y. R.H.

$

$

Not available

4

MTD 12904

Switch Actuator Bracket

$

$

Not available

5

MTD 12887

Catcher Frame Ass'y.

$

$

Not available

6

MTD 749-0220

Bottom Cross Brace

$

$

Not available

7

MTD 12891

Dust Cover

$

$

Not available

8

MTD 12574

Hinge- R.H.

$

$

Not available

9

MTD 12573

Hinge- L.H.

$

$

Not available

10

MTD 764-0164

Grass Bag

$

$

Not available

11

MTD 710-0258

Hex Scr. 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0107

Hex Cent. L-Nut 1/4-2 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

13

MTD 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.*

$

$

Not available

14

MTD 710-0134

Carriage Bolt 1/4-20 x .62" Lg.*

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
