196-064-000 - White Outdoor Twin Bag Grass Collector (1986) Rear Bagging Grass Catcher Parts Diagram

Twin Bag Grass Collector

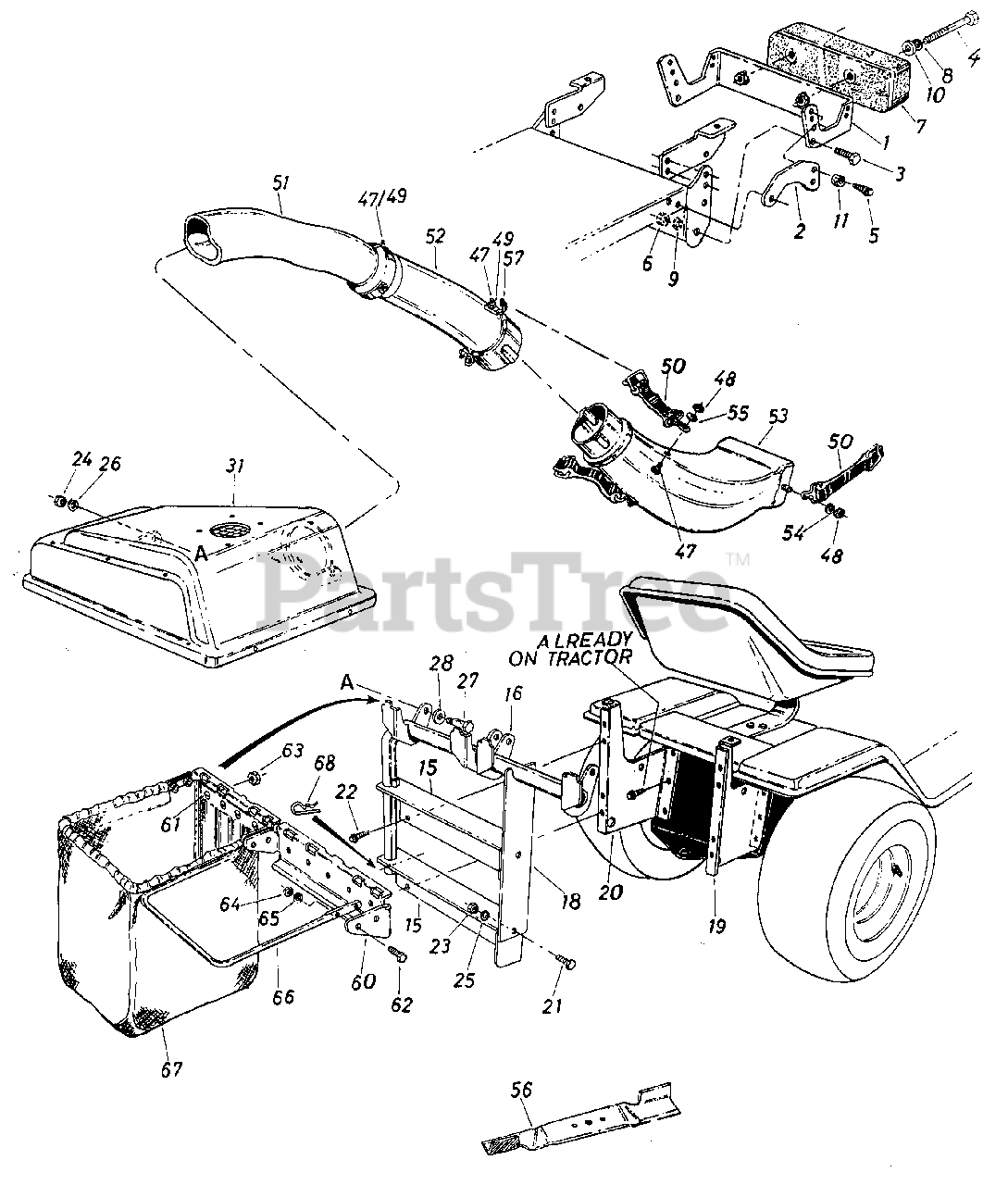

Rear Bagging Grass Catcher Parts Diagram

  • Title

1

White Outdoor 15873

Weight Brkt. Ass'y.

$

$

Not available

2

White Outdoor 16024

Weight Brkt. Tie Strap

$

$

Not available

3

White Outdoor 710-0314

Hex Bolt 7/16-20 x 1.0" Lg.*

$4.49

$

In Stock, only 3 left!

0

4

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$13.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0915

Hex AB Tap Scr. 5/16-18 x 1.0"

$

$

Not available

6

White Outdoor 712-0240

Hex Jam Nut 7/16-20 Thd .
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 723-0367

Front Counter Weight 38 Ibs.

$

$

Not available

8

White Outdoor 736-0105

Bell.-Wash. 400" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 736-0171

L.-Wash. 7/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 736-0280

Fl.-Wash. .390" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$7.99

$

Usually ships in 3-6 days

0

11

White Outdoor 748-0298

Spacer

$

$

Not available

15

White Outdoor 16587

Catcher Support Tube Mtg. Brkt.
(Superseded to 16587D-0637)

$76.99

$

Usually ships in 3-6 days

0

16

White Outdoor 16588

Catcher Support Tube Ass'y.
(Superseded to 16592-0637)

$180.99

$

Usually ships in 3-6 days

0

18

White Outdoor 16593

Catcher Latch and N Support Brkt.
(Superseded to 783-0601-0637)

$32.99

$

Usually ships in 3-6 days

0

19

White Outdoor 16610

Grass Catcher Support Brkt.-R.H.
(Superseded to 16610C-0637)

$

$

Not available

20

White Outdoor 16611

Grass Catcher Support Brkt.-L.H.
(Superseded to 16611C-0637)

$48.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 710-0869

Hex Self-Tap Scr. 1/4-20 x .62" Lg.

$

$

Not available

23

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

24

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 736-0169

L.Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

27

White Outdoor 738-0380

Shld. Bolt 3/8-16 x . 500" Dia.

$7.49

$

In Stock, Qty 18

0

28

White Outdoor 736-0253

Bell.-Wash. .505" I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 16594

Grass Catcher Cover Ass'y.

$

$

Not available

47

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

48

UNKNOWN

$

$

Not available

49

White Outdoor 712-0324

Hex Ins. L.-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

50

White Outdoor 723-0383

Retainer Strap Ass'y.
(Superseded to 923-0383)

$14.99

$

In Stock, Qty 13

0

51

White Outdoor 731-0825

Catcher Elbow

$

$

Not available

52

White Outdoor 731-0826

Catcher Tube
(Superseded to 731-0899E)

$103.99

$

In Stock, only 3 left!

0

53

White Outdoor 731-0827

Discharge Chute
(Superseded to 731-0827D)

$133.99

$

Usually ships in 3-6 days

0

54

White Outdoor 736-0175

L.-Wash. .270" I.D. x .57" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

55

UNKNOWN

$

$

Not available

56

White Outdoor 742-0473

High-Lift Blade 19.38" x 3"
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 7

0

57

White Outdoor 16606

Retainer Hook Brkt.
(Superseded to 96606)

$6.99

$

In Stock, Qty 14

0

60

White Outdoor 16591

Bag Frame Hanger Brkt.
(Superseded to 16591A-0637)

Variations

White Outdoor 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

61

White Outdoor 710-0192

Truss Mach. Scr. #10-24 x .38" Lg.

$3.49

$

In Stock, Qty 11

0

62

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.49

$

In Stock, Qty 9

0

63

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

64

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.*

$6.49

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

66

White Outdoor 749-0701

Catcher Bag Frame
(Superseded to 749-0701A-0637)

Variations

White Outdoor 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

67

White Outdoor 764-0221

Grass Catcher Bag
(Superseded to 964-0221)

$70.99

$

In Stock, Qty 20+

0

68

White Outdoor 714-0117

Int. Cotter Pin

$3.99

$

In Stock, Qty 11

0
