196 (127-196-100) - Cub Cadet Walk-Behind Mower (1987) 21" Rotary Mower Part 1 Parts Diagram

Walk-Behind Mower

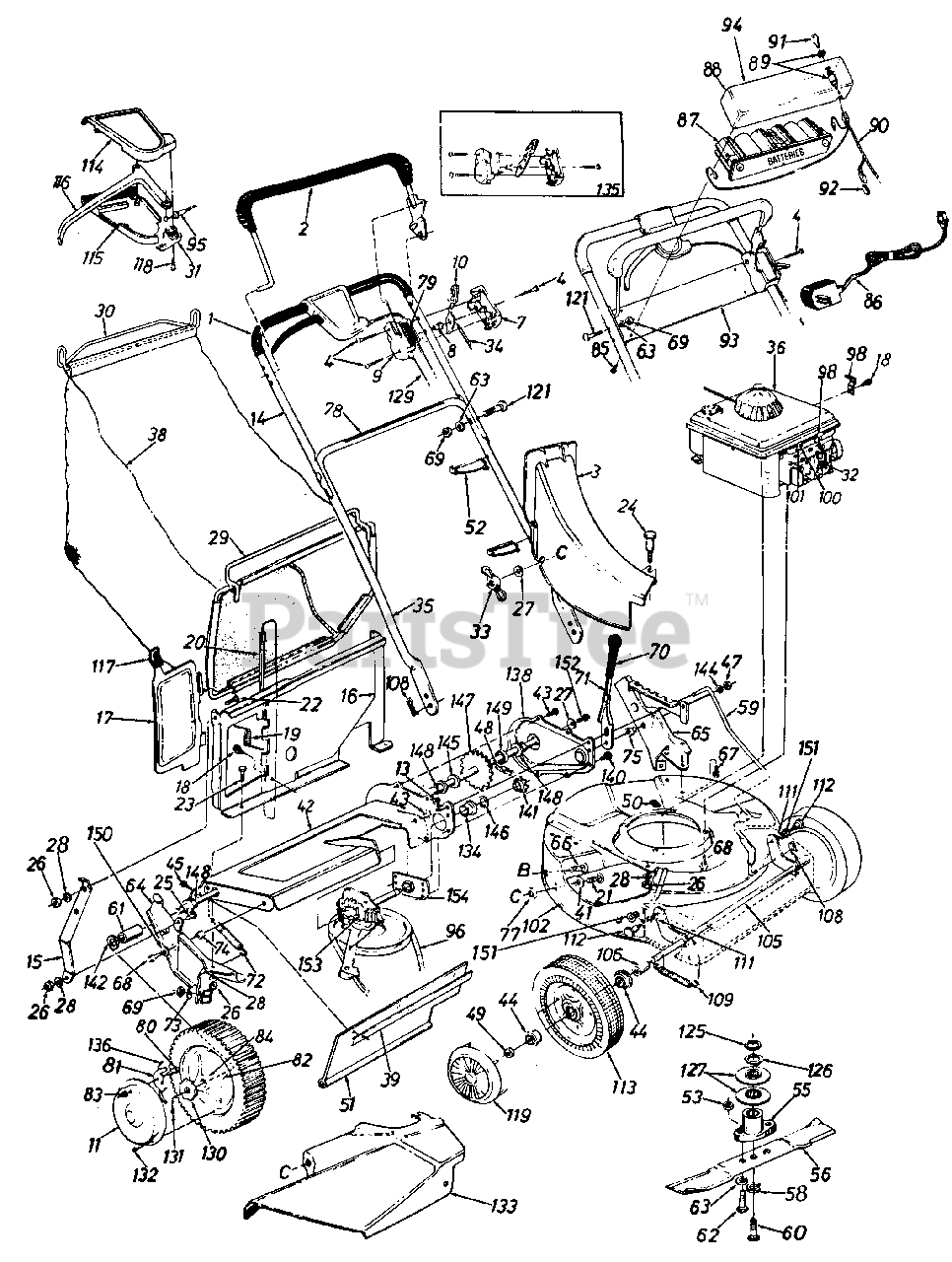

21" Rotary Mower Part 1 Parts Diagram

  • Title

1

Cub Cadet 718-0145

GRIP-SHRINK-25 IN

$

$

Currently unavailable

2

Cub Cadet 731-0609

BAIL-LH

$

$

Not available

3

Cub Cadet 731-0733

CHUTE ASSY-TOP DISCH

$

$

Not available

4

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, Qty 6

0

7

Cub Cadet 731-0817

PANEL HALF-CONTROL

$

$

Not available

8

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

9

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

10

Cub Cadet 731-0528

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

11

Cub Cadet 10647

HUB CAP

Note: (Rear)

$

$

Not available

13

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 749-0437

HANDLE-UPPER-CHROME

$

$

Currently unavailable

15

Cub Cadet 16129

BRACKET-PANEL SUP
(Superseded to 16129A-0637)

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 16140

PANEL ASSY-CATCHER

$

$

Not available

17

Cub Cadet 16145

DOOR-TOP DISCHARGE

$

$

Currently unavailable

18

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-0483

SPRING-TORSION
(Superseded to 732-0483A)

$9.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 747-0514

ROD

$

$

Not available

21

Cub Cadet 710-0134

BOLT-CARRIAGE 1/4-20 X .62

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0225

SCREW-TRUSS MACH

$

$

Currently unavailable

23

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 738-0704

SCREW-SHLD

$16.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 13

0

28

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

29

Cub Cadet 747-0494

FRAME-FRONT

$

$

Not available

30

Cub Cadet 747-0495

HANDLE-GRASSCATCHER

$

$

Not available

31

Cub Cadet 731-0619

CAP-CABLE MTG

$

$

Not available

32

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

$

$

Not available

33

Cub Cadet 712-0109

NUT-INS WING L-1/4-20

$

$

Not available

34

Cub Cadet 746-0633

WIRE-THROTTLE 58 LG
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

35

Cub Cadet 749-0505

HANDLE-LOWER PAINTED
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 7

0

36

Note: Engine

$

$

Not available

38

Cub Cadet 764-0212

BAG-GRASS-CONV

$

$

Currently unavailable

39

Cub Cadet 14835

STRIP-RETAINING

$

$

Not available

41

Cub Cadet 736-0204

WASHER-FL-.344 ID X .62 OD X .033

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 17055

AXLE ASSY-CHAIN
(Superseded to 17055B)

$

$

Not available

43

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0296

NUT-HEX LOCK 3/8-24
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

Cub Cadet 713-0353

#48 CHAIN 1/2 PITCH
(Superseded to 913-0353)

$

$

Not available

49

Cub Cadet 712-0346

NUT-HEX INS L-1/2-20

$4.49

$

In Stock, Qty 19

0

50

Cub Cadet 731-0564

PLUG

$

$

Not available

51

Cub Cadet 731-0672

FLAP-RR
(Superseded to 731-0672A)

$31.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 726-0240

TIE-CABLE
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

53

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

55

Cub Cadet 748-0317

ADAPTER-BLADE

$

$

Not available

56

Cub Cadet 742-0307

BLADE-21IN

$

$

Not available

58

Cub Cadet 736-0411

WASHER-BELL BLADE

$

$

Not available

59

Cub Cadet 747-0510

ROD-HGT ADJ 1.50 X 19.42

$

$

Not available

60

Cub Cadet 710-0757

SCREW-HEX 7/16-20 X 1.50

$8.99

$

In Stock, Qty 5

0

61

Cub Cadet 748-0190

SPACER-.513 ID X .703 OD X .69

$5.99

$

In Stock, only 1 left!

0

62

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

$3.99

$

In Stock, Qty 11

0

63

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 16136

BRACKET ASSY-HDLE-RH
(Superseded to 16136C-0637)

$

$

Not available

65

Cub Cadet 16137

BRACKET ASSY-HDLE-LH
(Superseded to 16137C-0637)

$

$

Not available

66

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.49

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0654

SCREW-HEX R
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

69

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 720-0143

GRIP

$

$

Not available

71

Cub Cadet 732-0473

LEVER-HGT ADJ
(Superseded to 732-0473B)

$

$

Not available

72

Cub Cadet 732-0481

SPRING-EXTENSION
(Superseded to 932-0481)

$

$

Not available

73

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 750-0526

SPACER

$4.49

$

In Stock, Qty 10

0

75

Cub Cadet 750-0624

SPACER-SHLD .500 X .100

$

$

Not available

77

Cub Cadet 726-0233

RETAINER-BOLT 1/4X.50 OD

$3.99

$

In Stock, Qty 11

0

78

Cub Cadet 777-5776

LABEL

$

$

Currently unavailable

79

Cub Cadet 777-5774

DECAL

$

$

Currently unavailable

80

Cub Cadet 738-0137

SCREW-SHLD .342 DIA X .268

$

$

Not available

81

Cub Cadet 748-0188

PAWL
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 18

0

82

Cub Cadet 734-1412

WHEEL ASSY W/TIRE-T-TREAD

$

$

Not available

83

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.49

$

In Stock, Qty 20+

0

84

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 710-0969

SCREW-TAP .215 X 1

$4.49

$

In Stock, only 3 left!

0

86

Cub Cadet 725-0727

CHARGER-BATTERY
(Superseded to 925-0727)

$72.99

$

In Stock, only 1 left!

0

87

Cub Cadet 725-1276

BATTERY PACK
(Superseded to 925-1276)

$172.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 731-0891

TRAY-BATTERY-UPPER
(Superseded to 731-0891A)

$

$

Not available

89

Cub Cadet 725-0873

SWITCH-KEY
(Superseded to 925-0873)

$

$

Not available

90

Cub Cadet 725-1283

WIRE HARNESS

$

$

Currently unavailable

91

Cub Cadet 725-0201

KEY-IGN (SET OF TWO)
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

92

Cub Cadet 725-1206

PLUG
(Superseded to 925-1206)

$

$

Not available

93

Cub Cadet 16542

TRAY-BATTERY-LOWER

$

$

Currently unavailable

94

Cub Cadet 777-6575

STARTING LABEL

$

$

Currently unavailable

95

Cub Cadet 746-0650

CABLE-CLUTCH X 50.0
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 754-0343

BELT-V 3/8 X 31.0
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 6

0

98

Cub Cadet 12894

CLAMP-CASING

$

$

Not available

100

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

101

Cub Cadet 751-0442

CLAMP-CASING

$

$

Not available

102

Cub Cadet 17075

DECK ASSEMBLY-21IN

Note: Color Code 499

Variations

Cub Cadet 17075-0638

DECK ASSEMBLY-21IN(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

105

Cub Cadet 10662

AXLE ASSY-FR-290

$

$

Currently unavailable

106

Cub Cadet 711-0313

SLEEVE

$

$

Not available

108

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$3.99

$

In Stock, Qty 20+

0

109

Cub Cadet 732-0482

SPRING-EXTENSION

$

$

Not available

111

Cub Cadet 736-0221

WASHER-INTERN L 3/8 X.56 OD X .018

$

$

Not available

112

Cub Cadet 738-0705

SCREW-SHLD
(Superseded to 938-0705)

$

$

Not available

113

Cub Cadet 734-0922

WHEEL ASSY W/TIRE

$

$

Not available

114

Cub Cadet 731-0617

COVER-HALF-CONTROL
(Superseded to 731-0617A)

$

$

Not available

115

Cub Cadet 731-0618

COVER-HALF CONT-LWR
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

116

Cub Cadet 731-0620

LEVER-CONTROL
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

117

Cub Cadet 720-0208

CUP-DOOR

$

$

Not available

118

Cub Cadet 710-0841

SCREW-FL C-SUNK AB

$3.99

$

Usually ships in 3-6 days

0

119

Cub Cadet 731-0354

HUB CAP-BLACK

$

$

Not available

121

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 X 1.38

$

$

Not available

125

Cub Cadet 736-0409

WASHER-SERRATED
(Superseded to 936-0409)

$

$

Not available

126

Cub Cadet 736-0408

WASHER-WAVE
(Superseded to 936-0447)

$3.99

$

In Stock, Qty 20+

0

127

Cub Cadet 756-0502

PULLEY HALF-SERRATED
(Superseded to 956-0502)

$

$

Not available

129

Cub Cadet 746-0477

CABLE-CONTROL
(Superseded to 946-0477A)

$

$

Not available

130

Cub Cadet 748-0318

RATCHET
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 8

0

131

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 1 left!

0

132

Cub Cadet 710-0748

SCREW-PAN HD TAPP

$

$

Not available

133

Cub Cadet 16559

DEFLECTOR ASSY

Note: Color Code 499

$

$

Not available

134

Cub Cadet 748-0249

BUSHING-FL

$

$

Not available

135

Cub Cadet 753-0430

KIT-THROTTLE CONTROL

$

$

Not available

136

Cub Cadet 10622

SPRING-NYLON
(Superseded to 10622BP)

$4.49

$

In Stock, Qty 20+

0

138

Cub Cadet 17053

COVER-CHAIN

$

$

Not available

140

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

141

Cub Cadet 713-0400

SPROCKET-7T

$

$

Not available

142

Cub Cadet 736-0326

WASHER-FL

$4.49

$

In Stock, Qty 20+

0

144

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$3.99

$

In Stock, Qty 20+

0

145

Cub Cadet 736-0326

WASHER-FL

$4.49

$

In Stock, Qty 20+

0

146

Cub Cadet 736-0336

WASHER-FL
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 20+

0

147

Cub Cadet 738-0719

SHAFT ASSY-REAR
(Superseded to 938-0719A)

$

$

Not available

148

Cub Cadet 741-0324

BEARING-HEX FLANGE .506 ID
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

149

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$3.99

$

In Stock, only 2 left!

0

150

Cub Cadet 736-0179

WASHER-FL-.531 ID X 1.25 OD X 1.00

$4.49

$

In Stock, Qty 20+

0

151

Cub Cadet 741-0491

BEARING-NYLINER

$4.99

$

In Stock, Qty 20+

0

152

Cub Cadet 710-0751

SCREW-1/4-20 X .62

Note: (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

Cub Cadet 717-0417

TRANSMISSION-COMP
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

Cub Cadet 16500

BEARING-CUP HEX
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

Cub Cadet ~8196-100-7

Note: Hardware Pack

$

$

Currently unavailable
