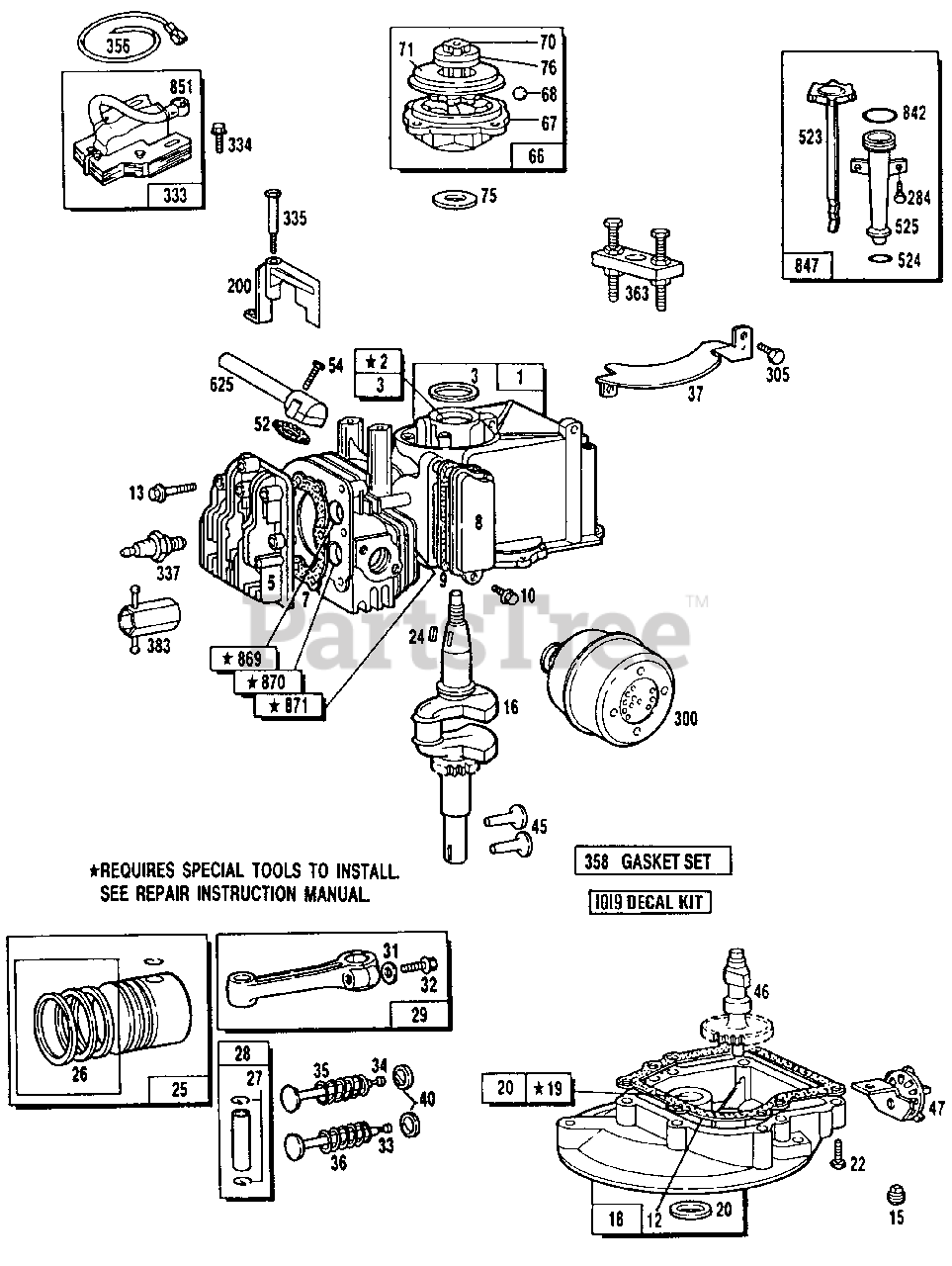

196 (127-196-100) - Cub Cadet Walk-Behind Mower Engine (1987) Max 4.0 HP-110707-3113-01 Part 1 Parts Diagram

Walk-Behind Mower Engine

Max 4.0 HP-110707-3113-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-398458

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

$21.99

$

In Stock, Qty 6

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-212996

Head-Cylinder

$16.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-270836

Gasket-Cylinder Hd.

Note: (Included in Gasket Set-Part No. 391662)

$

$

Not available

8

Cub Cadet BS-298383

Breather-Valve Chamber

$

$

Not available

9

Cub Cadet BS-270239

Gasket-Valve Cover

Note: (Included in Gasket Set-Part No. 391662)

$

$

Not available

10

Cub Cadet BS-93394

Screw-Breather
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-270833

Gasket-Crankcase-.015" Thick (Standard)
(Superseded to BS-692218)

Note: (Included in Gasket Set-Part No. 391662)

$

$

Not available

Cub Cadet BS-270895

Gasket-Crankcase-.005" Thick

Note: (Included in Gasket Set-Part No. 391662)

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270896

Gasket-Crankcase-.009" Thick

Note: (Included in Gasket Set-Part No. 391662)

$5.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-93111

Screw-Cylinder Hd. (1-15/16" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, only 2 left!

0

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-262340

Crankshaft

$172.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-491053

Base-Engine

$

$

Currently unavailable

19

Cub Cadet BS-293709

Bushing-Engine Base

$11.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391485

Seal-Oil

$9.99

$

In Stock, only 1 left!

0

22

Cub Cadet BS-93032

Screw-Base Mtg. Sem

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-391650

Piston Ass'y.-Standard

$63.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391651

Piston Ass'y.-.010" O.S.

$

$

Currently unavailable

Cub Cadet BS-391652

Piston Ass'y.-.020" O.S.

$

$

Currently unavailable

Cub Cadet BS-391653

Piston Ass'y.-.030" O.S.

$

$

Currently unavailable

26

Cub Cadet BS-391654

Ring Set-Std. Piston

$31.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391656

Ring Set-.010" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-391658

Ring Set-.020" O.S. Piston

$

$

Currently unavailable

Cub Cadet BS-391660

Ring Set-.030" O.S. Piston

$

$

Currently unavailable

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-391649

Pin Assembly-Piston- Standard

$

$

Currently unavailable

Cub Cadet BS-394861

Pin Assembly-Piston- .005" O.S.

$

$

Currently unavailable

29

Cub Cadet BS-391640

Rod Assembly-Connecting

$

$

Not available

31

Cub Cadet BS-222282

Washer-Flat (One for Each Screw)

$

$

Currently unavailable

32

Cub Cadet BS-93670

Screw-Connecting Rod

$

$

Currently unavailable

33

Cub Cadet BS-212004

Valve-Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-261233

Valve-Intake

$

$

Currently unavailable

35

Cub Cadet BS-260552

Spring-Intake Valve

$5.49

$

In Stock, Qty 9

0

36

Cub Cadet BS-26478

Spring-Exhaust Valve

$6.49

$

In Stock, Qty 5

0

37

Cub Cadet BS-223150

Guard-Flywheel

$

$

Currently unavailable

40

Cub Cadet BS-93312

Retainer-Valve Spring Used with valves with groove in stem.
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

45

Cub Cadet BS-261250

Tappet-Valve

$

$

Currently unavailable

46

Cub Cadet BS-395856

Gear-Cam

$

$

Currently unavailable

47

Cub Cadet BS-294652

Oil Slinger Gear and Bracket

$

$

Not available

52

Cub Cadet BS-270844

Gasket-Intake Elbow

Note: (Included in Gasket Set-Part No. 391662)

$13.99

$

Usually ships in 2-12 days

0

54

Cub Cadet BS-93485

Screw-Intake Elbow Mounting

$

$

Not available

66

Cub Cadet BS-394558

Clutch Assembly-Rewind Starter
(Superseded to BS-399671)

$34.99

$

In Stock, Qty 19

0

67

Cub Cadet BS-394897

Housing-Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298436

Ratchet-Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-221653

Washer-Clutch Retainer

$

$

Currently unavailable

75

Cub Cadet BS-220865

Washer

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer-Ratchet Sealing

$

$

Not available

200

Cub Cadet BS-68388

Blade-Governor

$26.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94073

Screw-Clamp Mounting
(Superseded to BS-691002)

$8.49

$

In Stock, only 2 left!

0

300

Cub Cadet BS-394569

Muffler-Exhaust

$

$

Not available

305

Cub Cadet BS-94153

Screw-Blower Housing Mounting Sem

$

$

Not available

333

Cub Cadet BS-398593

Armature-Magneto
(Superseded to BS-591420)

$53.99

$

In Stock, Qty 13

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

335

Cub Cadet BS-93435

Screw-Armature and Governor Blade Mounting Sem

$

$

Not available

337

Cub Cadet BS-298809

Plug-Spark (with Gasket) 1-1/2" High-37-42 M.M.

$

$

Currently unavailable

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-391662

Gasket Set

$40.99

$

In Stock, only 1 left!

0

363

Cub Cadet BS-19069

Puller-Flywheel (Optional Accessory)

$23.99

$

Usually ships in 2-12 days

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

523

Cub Cadet BS-398033

Cap and Dipstick-Oil Filler

$

$

Currently unavailable

524

Cub Cadet BS-271484

Seal-Filler Tube

$

$

Currently unavailable

525

Cub Cadet BS-280508

Tube-Oil Filler

$

$

Not available

625

Cub Cadet BS-397973

Tube-Fuel Intake

$

$

Currently unavailable

842

Cub Cadet BS-270920

Seal-Filler Cap
(Superseded to BS-691870)

$4.49

$

In Stock, only 2 left!

0

847

Cub Cadet BS-398031

Filler Group-Oil

$

$

Currently unavailable

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-210879

Seat-Intake Valve (Standard)

$6.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-211291

Seat-Exhaust Valve (Standard)

$

$

Not available

871

Cub Cadet BS-231349

Guide-Exhaust Valve

$

$

Currently unavailable

1019

Cub Cadet BS-491080

Decal (Label) Kit

$

$

Currently unavailable
