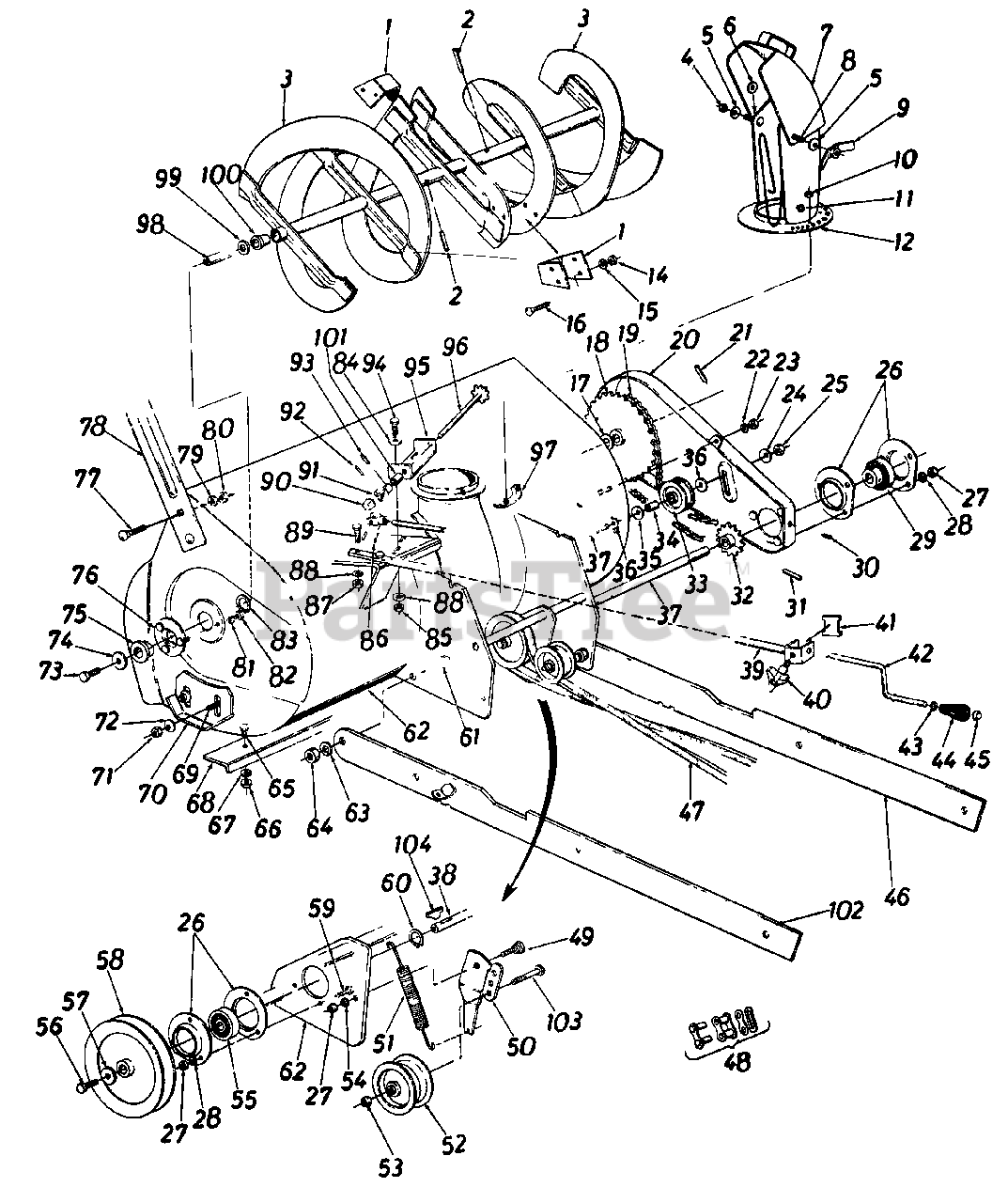

196-486-000 - White Outdoor 36" Snow Thrower Attachment (1986) Chute Assembly Parts Diagram

36" Snow Thrower Attachment

Chute Assembly Parts Diagram

  • Title

1

05023

Spiral Plate

$

$

Not available

2

White Outdoor 715-0118

Spring Pin Spir. 5/16 x 1.75" Lg.

$13.99

$

In Stock, Qty 10

0

3

05375

Spiral Ass'y.

$

$

Not available

4

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

5

White Outdoor 736-0105

Bell. Wash.

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 736-0179

Fl-Wash.

$4.99

$

In Stock, Qty 20+

0

7

05225

Top Chute Ass'y.

$

$

Not available

8

White Outdoor 710-0260

Car. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

9

05140

Chute Wing Ass'y.

$

$

Not available

10

White Outdoor 712-0107

HexCent. L-Nut1/4-20Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

White Outdoor 726-0111

Push Cap.188" Dia. Rod

$

$

Not available

12

05766

Chute Ass'y.

$

$

Not available

14

White Outdoor 712-0267

Hex Nut 5/16-18Thd.*
(Superseded to 912-3010)

$

$

Not available

15

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-0260

Car. Bolt 5/16-18x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0163

Fl-Wash.

$4.99

$

In Stock, Qty 13

0

18

White Outdoor 713-0177

Sprocket Hub Ass'y.-40 Teeth

$

$

Not available

19

White Outdoor 713-0189

#420 Chain x 1/2" Pitch-77 Links

$

$

Not available

20

White Outdoor 05379

Chain Guard Ass'y.

$

$

Not available

21

White Outdoor 715-0118

Spring Pin Spir.-5/16

$13.99

$

In Stock, Qty 10

0

22

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

24

White Outdoor 736-0105

Bell. Wash.

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 712-0130

Hex Ins. L-Nut3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

26

White Outdoor 05244

Bearing Housing
(Superseded to 05244B)

$25.99

$

In Stock, only 2 left!

0

27

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

28

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 741-0162

Self Aligning Brg. w/ Set Scr.
(Superseded to 941-0162)

$

$

Not available

30

Comes with Ref. No. 29

$

$

Not available

31

White Outdoor 715-0118

Spring Pin Spir.-5/16x1.75

$13.99

$

In Stock, Qty 10

0

32

White Outdoor 713-0188

14 Teeth Sprocket Ass'y.

$70.99

$

Usually ships in 3-6 days

0

33

White Outdoor 756-0192

1.875" Dia. Flat Idler

$

$

Not available

34

White Outdoor 750-0252

Idler Spacer
(Superseded to 950-0252)

$22.99

$

In Stock, Qty 5

0

35

White Outdoor 736-0235

F I-Wash .
(Superseded to 736-0247)

$10.99

$

In Stock, Qty 20+

0

36

White Outdoor 736-0300

Fl-Wash.

$4.99

$

In Stock, Qty 20+

0

37

White Outdoor 710-0427

Hex Scr. 3/8-16x2.00" Lg.*
(Superseded to 710-3144)

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 738-0244

Drive Shaft

$

$

Not available

39

05922

Crank Support Tubing Ass'y.

$

$

Not available

40

White Outdoor 720-0170

Hand Knob 5/16-18 Thd.

$11.99

$

In Stock, Qty 15

0

41

05403

Chute Crank Brkt.

$

$

Not available

42

05120

Chute Crank

$

$

Not available

43

White Outdoor 736-0117

Fl-Wash.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

44

White Outdoor 720-0171

Knob-Black 3/8" Dia. Hole
(Superseded to 920-0171)

$16.99

$

In Stock, only 1 left!

0

45

White Outdoor 726-0100

Push Nut 3/8" Rod

$4.99

$

In Stock, only 2 left!

0

46

05837

Linkage Arm Ass'y.

$

$

Not available

47

White Outdoor 754-0236

"V"-Belt 1/2"x85" Lg. (Kevlar)
(Superseded to 954-0236)

$

$

Not available

48

White Outdoor 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

49

White Outdoor 738-0140

Shoulder Scr.

$5.99

$

In Stock, Qty 8

0

50

05724

Idler Brkt. Ass'y.

$

$

Not available

51

732-0383

Extension Spring

$

$

Not available

52

White Outdoor 756-0217

Fl. Idler with Flange
(Superseded to 956-0217)

$23.99

$

In Stock, only 3 left!

0

53

White Outdoor 712-0130

Hex Ins. Jam Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

54

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

White Outdoor 741-0174

Self Aligning Brg.
(Superseded to 941-0174)

$133.99

$

Usually ships in 3-6 days

0

56

White Outdoor 710-0538

Hex Scr. 5/16-18x .62" Lg.

$4.99

$

In Stock, only 2 left!

0

57

White Outdoor 736-0231

F l-Wash.

$4.99

$

In Stock, Qty 19

0

58

756-0215

5.50 O.D. x 5/8 Pulley

$

$

Not available

59

White Outdoor 710-0198

Hex Sems Scr. 5/16-18 x .75"
(Superseded to 910-0198)

$

$

Not available

60

White Outdoor 716-0119

Snap Ring for .75 Dia. Shaft
(Superseded to 716-3001)

$4.99

$

In Stock, only 2 left!

0

61

White Outdoor 710-0474

Hex Scr. 1/2-13x1.25" Lg.*

$

$

Not available

62

05432

Spiral Housing Ass'y.

$

$

Not available

63

White Outdoor 736-0921

L-Wash. 1/2" Scr.*

$4.99

$

In Stock, Qty 14

0

64

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.*

$4.99

$

In Stock, Qty 20+

0

65

White Outdoor 710-0260

Car. Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

67

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

68

White Outdoor 05378

Shave Plate
(Superseded to 05378-0637)

Variations

05378-0637

White Outdoor 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$83.99

$

Usually ships in 3-6 days

0

$83.99

$

Usually ships in 3-6 days

0

69

White Outdoor 710-0389

Car. Bolt3/8-16x .75" Lg.*

$4.99

$

Usually ships in 3-6 days

0

70

White Outdoor 05002

Slide Shoe
(Superseded to 05002-0637)

Variations

05002-0637

White Outdoor 05002-0637

SLIDE SHOE - POWDER BLACK (0637)

$

$

Not available

$

$

71

White Outdoor 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

72

White Outdoor 736-0105

Bell. Wash.

$4.99

$

In Stock, Qty 20+

0

73

White Outdoor 710-0538

Hex Scr. 5/16-18x .62" Lg.

$4.99

$

In Stock, only 2 left!

0

74

White Outdoor 736-0227

Fl-Wash.

$6.99

$

In Stock, Qty 9

0

75

White Outdoor 741-0170

Flange Brg. with Flats
(Superseded to 941-0170)

$20.99

$

In Stock, only 4 left!

0

76

White Outdoor 05360

Brg. Housing Ass'y.
(Superseded to 05361)

$

$

Not available

77

White Outdoor 710-0260

Car. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

78

White Outdoor 05139

Guide Blade
(Superseded to 790-00181-0637)

$45.99

$

Usually ships in 3-6 days

0

79

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

80

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

81

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

82

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

83

White Outdoor 716-0121

Snap Ring for 1.50" Dia. Shaft
(Superseded to GW-9502)

$15.99

$

In Stock, only 1 left!

0

84

White Outdoor 736-0242

Bell. Wash.

$4.99

$

In Stock, Qty 20+

0

85

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

86

White Outdoor 714-0111

Cotter Pin 3/32 x 1.00" Lg.*

$5.49

$

In Stock, Qty 20+

0

87

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

88

White Outdoor 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

89

White Outdoor 710-0442

HexScr.5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

90

White Outdoor 711-0584

Joint Block

$

$

Not available

91

White Outdoor 05066

Joint Brkt. Ass'y.

$

$

Not available

92

White Outdoor 715-0139

Spring Pin Roll 3/16" x .81" Lg.*
(Superseded to 915-0247)

$

$

Not available

93

White Outdoor 715-0103

Spring Pin Roll 1/8x .75" Lg.*

$

$

Not available

94

White Outdoor 710-0118

Hex Scr. 5/16-18x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

95

05402

Chute Brkt.

$

$

Not available

96

White Outdoor 05118

Sprocket Shaft Ass'y.

$

$

Not available

97

White Outdoor 05031

Chute Flange Keeper Ass'y.

$

$

Not available

98

White Outdoor 738-0229

Spiral Axle

$

$

Not available

99

White Outdoor 736-0250

Fl-Wash.

$4.99

$

In Stock, Qty 19

0

100

White Outdoor 05136

Plastic Bushing

$

$

Not available

101

White Outdoor 748-0193

Spacer .380 I.D. x .630 O.D. x .565
(Superseded to 948-0193)

$

$

Not available

102

05838

Linkage Arm Ass'y.-R. H.

$

$

Not available

103

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$5.49

$

In Stock, Qty 20+

0

104

White Outdoor 714-0388

#61 Hi-Pro Key
(Superseded to 914-0388)

$8.49

$

In Stock, Qty 11

0
