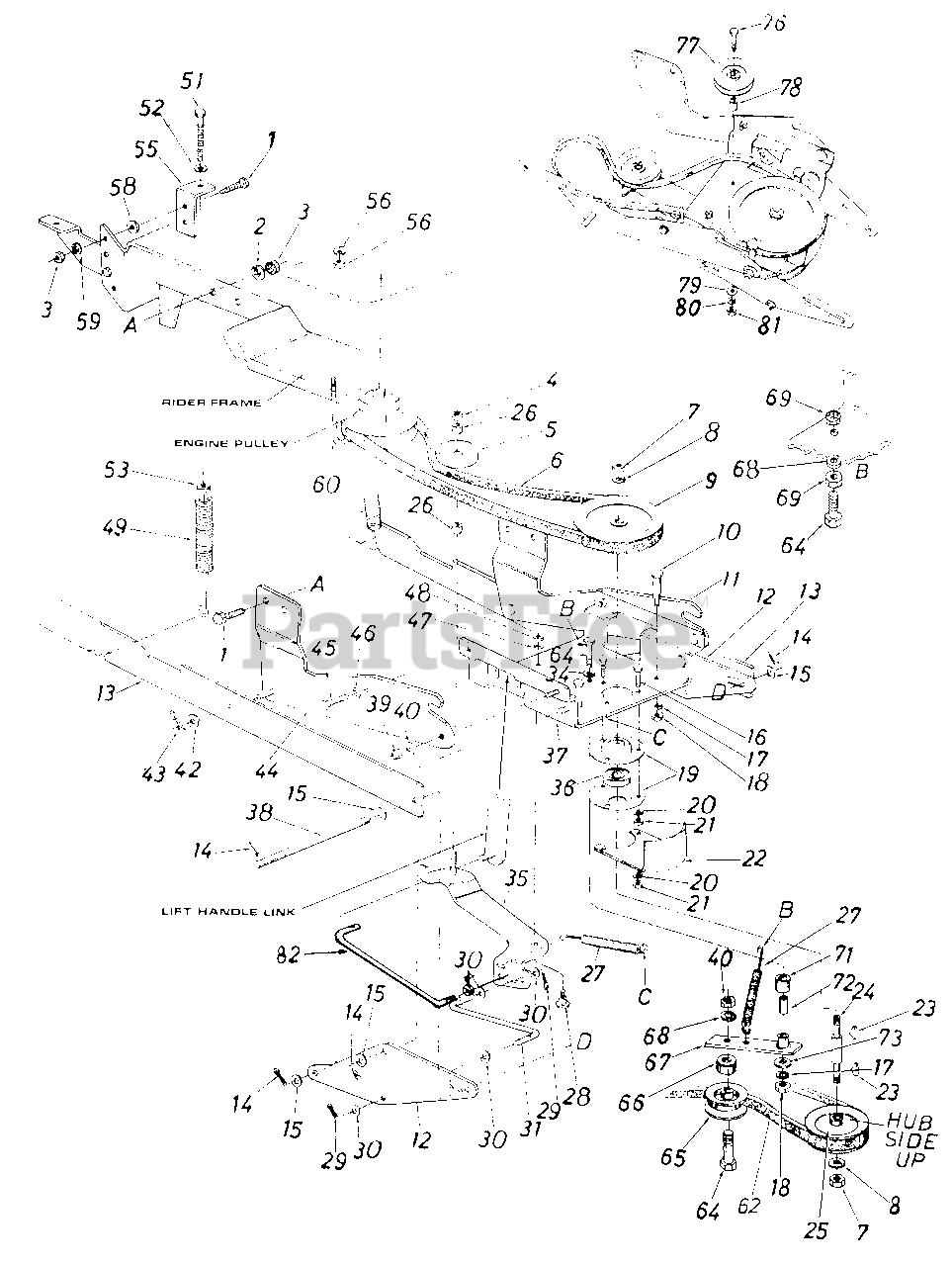

196-491-000 - White Outdoor 36" Snow Thrower Attachment (1986) Drive Assembly Parts Diagram

36" Snow Thrower Attachment

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg. Grade 5

$5.49

$

In Stock, Qty 9

0

2

White Outdoor 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

3

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.*

$6.49

$

Usually ships in 3-6 days

0

4

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

5

White Outdoor 756-0417

Idler Pulley
(Superseded to 956-0417)

$

$

Not available

6

White Outdoor 754-0299

"V"-Belt 1/2 x 49" Lg.
(Superseded to 954-0299)

$

$

Not available

7

White Outdoor 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

8

White Outdoor 736-0158

L Wash. 5/8 I.D.*

$4.49

$

In Stock, only 1 left!

0

9

White Outdoor 756-0216

6.501' O.D. x 5/8 Pulley

$

$

Not available

10

White Outdoor 738-0129

ShouIder BoIt

$10.99

$

In Stock, only 1 left!

0

11

White Outdoor 05826

Channel Supporting Brkt.-R.H.

$

$

Not available

12

05835

Linkage Brkt.

$

$

Not available

13

White Outdoor 05836

Linkage Arm Ass'y.

$

$

Not available

14

White Outdoor 714-0101

Intern. Cotter Pin .50 Dia.*

$4.49

$

In Stock, only 4 left!

0

15

White Outdoor 736-0192

Fl.-Wash.

$3.99

$

In Stock, only 2 left!

0

16

White Outdoor 710-0528

Hex Bolt 5/16 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 736-0169

L. Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 08253

Bearing Housing
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

20

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 712-0267

Hex Nut 5/16-18Thd.*
(Superseded to 912-3010)

$

$

Not available

22

White Outdoor 05406

Belt Guard
(Superseded to 05406-0637)

Variations

White Outdoor 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 714-0388

#6 Hi-Pro-Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

24

White Outdoor 738-0246

Pulley Spindle

$

$

Not available

25

White Outdoor 756-0457

5/8 Pulley-6.28 I.D. x 5.56 O.D.

$

$

Not available

26

White Outdoor 750-0503

Spacer .383 I.D. x .503 O.D. x .562 Lg.
(Superseded to 950-0503)

$

$

Not available

27

White Outdoor 732-0470

Extension Spring .54 O.D. x 5.25"
(Superseded to 932-0470A)

$9.49

$

In Stock, Qty 20+

0

28

White Outdoor 738-0140

Shoulder Bolt

$5.49

$

In Stock, Qty 17

0

29

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1.0"*

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0300

Fl.-Wash.

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 747-0396

Control Rod

$

$

Not available

34

White Outdoor 710-0322

Hex Sems Scr. 5/16-18 x 1.0" Lg.*
(Superseded to 910-0322)

$

$

Not available

35

White Outdoor 05409

Clutch Idler Brkt. Ass'y.

$

$

Not available

36

White Outdoor 741-0919

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

37

White Outdoor 05411

Channel Ass'y.

$

$

Not available

38

White Outdoor 738-0242

Lift Handle Shaft

$

$

Not available

39

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0192

Fl.-Wash.

$3.99

$

In Stock, only 2 left!

0

43

White Outdoor 714-0101

Intern. Cotter Pin .50" Dia. *

$4.49

$

In Stock, only 4 left!

0

44

White Outdoor 05827

Channel Supporting Brkt.-L.H.
(Superseded to 05827B-0637)

$

$

Not available

45

White Outdoor 710-0253

Hex Bolt 3/8-16 x x 1.0" Lg. *
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0169

L. Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

47

White Outdoor 736-0119

L. Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

49

White Outdoor 732-0323

Helper Spring

$

$

Not available

51

White Outdoor 710-0646

Hex Scr. 5/16-18 x 2.0" Lg. SpeciaI
(Superseded to 710-04039)

$4.49

$

In Stock, only 4 left!

0

52

White Outdoor 736-0242

Bell Wash. .345 I.D. x .88 O.D. x .06

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 711-0509

Spring Insert

$55.99

$

Usually ships in 3-6 days

0

55

White Outdoor 05933

Helper Spring Bracket

Variations

White Outdoor 05933-0637

No Longer Available BRACKET-HELPER SPR - POWDER BLACK (0637)

$

$

Not available

$

$

56

Parts on Tractor

$

$

Not available

58

White Outdoor 736-0176

Fl.-Wash. .264" I.D.

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

60

White Outdoor 710-0836

J-Bolt 5/16-18 Thd.

$

$

Not available

62

White Outdoor 754-0294

"V"-Belt 1/2 "A" x .89" Lg.
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 756-0417

Idler Pulley
(Superseded to 956-0417)

$

$

Not available

66

White Outdoor 750-0503

Spacer .385 I.D. x .503 O.D. x .562" Lg .
(Superseded to 950-0503)

$

$

Not available

67

White Outdoor 703-1292

Idler Arm Ass'y.
(Superseded to 703-1396-0637)

$161.99

$

Usually ships in 3-6 days

0

68

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

69

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 710-0528

Hex Bolt 5/16-19 x 1-1/4"

$4.49

$

In Stock, Qty 20+

0

72

White Outdoor 750-0252

Spacer .3775 I.D. x .60 O.D. x 8.3 Lg.
(Superseded to 950-0252)

$19.99

$

In Stock, Qty 5

0

73

White Outdoor 736-0258

Fl.-Wash. 3/8 I.D. x l" O.D. x 1.27

$4.49

$

In Stock, only 2 left!

0

76

White Outdoor 710-0859

Hex Bolt 3/8-16 x 2.5" Lg. (Grade 5)

$6.49

$

In Stock, Qty 20+

0

77

White Outdoor 756-0116

Idler Pulley .38 I.D. x 3.06 O.D.
(Superseded to 756-04209)

$20.99

$

In Stock, Qty 20+

0

78

White Outdoor 711-0396

Spacer .385 I.D. x .630 O.D. x .76 Lg.

$10.99

$

Usually ships in 3-6 days

0

79

White Outdoor 07386

Fl.-Wash. .39 I.D. x 1 3/4 O.D. x 3/16"

$

$

Not available

80

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

81

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

White Outdoor 726-0228

Cable Tie
(Superseded to 725-0157)

Note: (Not Shown)

$3.49

$

In Stock, only 4 left!

0

14632

Index Brkt. (Hardened)

Note: (Not Shown)

$

$

Not available

White Outdoor 14802

Lift Link
(Superseded to 14802A-0637)

Note: (Not Shown)

$

$

Not available

82

White Outdoor 747-0532

Clutch Control Rod 13.67" Lg.

Note: (Units w/ 44" Deck Only)

$

$

Not available
