196-745-000 - White Outdoor Front Counterweight (1986) Front Counterweight Kit Parts Diagram

Front Counterweight

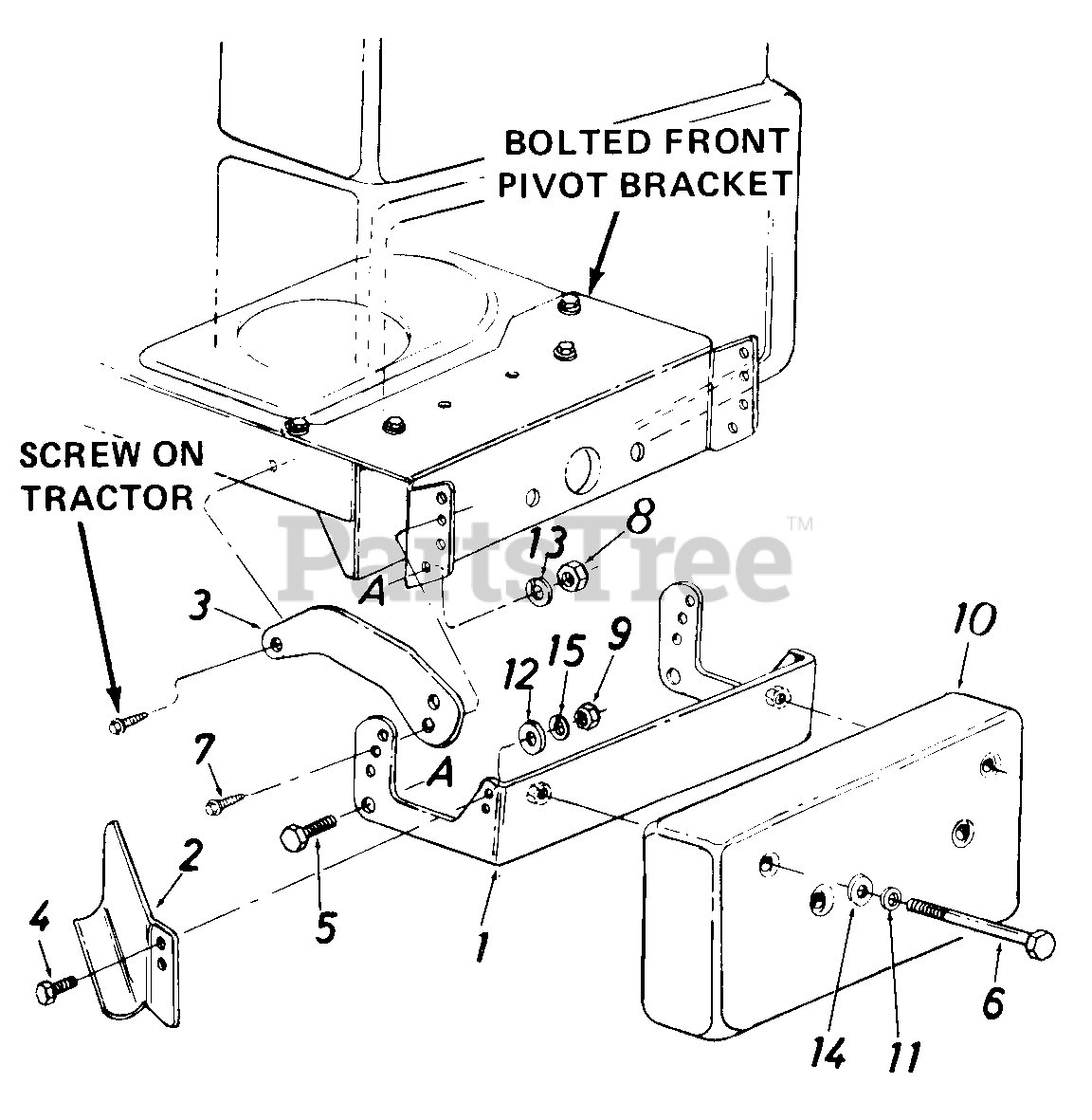

Front Counterweight Kit Parts Diagram

  • Title

1

MTD 15873

Counterweight Bracket Ass'y.

Note: NLA

$

$

Not available

2

MTD 15949

Exhaust Deflector

Note: NLA

$

$

Currently unavailable

3

MTD 16024

Tie Strap

Note: NLA

$

$

Not available

4

MTD 710-0751

HexBoIt 1/4-20x .62" Lg.*

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0314

Hex Bolt 7/16-20 x 1.0" Lg.

$4.49

$

In Stock, only 2 left!

0

6

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

7

MTD 710-0915

Hex AB 0 Tap Scr. 5/16-18 x 1.0" Lg.

Note: NLA

$

$

Not available

8

MTD 912-0240

HexJamNut7/16-20Thd.

$4.49

$

In Stock, Qty 20+

0

9

MTD 912-0287

Hex Nut 1/4-20 Thd. *

$4.99

$

Usually ships in 3-6 days

0

10

MTD 723-0367

Front Counterweight-38 Lbs.

Note: NLA

$

$

Not available

11

MTD 736-0105

Bell-Wash..40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 936-0142

Fl-Wash. .28" I.D. x .50" O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 5

0

13

MTD 936-0171

L-Wash. 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0280

Fl-Wash. .39" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

15

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0
