196-749-000 - White Outdoor Electric Lift Kit (1986)

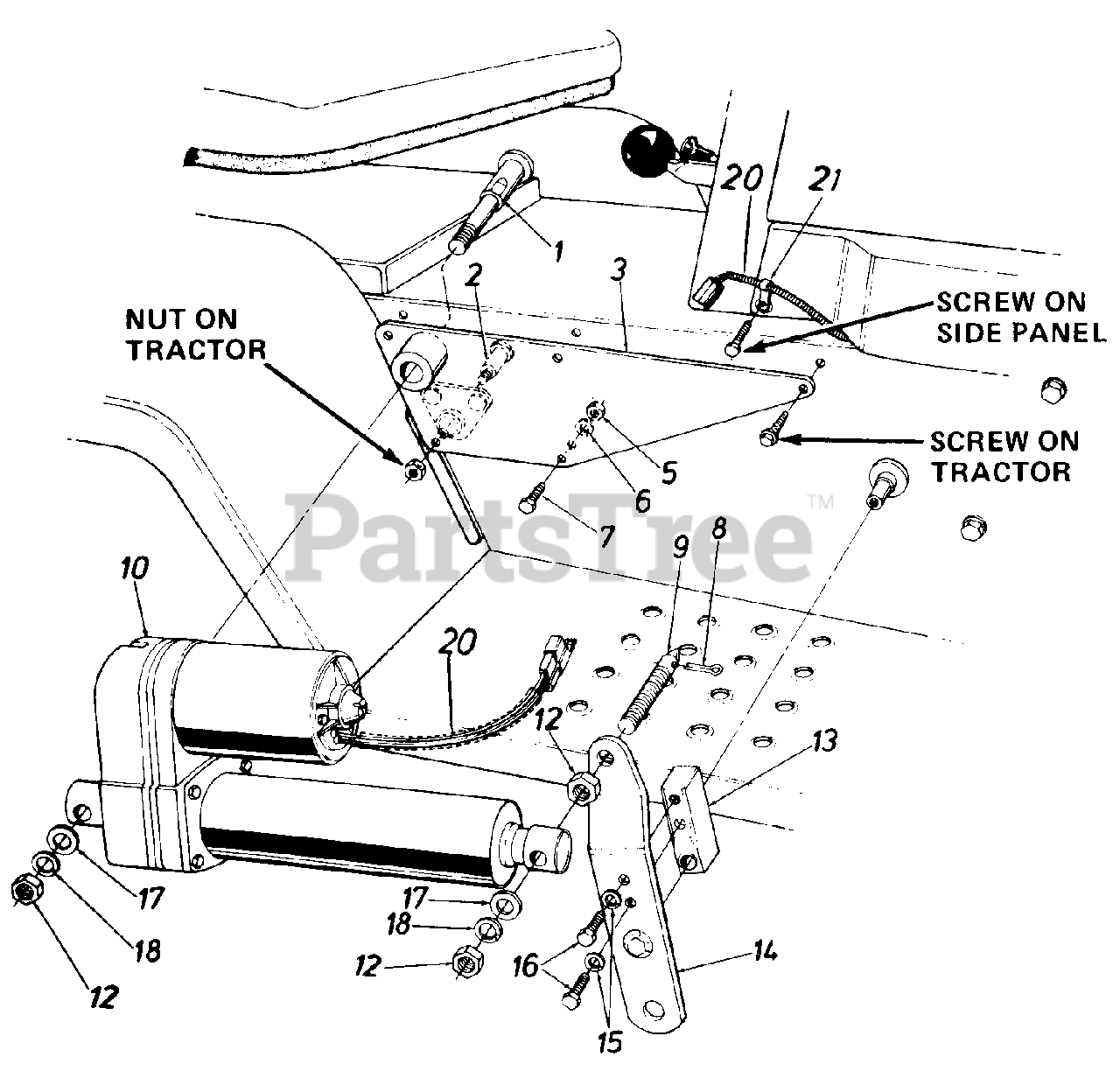

Electric Lift Kit

196-749-000 - White Outdoor Electric Lift Kit (1986) > Parts Diagrams (2) > Electric Lift Kit

  • Title
738-0639

1

Pivot Pin

Part# 738-0639

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $52.90

738-0150

2

Shld. Bolt.626 Dia. x .96"

Part# 738-0150 (Superseded to 938-0150)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.57

16385

3

Mtg. Plate Ass'y.

Part# 16385

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available PLATE ASSY MTG.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

725-0300

Fuse 30 AMP

Part# 725-0300

Note: (For Service Only)

Not available

712-0138

5

Hex Nut 1/4-28Thd.

Part# 712-0138 (Superseded to 912-0138)

OEM Warranty Repair Part for White Outdoor

Not available

736-0329

6

L-Wash. 1/4" I.D.*

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0412

7

Hex Bolt 1/4-28 x .75" Lg. (Grade 5)

Part# 710-0412

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.97

714-0115

8

Cotter Pin

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

738-0640

9

Indicator & Mtg. Pin

Part# 738-0640

OEM Warranty Repair Part for White Outdoor

Not available

717-0620

10

Electric Actuator

Part# 717-0620 (Superseded to 917-0620)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $1013.11

725-1053

Toggle Switch

Part# 725-1053 (Superseded to 925-1053)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $74.39

712-0461

12

Hex Jam Nut 1/2-13 Thd.

Part# 712-0461 (Superseded to 912-3048)

OEM Warranty Repair Part for White Outdoor

Not available

748-0307

13

Lift Shaft Drive

Part# 748-0307 (Superseded to 748-0307A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $36.90

16387

14

Lift Bracket Ass'y.

Part# 16387

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET ASSY-LIFT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

15

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

710-0117

16

Hex Bolt 5/16-24 x 1.0" Lg. (Grade 5)

Part# 710-0117 (Superseded to 710-0888)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0192

17

Fl-Wash. .53" I.D. x.93" O.D.

Part# 736-0192 (Superseded to 936-0192)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

712-0921

18

L-Wash. 1/2" I.D.*

Part# 712-0921

Not available

725-1108

Wire Harness

Part# 725-1108

OEM Warranty Repair Part for White Outdoor

Not available

731-0759

20

Plastic Tubing-7"

Part# 731-0759

OEM Warranty Repair Part for White Outdoor

Not available

726-0175

21

Clamp

Part# 726-0175

OEM Warranty Repair Part for White Outdoor

Not available
