196-798-000 - MTD Mower Deck Assembly Only (1986) 36" Rear Discharge Mowing Deck (Part 1) Parts Diagram

Mower Deck Assembly Only

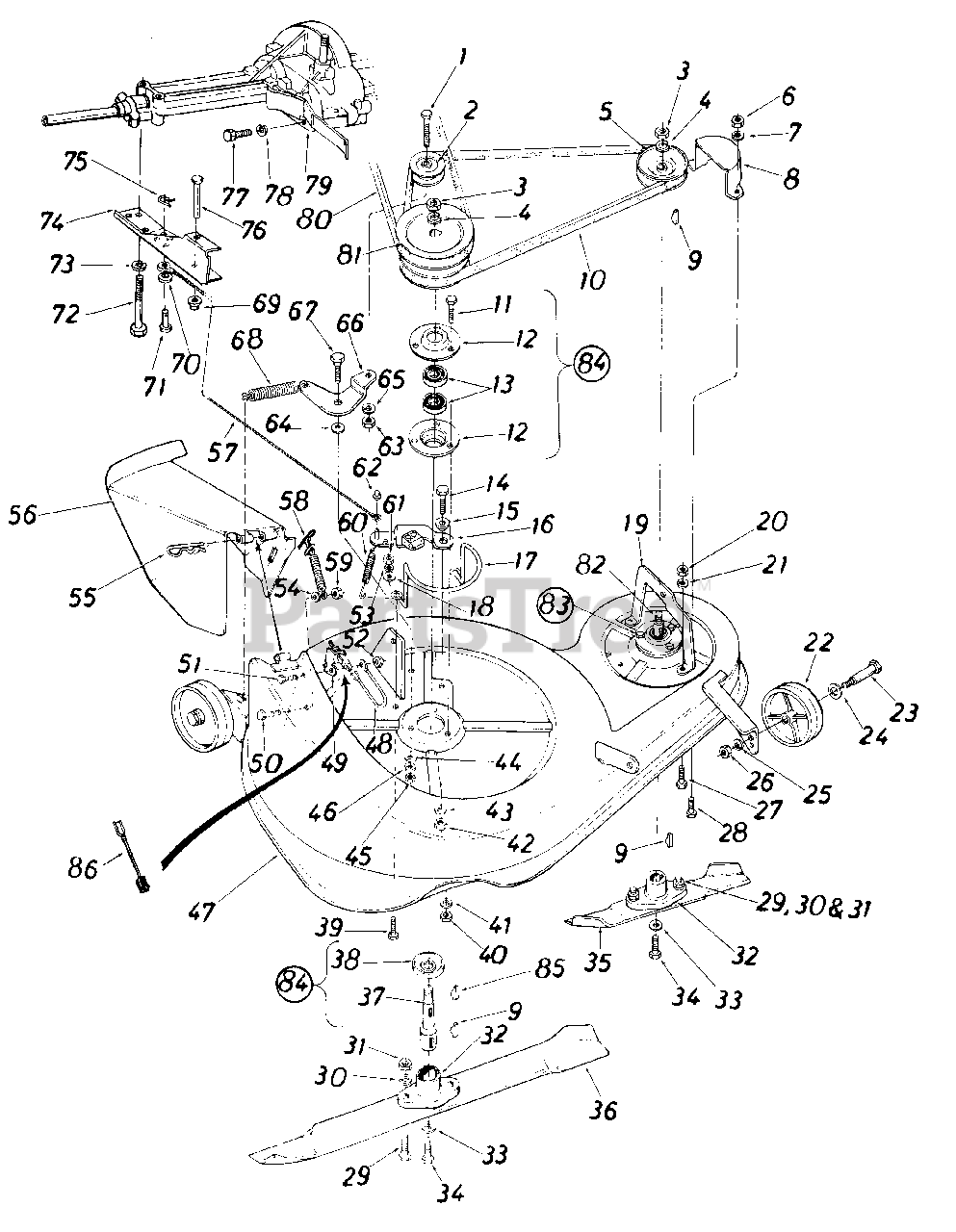

36" Rear Discharge Mowing Deck (Part 1) Parts Diagram

  • Title
1

MTD Part# 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)
Usually ships in 1 day

$

$5.15

0

2

MTD Part# 756-0116

"V"-Idler Pulley 3.06" O.D.
(Superseded to 756-04209)
Usually ships in 1 day

$

$16.65

0

3

MTD Part# 712-0318

Hex Jam Nut 5/8-18 Thd.
Usually ships in 1 day

$

$2.63

0

4

MTD Part# 736-0317

Bell-Wash. .630" I.D. x 1.25 x .090
Usually ships in 1 day

$

$5.60

0

5

MTD Part# 756-0407

Pulley 3.56" O.D. x 518
Usually ships same day

Not available

$

$

6

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

7

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

8

MTD Part# 11987

Belt Guard Cover
Usually ships same day

Not available

$

$

9

MTD Part# 714-0365

#6 Hi-Pro Key 5/32 x 518" Dia.
(Superseded to 914-0365)
Usually ships same day

Not available

$

$

10

MTD Part# 754-0250

V-Belt 1/2 x 53" Lg. (4L)
(Superseded to 954-0250)
Usually ships same day

Not available

$

$

11

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

12

MTD Part# 08253

Brg. Housing 1.85" I.D.
(Superseded to 08253B)
Usually ships in 1 day

$

$14.27

0

13

MTD Part# 741-0919

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

14

MTD Part# 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5)
Usually ships in 1 day

$

$2.91

0

15

MTD Part# 748-0234

Shld. Spacer. 500" Dia. x .27" Lg.
Usually ships in 1 day

$

$3.10

0

16

MTD Part# 16053

Blade Brake Brkt. Ass'y.
Usually ships same day

Not available

$

$

17

MTD Part# 747-0465

Belt Guard
Usually ships same day

Not available

$

$

18

MTD Part# 736-0159

Fl-Wash. .344" I.D. x .875" O. D.
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

19

MTD Part# 15736

Deck Bracket
Usually ships same day

Currently unavailable

$

$

20

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

21

MTD Part# 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

22

MTD Part# 734-0973

Deck Wheel 5.0" x 1.38"
Usually ships in 1 day

$

$9.60

0

23

MTD Part# 738-0414

Shoulder Bolt .498" Dia. x 1 .635
Usually ships same day

Not available

$

$

24

MTD Part# 736-0105

Belleville .400" I.D. x .88" O. D.
Usually ships in 1 day

$

$3.15

0

25

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

26

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

27

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

28

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

29

MTD Part# 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)
Usually ships in 1 day

$

$3.06

0

30

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

31

MTD Part# 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)
Usually ships in 1 day

$

$4.76

0

32

MTD Part# 748-0189

Blade Adapter
Usually ships same day

Not available

$

$

33

MTD Part# 736-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

34

MTD Part# 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)
Usually ships in 1 day

$

$5.15

0

35

MTD Part# 742-0206

13" Blade
Usually ships same day

Not available

$

$

36

MTD Part# 742-0267

24" Blade
Usually ships same day

Not available

$

$

37

MTD Part# 738-0568

Blade Spindle 4.90" Lg.
Usually ships same day

Not available

$

$

38

MTD Part# 13703

Bearing Shield
Usually ships same day

Not available

$

$

39

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

40

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

41

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

42

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

43

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

44

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

45

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

46

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

47

MTD Part# 15741

36" Deck Ass'y.
Usually ships same day

Currently unavailable

$

$

48

MTD Part# 725-0765

Ground Wire
Usually ships same day

Not available

$

$

49

MTD Part# 725-1001

Safety Switch
Usually ships same day

Not available

$

$

50

MTD Part# 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.
Usually ships in 1 day

$

$3.10

0

51

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

52

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

53

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

54

MTD Part# 736-0142

Fl-Wash. .281" I.D. x .50" O.D.
(Superseded to 936-0142)
Usually ships in 1 day

$

$3.18

0

55

MTD Part# 714-0155

Internal Cotter Pin
(Superseded to 714-0174)
Usually ships same day

Not available

$

$

56

MTD Part# 15990

Chute Deflector
Usually ships same day

Not available

$

$

57

MTD Part# 727-0295

Brake Cable Ass'y. 13.75" Lg.
Usually ships same day

Not available

$

$

58

MTD Part# 723-0296

Spring Latch Ass'y.
Usually ships same day

Not available

$

$

59

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

60

MTD Part# 732-0157

Extension Spring .38" O.D. x 3.25" Lg.
Usually ships in 5 to 10 days

$

$10.64

0

61

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

62

MTD Part# 726-0106

Cap Speed Nut 1/4" Rod
(Superseded to 926-0106)
Usually ships same day

Not available

$

$

63

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

64

MTD Part# 736-0159

Fl-Wash. .344" I.D. x .875"O.D.
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

65

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

66

MTD Part# 16420

Deck Idler Brkt. Ass'y.
Usually ships same day

Currently unavailable

$

$

67

MTD Part# 738-0297

Shoulder Bolt .498" Dia. x .71
(Superseded to 938-0297)
Usually ships same day

Not available

$

$

68

MTD Part# 732-0199

Extension Spring
Usually ships same day

Not available

$

$

69

MTD Part# 726-0106

Cap Speed Nut 1/4" Rod
(Superseded to 926-0106)
Usually ships same day

Not available

$

$

70

MTD Part# 736-0142

Fl-Wash. .281" I.D. x .50"O.D.
(Superseded to 936-0142)
Usually ships in 1 day

$

$3.18

0

71

MTD Part# 711-0701

Clevis Pin 1/4" Dia. x .53" Lg.
(Superseded to 911-0701)
Usually ships in 5 to 10 days

$

$4.81

0

72

MTD Part# 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.*
Usually ships in 1 day

$

$3.11

0

73

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

74

MTD Part# 15625

Lower Outside Belt Guard
Usually ships same day

Not available

$

$

75

MTD Part# 714-0104

Intern. Cot-Pin 5/16" Dia.
(Superseded to 914-0104)
Usually ships in 1 day

$

$3.09

0

76

MTD Part# 710-0586

Weld Pin .25" Dia. x 2.5" Lg.
Usually ships same day

Not available

$

$

77

MTD Part# 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)
Usually ships in 1 day

$

$2.87

0

78

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

79

MTD Part# 15997

Lower Inside Belt Guard
Usually ships same day

Not available

$

$

80

MTD Part# 754-0214

V-Belt 1/2 x 50" Lg.
(Superseded to 954-0214)
Usually ships in 5 to 10 days

$

$50.23

0

81

MTD Part# 756-0409

Pulley 5.81 " O.D. x 5/8
Usually ships same day

Currently unavailable

$

$

82

MTD Part# 738-0567

Blade Spindle 3.70" Lg.
Usually ships same day

Not available

$

$

83

MTD Part# 717-0809

Spindle Ass'y.

Note: (For 13" Blade)

Usually ships same day

Not available

$

$

84

MTD Part# 717-0810

Spindle Ass y.

Note: (For 24" Blade)

Usually ships same day

Not available

$

$

85

MTD Part# 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)
Usually ships in 1 day

$

$5.42

0

86

MTD Part# 725-1037

Wire Lead
Usually ships same day

Not available

$

$

MTD Part# 15740

36" Deck Ass'y. Comp.

Note: (Service Only)

Usually ships same day

Currently unavailable

$

$
