196-929-000 - MTD Tiller Hitch Kit (1986) Parts Parts Diagram

Tiller Hitch Kit

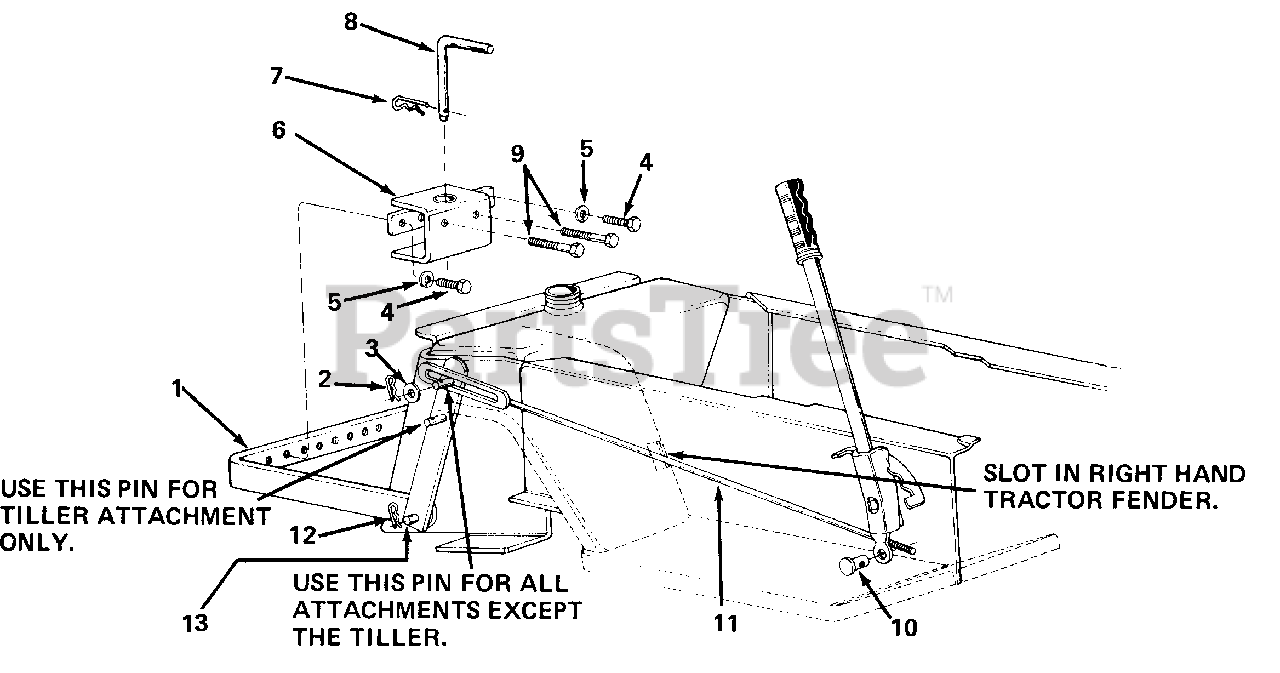

Parts Parts Diagram

  • Title
1

MTD Part# 13914

Hitch Bar Ass'y.

Variations

MTD Part# 13914-0637

No Longer Available BAR ASM-H - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

2

MTD Part# 714-0101

Internal Cotter Pin 1/2" Dia.
(Superseded to 914-0101)
Usually ships same day

Not available

$

$

3

MTD Part# 736-0100

Fl.-Wash. 1/2" I.D.
Usually ships in 1 day

$

$4.81

0

4

MTD Part# 710-0493

Hex Scr. 1/2-13 x 1.00" Lg.*
(Superseded to 710-3131)
Usually ships in 1 day

$

$3.76

0

5

MTD Part# 736-0921

L.-Wash. 1/2" Scr.*
(Superseded to 936-0921)
Usually ships in 5 to 10 days

$

$3.11

0

6

MTD Part# 13269

Hitch Brkt. Ass'y.

Variations

MTD Part# 13269-0637

BRACKET ASSY-HITCH - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

7

MTD Part# 714-0117

Internal Cotter Pin 5/8" Dia.
Usually ships in 1 day

$

$3.05

0

8

MTD Part# 711-0282

Hitch Pin
Usually ships in 5 to 10 days

$

$51.18

0

9

MTD Part# 710-0182

Hex Scr. 1/2-13 x 3.00" Lg.*
(Superseded to 710-0182A)
Usually ships same day

Not available

$

$

10

MTD Part# 711-0700

Adjustment Ferrule
Usually ships same day

Not available

$

$

11

MTD Part# 13916

Link Rod Ass'y.

Variations

MTD Part# 13916-0637

No Longer Available ROD ASM-L - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

12

MTD Part# 714-0101

Internal Cotter Pin 1/2" Dia.
(Superseded to 914-0101)
Usually ships same day

Not available

$

$

13

MTD Part# 738-0482

Hitch Rod
Usually ships same day

Not available

$

$
