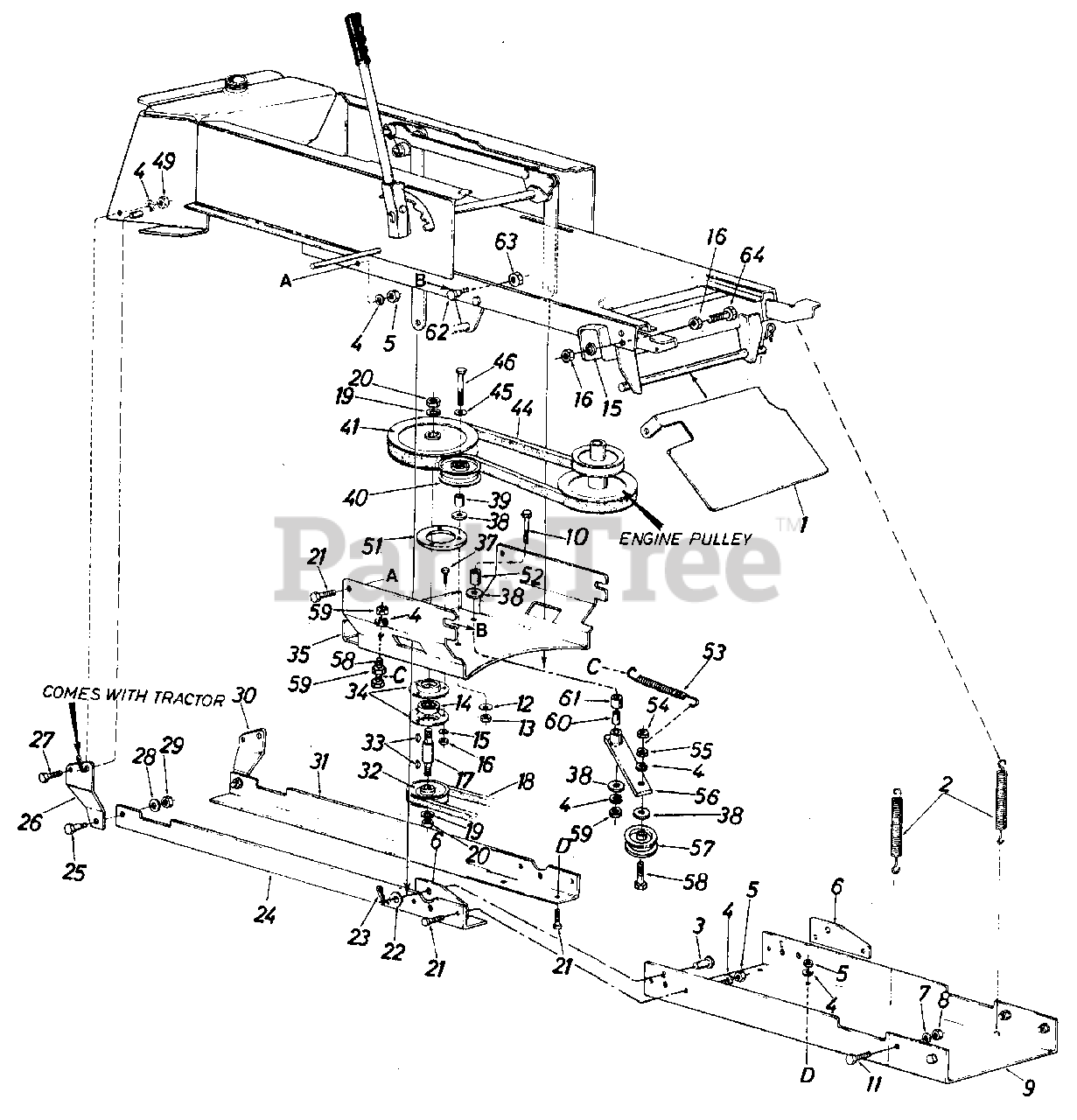

196-930-000 - White Outdoor 40" Snow Thrower Attachment (1986) Drive Assembly Parts Diagram

40" Snow Thrower Attachment

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 784-5091

Guide Bracket

$

$

Not available

2

White Outdoor 732-0233

Helper Spring
(Superseded to 932-0233)

$

$

Not available

3

White Outdoor 711-0332

Clevis Pin
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

4

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-0241

Hex L.-Nut3/8-24Thd.

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 05714

Attaching Plate

$

$

Not available

7

White Outdoor 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0239

Hex L.-Nut 1/2-20Thd.

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 05719

Front Support Channel

$

$

Not available

10

White Outdoor 710-0771

Hex Bolt 3/8-16 x 3.75" Lg.
(Superseded to 710-04576)

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor 710-0504

Hex Bolt 1/2-20x 1.25" Lg.*

$

$

Not available

12

White Outdoor 736-0105

Belleville Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-0375

Hex L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

14

White Outdoor 741-0919

Ball Bearing
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 738-0246

Spindle

$

$

Not available

18

White Outdoor 754-0291

"V"-Belt 1/2" x88"x 2 (Kevlar)
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

19

White Outdoor 736-0158

L.-Wash. 5/8" I.D.*

$4.49

$

In Stock, only 1 left!

0

20

White Outdoor 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

21

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.*
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

22

White Outdoor 736-0192

Flat Washer

$3.99

$

In Stock, only 2 left!

0

23

White Outdoor 714-0117

Internal Cotter Pin

$3.99

$

In Stock, Qty 11

0

24

White Outdoor 05718

RearSupport Angle-R.H.

Variations

White Outdoor 05718-0637

No Longer Available ANGLE-SUPPORT-RH-R - POWDER BLACK (0637)

$

$

Not available

$

$

25

White Outdoor 738-0163

Sh Id. Bolt .623" Dia. x .258 " Lg.

$

$

Not available

26

White Outdoor 05716

Rear Hanger Brkt.-R.H.
(Superseded to 05716-0637)

Variations

White Outdoor 05716-0637

BRACKET-HANGER - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 710-0152

Hex Bolt 3/8 x 1.00" Lg.*
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

28

White Outdoor 736-0319

Fl.-Wash. .44" I.D. x 1.38" O.D. x .130
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

29

White Outdoor 712-0290

Hex L.-Nut 7/16-24 Thd.

$4.49

$

In Stock, Qty 12

0

30

White Outdoor 05715

Rear Hanger Brkt.-L.H.

$

$

Not available

31

White Outdoor 05717

Rear Support Angle-L. H .
(Superseded to 05717-0637)

Variations

White Outdoor 05717-0637

ANGLE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

32

White Outdoor 756-0457

Lower Drive Pulley 5/8 x 5.56

$

$

Not available

33

White Outdoor 714-0388

#6 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

34

White Outdoor 08253

Bearing Housing
(Superseded to 08253B)

$17.99

$

In Stock, only 3 left!

0

35

White Outdoor 05713

Supporting Bracket

$

$

Not available

37

White Outdoor 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg. *
(Superseded to 910-0322)

$

$

Not available

38

White Outdoor 736-0258

Fl.-Wash. .38" I.D. x 1.00" O.D. x .135

$4.49

$

In Stock, only 2 left!

0

39

White Outdoor 748-0193

Spacer .38" I.D. x .62" O.D.
(Superseded to 948-0193)

$

$

Not available

40

White Outdoor 1626-104

Fl.-ldler Pulley
(Superseded to 756-0405)

$66.99

$

Usually ships in 3-6 days

0

41

White Outdoor 756-0216

Upper Drive Pulley

$

$

Not available

44

White Outdoor 754-0206

"V"-Belt 1/2" x 49.8" Lg.
(Superseded to 954-0206)

$

$

Not available

45

White Outdoor 736-0140

Fl.-Wash.

$6.99

$

In Stock, Qty 9

0

46

White Outdoor 710-0937

Hex Bolt 3/8-16 x 2.50" Lg.*
(Superseded to 710-0859)

$6.49

$

In Stock, Qty 20+

0

49

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

51

White Outdoor 13778

Reinforcement Plate

Variations

White Outdoor 13778-0637

No Longer Available PLATE-MTG-SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 750-0511

Spacer .37" I.D. x .562" O.D. x 1.50" Lg.

$

$

Not available

53

White Outdoor 732-0470

Extension Spring .54" O.D. x 4.75" Lg.
(Superseded to 932-0470A)

$9.49

$

In Stock, Qty 20+

0

54

White Outdoor 712-0266

Hex Cent. L.-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

56

White Outdoor 703-1292

Idler Arm Ass'y.
(Superseded to 703-1396-0637)

$161.99

$

Usually ships in 3-6 days

0

57

White Outdoor 756-0417

Idler Pulley
(Superseded to 956-0417)

$

$

Not available

58

White Outdoor 710-0756

Hex Bolt 3/8-16 x 2.25" Lg.

$

$

Not available

59

White Outdoor 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 750-0252

Spacer.377" I.D. x .60" O.D. x.830" Lg.
(Superseded to 950-0252)

$19.99

$

In Stock, Qty 5

0

61

White Outdoor 748-0193

Spacer.380" I.D. x .630" O.D. x.565" Lg.
(Superseded to 948-0193)

$

$

Not available

62

White Outdoor 738-0143

Shoulder Bolt .498 Dia. x .340

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 712-0375

Hex Cent. L.-N ut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

64

White Outdoor 710-0442

Hex Bolt 5/16-18 x1.50" Lg.*
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0
