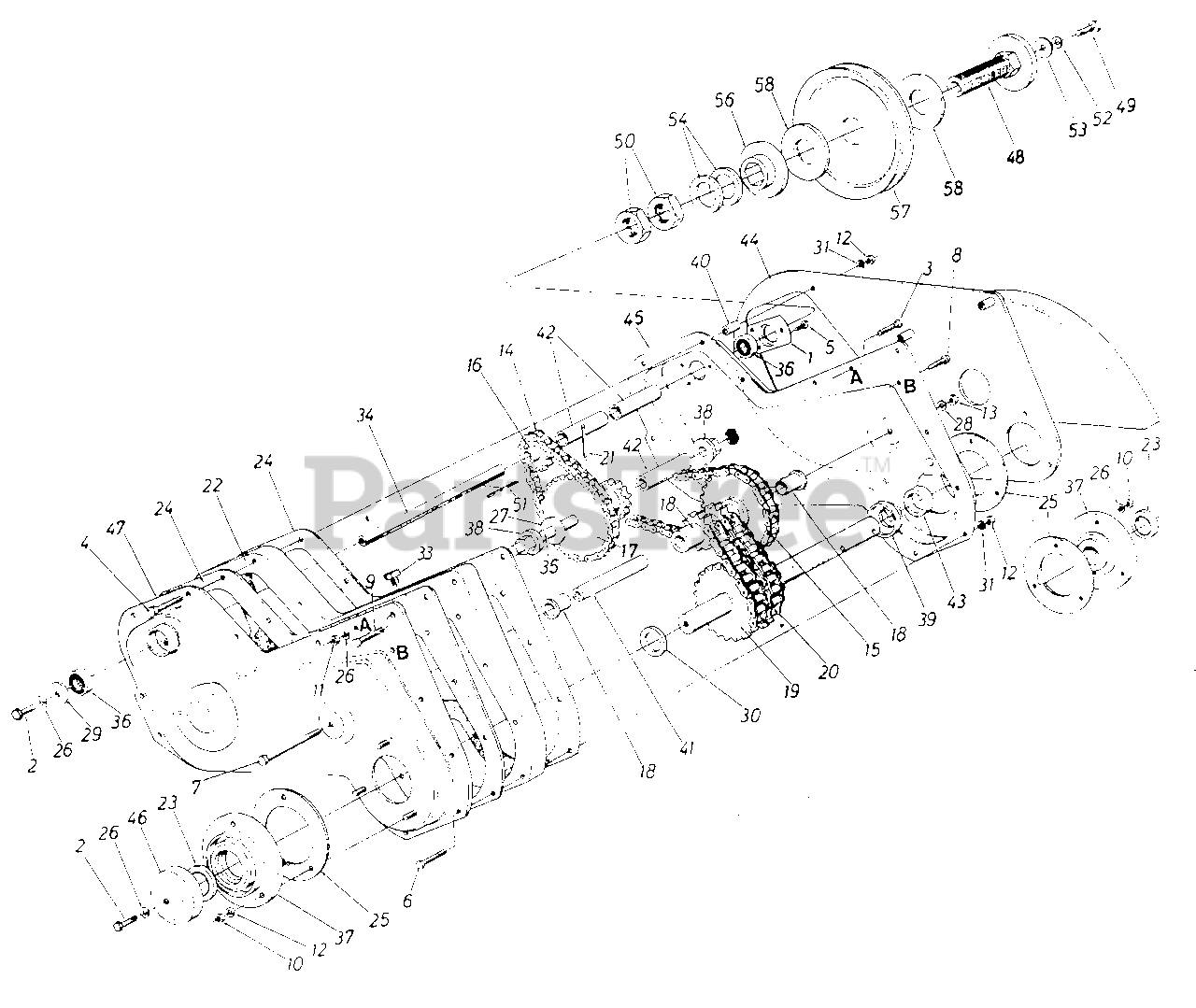

19746C - MTD 26" and 28" Tiller Attachment (1986) Chain Parts Diagram

26" and 28" Tiller Attachment

Chain Parts Diagram

  • Title
1

MTD Part# 05034

Bearing Housing 1-3/8" Dia.
(Superseded to 05034A)
Usually ships same day

Not available

$

$

2

MTD Part# 710-0371

Hex Bolt 5/16-18 x .88" Lg. Spec.
(Superseded to 710-1880)
Usually ships in 1 day

$

$3.23

0

3

MTD Part# 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)
Usually ships in 1 day

$

$3.00

0

4

MTD Part# 710-0564

Hex Bolt 1/4-20 x 2.75" Lg.
Usually ships in 1 day

$

$4.87

0

5

MTD Part# 710-0599

Hex Wash. S-Tap. Scr. 1/4-20 x .50" Lg.
Usually ships in 1 day

$

$3.06

0

6

MTD Part# 710-0606

Hex Bolt i/4-20 x 1.50" Lg.
Usually ships in 1 day

$

$3.74

0

7

MTD Part# 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.
Usually ships in 1 day

$

$10.32

0

8

MTD Part# 710-0778

Hex Wash. Hd. Bolt 1/4-20 x 1.5" Lg.
Usually ships in 1 day

$

$3.09

0

9

MTD Part# 710-0909

Hex Wash. TT-Tap Scr. 5/16-18 x 1.75" Lg.
(Superseded to 710-0909A)
Usually ships in 5 to 10 days

$

$7.10

0

10

MTD Part# 712-0158

HexCent. L.-Nut 5/16-18Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

11

MTD Part# 712-0267

Hex Nut5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

12

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

13

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

14

MTD Part# 713-0131

#41 Chain 1/2" Pitch x 34 Links-Endless
Usually ships same day

Not available

$

$

15

MTD Part# 713-0186

#42 Chain 1/2" Pitch x 48 Links-Endless
(Superseded to 913-0186)
Usually ships same day

Not available

$

$

16

MTD Part# 713-0206

Sprocket 10 Tooth.500" Pitch
Usually ships same day

Not available

$

$

17

MTD Part# 713-0341

10 & 28 Teeth Sprocket Ass'y.
Usually ships same day

Not available

$

$

18

MTD Part# 713-0342

8-2 & 28 Sprocket Sleeve Ass'y
Usually ships same day

Not available

$

$

19

MTD Part# 713-0362

18-2 Sprocket Shaft Ass'y.
Usually ships in 5 to 10 days

$

$191.02

0

20

MTD Part# 713-0344

#50-2 Chain 5/8" Pitch x 28 Links-Endless
Usually ships same day

Not available

$

$

21

MTD Part# 715-0114

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.
(Superseded to 915-0114)
Usually ships in 1 day

$

$6.89

0

22

MTD Part# 717-0811

Spacer Block-Tiller Housing
Usually ships same day

Not available

$

$

23

MTD Part# 721-0192

Oil Seal Double Lip-1-1/4" Dia.
Usually ships same day

Not available

$

$

24

MTD Part# 721-0132

Gasket for Tiller Housing
(Superseded to 921-0132)
Usually ships in 5 to 10 days

$

$29.53

0

25

MTD Part# 721-0133

Gasket for Brg.-Housing
Usually ships same day

Not available

$

$

26

MTD Part# 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

27

MTD Part# 736-0187

Fl.-Wash. .640" I.D. x 1.24" O.D.
Usually ships in 1 day

$

$3.19

0

28

MTD Part# 736-0217

L.-Wash. 3/8" I.D. Heavy Duty
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

29

MTD Part# 736-0231

Fl.-Wash. 344" I.D. x.1.125
(Superseded to 936-0231)
Usually ships in 5 to 10 days

$

$3.23

0

30

MTD Part# 736-0368

Special Washer
Usually ships same day

Not available

$

$

31

MTD Part# 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

MTD Part# 737-0133

Grease-Plastilube #0
(Superseded to 737-0300A)

Note: (Not Shown)

Usually ships in 1 day

$

$27.98

0

33

MTD Part# 737-0175

Vent Plug
Usually ships in 1 day

$

$4.81

0

34

MTD Part# 738-0181

Jack Shaft .525" I.D. x 7.78 " Lg.
Usually ships same day

Not available

$

$

35

MTD Part# 738-0594

Sprocket Shaft .63" Dia. x 5.0" Lg.
Usually ships same day

Not available

$

$

36

MTD Part# 741-0155

Ball Brg. .62" I.D. x 1.38" O.D.
(Superseded to 941-0155)
Usually ships in 1 day

$

$17.54

0

37

MTD Part# 741-0417

Bearing Housing-1-1/4"
Usually ships same day

Not available

$

$

38

MTD Part# 748-0229

Hex Flange Brg.
(Superseded to 948-0229)
Usually ships in 5 to 10 days

$

$8.23

0

39

MTD Part# 750-0563

Spacer 1.25" I.D. x 2.0" O.D.
Usually ships same day

Not available

$

$

40

MTD Part# 750-0599

Spacer .28" I.D. x .62" O.D. x .90" Lg.
(Superseded to 950-0599)
Usually ships same day

Not available

$

$

41

MTD Part# 750-0600

Spacer .38" I.D. x .62" O.D. x 3.44" Lg.
Usually ships in 5 to 10 days

$

$18.21

0

42

MTD Part# 750-0601

Spacer.62" I.D. x .88" O.D. x 1.56" Lg.
(Superseded to 950-0601)
Usually ships same day

Not available

$

$

43

MTD Part# 750-0636

Spacer 1.25" I.D. x 1.62" O.D. x . 50" Lg.
Usually ships same day

Not available

$

$

44

MTD Part# 784-0055

Tiller Housing Plate Ass'y.-L.H.

Variations

MTD Part# 784-0055-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 784-0055-0637

No Longer Available PLATE ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

45

MTD Part# 784-0061

Tiller Housing Ass'y.

Variations

MTD Part# 784-0061-0498

HOUSING-TILLER - OLD CUB YELLOW (0498)
Usually ships in 5 to 10 days

$

$120.15

0

MTD Part# 784-0061-0637

HOUSING-TILLER - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$120.15

0

MTD Part# 784-0061-0638

HOUSING-TILLER - MTD/TROY-BILT RED (0638)
Usually ships in 5 to 10 days

$

$120.15

0

Usually ships same day

$

$

46

MTD Part# 784-0067

Dust Cap .320" Dia. Hole
Usually ships same day

Not available

$

$

47

MTD Part# 784-0077

Tiller Housing Ass'y.-R.H.

Variations

MTD Part# 784-0077-0498

No Longer Available HOUSING-RH - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 784-0077-0637

No Longer Available HOUSING-RH - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

48

MTD Part# 15727

Friction DiscAss'y.
Usually ships same day

Not available

$

$

49

MTD Part# 710-0573

Hex Bolt 5/16-18 x 1.25" Lg. Grade 5
Usually ships in 1 day

$

$4.45

0

50

MTD Part# 712-0331

Hex Jam Nut l.0-14 x 28 Thd.
Usually ships same day

Not available

$

$

51

MTD Part# 714-0133

Sq. Key 3/16 x 1.50" Lg.
(Superseded to 914-0133)
Usually ships in 5 to 10 days

$

$3.36

0

52

MTD Part# 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

53

MTD Part# 736-0231

Fl.-Wash. .344" I.D. x 1.125" 0. D.
(Superseded to 936-0231)
Usually ships in 5 to 10 days

$

$3.23

0

54

MTD Part# 736-0352

Spring Bell Wash. 1.0" I.D. x 2.0" O.D.
Usually ships same day

Not available

$

$

56

MTD Part# 748-0296

Floating Disc 3-1/4" O.D. x 1.0" I.D.
Usually ships same day

Not available

$

$

57

MTD Part# 756-0439

5/8 V-Pulley 1.50" I.D. x 6.50"
Usually ships same day

Not available

$

$

58

MTD Part# 761-0189

Friction Pad 3-1/4" O.D. x 1-3/8" I.D.
Usually ships same day

Not available

$

$
