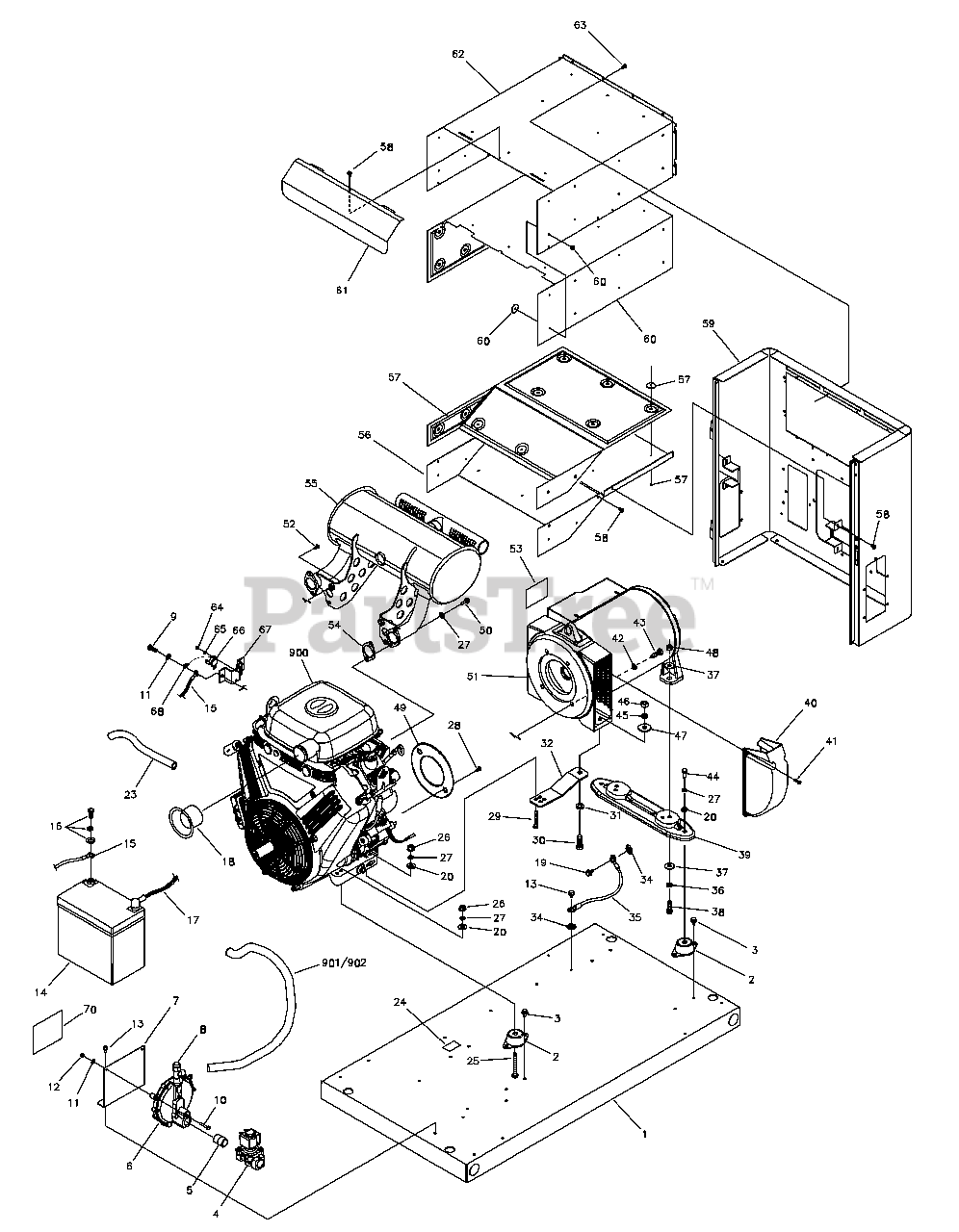

1975-0 - Briggs & Stratton 7kW Home Standby Generator Unit Parts Diagram

7kW Home Standby Generator

Unit Parts Diagram

  • Title

1

Briggs & Stratton U203030GS

Base, Mounting
(Superseded to U313049GS)

$496.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187594GS

Mount, Vibration

$67.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

HHS, Trilobular 5/16 - 18 x 1/2

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

Solenoid, Gas Fuel

$411.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 194829GS

Fitting, Coupling

$22.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

Regulator

$247.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 195936GS

Bracket, Mounting Solenoid
(Superseded to 313562GS)

$

$

Not available

8

Briggs & Stratton 842184

Assy, Tee

$189.99

$

Usually ships in 2-12 days

0

9

-----

HHCS, M6 - 1.0 x 16

Note: (Purchase locally)

$

$

Not available

10

-----

HHCS, M6 - 1.0 x 30

Note: (Purchase locally)

$

$

Not available

11

-----

Washer, 1/4 Lock

Note: (Purchase locally)

$

$

Not available

12

-----

Nut, M6 - 1.0

Note: (Purchase locally)

$

$

Not available

13

Briggs & Stratton B4300GS

HHS, Trilobular, 1/4 - 20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 194818GS

Battery

$

$

Not available

15

Briggs & Stratton 185939RGS

Wire-A, Black

$19.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 198913GS

Kit, Battery Hardware

$

$

Not available

17

Briggs & Stratton 198593AGS

Wire-A, Red

$37.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 194813GS

Tube, Air Cleaner

$15.99

$

In Stock, only 2 left!

0

19

-----

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

20

-----

Washer, Flat 5/16 - M8

Note: (Purchase locally)

$

$

Not available

23

Briggs & Stratton 1723165SM

Hose, Oil Drain

$21.99

$

In Stock, Qty 6

0

24

Briggs & Stratton 186649GS

Decal, Oil Drain
(Superseded to 186640GS)

$72.99

$

Usually ships in 2-12 days

0

25

-----

HHCS, 5/16 - 18 x 2.5 Full Thread

Note: (Purchase locally)

$

$

Not available

26

-----

Nut, 5/16 - 18

Note: (Purchase locally)

$

$

Not available

27

-----

Washer, Lock 5/16 - M8

Note: (Purchase locally)

$

$

Not available

28

-----

HHCS, 5/16 - 24 x 3/4 Sems

Note: (Purchase locally)

$

$

Not available

29

-----

HHCS, 5/16 - 18 x 2"

Note: (Purchase locally)

$

$

Not available

30

-----

HHCS, M12 - 1.75 x 35

Note: (Purchase locally)

$

$

Not available

31

-----

Washer, M12

Note: (Purchase locally)

$

$

Not available

32

Briggs & Stratton B194685GS

Support, Eng/Alt, Black

$35.99

$

Usually ships in 2-12 days

0

34

-----

Washer, Shakeproof Ext. M6-1/4

Note: (Purchase locally)

$

$

Not available

35

Briggs & Stratton 186790GGS

Wire, Ground

$18.99

$

Usually ships in 2-12 days

0

36

-----

Washer, Lock M10

Note: (Purchase locally)

$

$

Not available

37

-----

Washer, Flat, M10

Note: (Purchase locally)

$

$

Not available

38

-----

HHCS, M10 - 1.5 x 30

Note: (Purchase locally)

$

$

Not available

39

Briggs & Stratton B196639GS

Bracket, Mounting Alternator, Black
(Superseded to B198896GS)

$44.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 196387GS

Duct, Air

$

$

Not available

41

-----

PPHMS, M5 - 0.8 x 20

Note: (Purchase locally)

$

$

Not available

42

-----

Washer, Lock 3/8

Note: (Purchase locally)

$

$

Not available

43

-----

SHCS, 3/8 - 16 x 1-1/4

Note: (Purchase locally)

$

$

Not available

44

-----

HHCS, 5/16 - 18 x 3/4

Note: (Purchase locally)

$

$

Not available

45

-----

Washer, M12 Lock

Note: (Purchase locally)

$

$

Not available

46

-----

Nut, Hex M12 - 1.75

Note: (Purchase locally)

$

$

Not available

47

-----

Washer, Flat M12

Note: (Purchase locally)

$

$

Not available

48

-----

Nut, M10 - 1.5

Note: (Purchase locally)

$

$

Not available

49

Briggs & Stratton B4260GS

Disk, Engine Air

$

$

Not available

50

Briggs & Stratton 809743

Screw
(Superseded to 846149)

$4.99

$

In Stock, Qty 20+

0

51

NSP

Assy, Alternator

Note: See Alternator

$

$

Not available

52

Briggs & Stratton 692062

Screw

$3.99

$

In Stock, Qty 8

0

53

Briggs & Stratton 193506GS

Decal, Caution Hot Surface

$

$

Not available

54

Briggs & Stratton 809872

Gasket

$5.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 197164GS

Muffler

$476.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 194681GS

Base, Muffler Box

$214.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 198928GS

Kit, Insulation, Muffler Base

$239.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

Crimptite, 10 - 24 x 1/2

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 201282GS

Assy, Bulkhead, Alternator End w/Insulation

$446.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 198929GS

Kit, Insulation, Muffler Box

$268.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

Collector, Muffler Box

$49.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 194680GS

Box, Muffler Top

$252.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

Screw. 10 - 32 x 5/8

$3.99

$

Usually ships in 2-12 days

0

64

-----

PPHMS, 4-40 x 0.19

Note: (Purchase locally)

$

$

Not available

65

-----

Washer, Lock #4

Note: (Purchase locally)

$

$

Not available

66

Briggs & Stratton 186205GS

Switch, Oil Temp
(Superseded to 204426GS)

$40.99

$

In Stock, only 2 left!

0

67

Briggs & Stratton 194699GS

Plate, Switch Oil Temp
(Superseded to 313561GS)

$58.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 186790CGS

Wire

$

$

Not available

70

Briggs & Stratton 205397GS

Decal, Requirements, Fuel

$17.99

$

Usually ships in 2-12 days

0

900

-----

Engine

Note: Contact Engine Manufacturer

$

$

Not available

901

Briggs & Stratton 843644

Fuel Hose
(Superseded to 842185)

$189.99

$

Usually ships in 2-12 days

0

902

Briggs & Stratton 843438

Clamp

$4.99

$

Usually ships in 2-12 days

0

902

Briggs & Stratton 199327GS

Manual, Install

Note: Items Not Illustrated

$

$

Not available

902

Briggs & Stratton 194689GS

Manual, Operator’s

Note: Items Not Illustrated

$

$

Not available

902

Briggs & Stratton MS3483

Manual, Engine

Note: Items Not Illustrated

$

$

Not available

902

Briggs & Stratton 201275GS

Kit, Manual/Accessory HGS

Note: Items Not Illustrated

$232.99

$

Usually ships in 2-12 days

0

902

Briggs & Stratton 198810GS

Paint, Touchup, Gray 1/2 oz Bottle

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

902

Briggs & Stratton 198811GS

Paint, Touchup, Silver 1/2 oz Bottle

Note: Items Not Illustrated

$15.99

$

Usually ships in 2-12 days

0

902

Briggs & Stratton B3518GS

Cap, Funnel Oil Bottle

Note: Items Not Illustrated

$4.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 202295GS

Hose, Flex

Note: Items Not Illustrated

$64.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 198866GS

Kit, Led Remote
(Superseded to 313326GS)

Note: Items Not Illustrated

$49.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 199356GS

Kit, Decals, Service

Note: Items Not Illustrated

$29.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 199475GS

Paint, Touchup, Spray, Silver, 12oz

Note: Optional Accessories

$49.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 199474GS

Paint, Touchup, Spray, Gray, 12oz

Note: Optional Accessories

$42.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 6030

Kit, Cold Weather

Note: Optional Accessories (Includes Battery And Oil Warmers)

$

$

Not available
