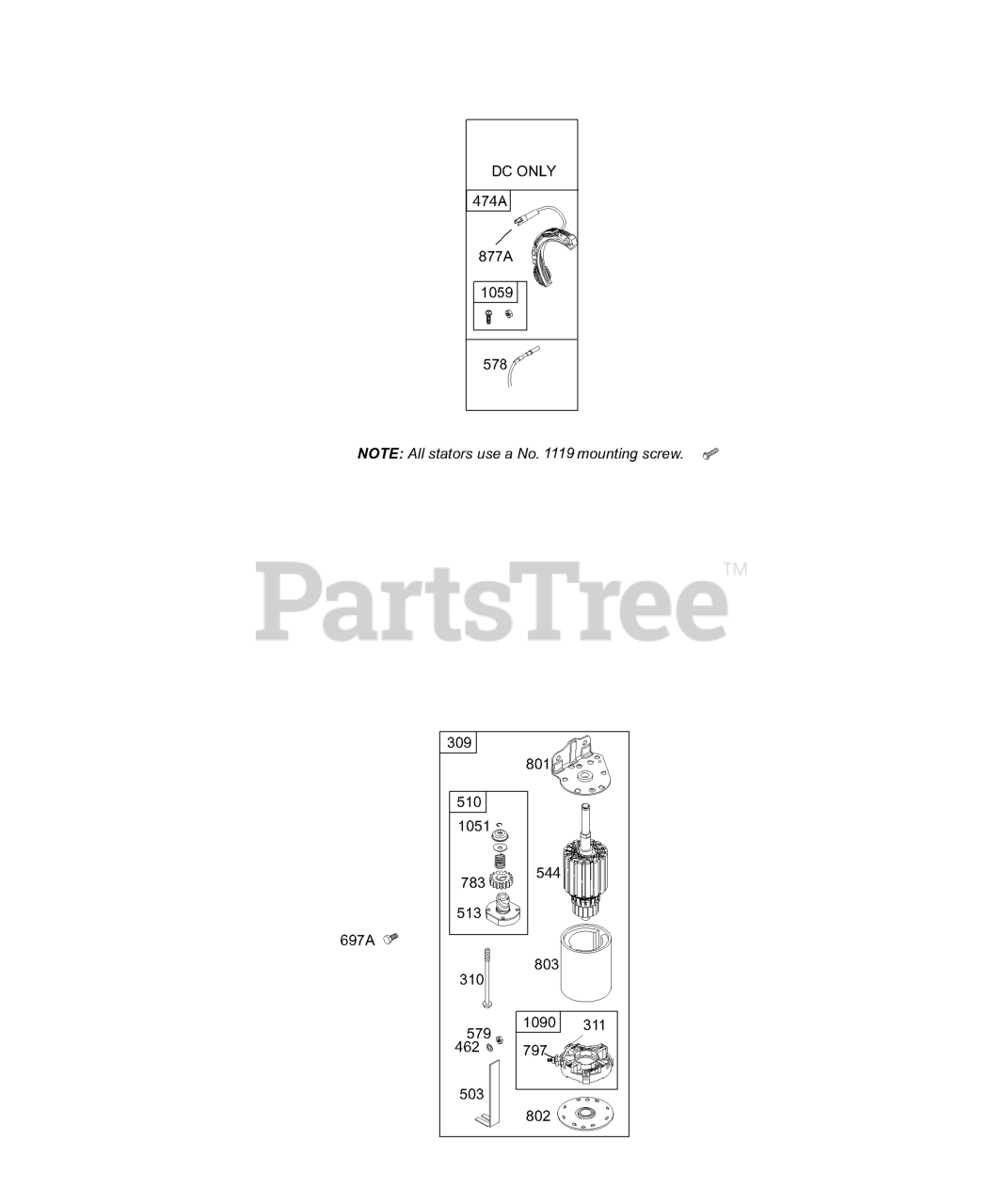

198707-0144-E1 - Briggs & Stratton Vertical Engine Stator, Electric Starter Parts Diagram

Vertical Engine

Stator, Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 693054

Motor-Starter
(Superseded to 497595)

$110.99

$

In Stock, only 4 left!

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 4 left!

0

474A

Briggs & Stratton 696578

Alternator
(Superseded to 592828)

Note: (DC Only)

$124.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

$90.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 692034

Armature-Starter

$82.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 692306

WIRE ASSEMBLY

$17.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

697A

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$3.99

$

In Stock, Qty 6

0

783

Briggs & Stratton 693059

Gear-Pinion
(Superseded to 695708)

$6.99

$

In Stock, Qty 20+

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

$25.99

$

Usually ships in 2-12 days

0

877A

Briggs & Stratton 393814

Wire/Connector-Alternator

Note: (DC Only)

$18.99

$

In Stock, only 2 left!

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, only 4 left!

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

In Stock, only 1 left!

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
