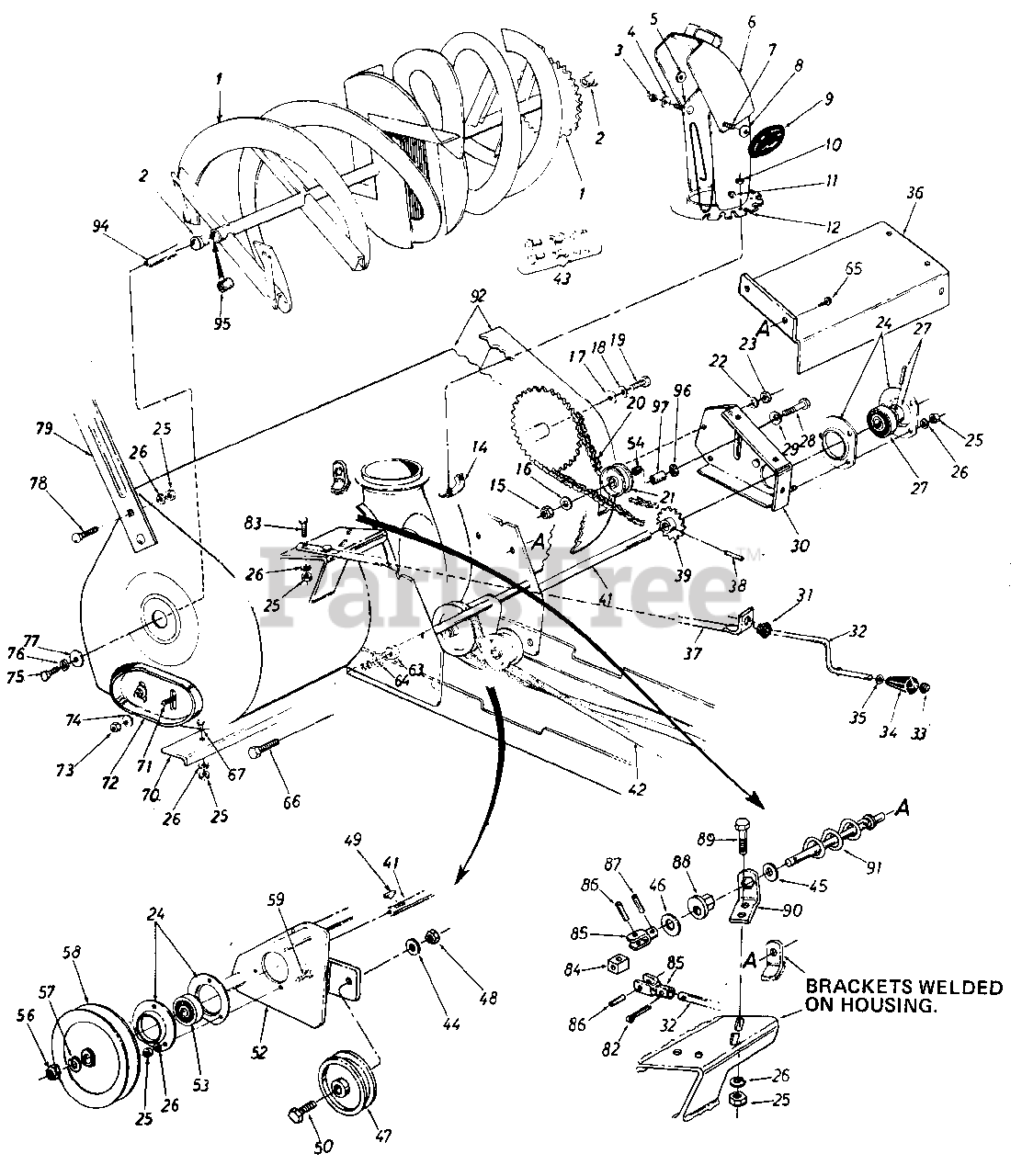

  • Title
05731

1

Spiral Ass'y.

Part# 05731

OEM Warranty Repair Part for MTD

Not available

741-0227

2

Flange Bearing

Part# 741-0227

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $7.58

712-0158

3

Hex Cent. L.-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.10

736-0105

4

Belleville Wash. 3/8" I.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0179

5

Flat Washer 3/8" I.D.

Part# 736-0179 (Superseded to 936-0179)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

05225

6

Top Chute Ass'y.

Part# 05225

OEM Warranty Repair Part for MTD

Currently unavailable

710-0260

7

Carriage Bolt 5/16-18 x .62" Lg.*

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

736-0105

8

Belleville Wash. 3/8" I.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

09966

9

Hand Knob

Part# 09966 (Superseded to 720-04072A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.50

712-0107

10

Hex Cent. L.-Nut 1/4-20 Thd.

Part# 712-0107 (Superseded to 912-0107)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

726-0111

11

PushCap .188" Dia. Rod

Part# 726-0111

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $4.45

05954

12

Chute Ass'y

Part# 05954

OEM Warranty Repair Part for MTD

Currently unavailable

05031

14

Chute Flang Keeper Ass'y.

Part# 05031

OEM Warranty Repair Part for MTD

Not available

712-0375

15

L.-Nut 3/8 16 Thd.

Part# 712-0375

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0300

16

Fl.-Wash.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

736-0179

17

Fl.-Wash.

Part# 736-0179 (Superseded to 936-0179)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

736-0253

18

Belleville Wash.

Part# 736-0253 (Superseded to 936-0253)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.63

710-0493

19

Hex Bolt 1/2-13 x 1.00" Lg.*

Part# 710-0493 (Superseded to 710-3131)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.48

713-0189

20

#420 Chain 1/2" Pitch x 77 L in ks

Part# 713-0189

OEM Warranty Repair Part for MTD

Not available

756-0358

21

Plastic Idler 2.00" O.D.

Part# 756-0358

OEM Warranty Repair Part for MTD

Not available

736-0329

22

L.-Wash. 1/4" I.D.*

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0287

23

Hex Nut 1/4-20 Thd.*

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

741-0311

24

Bearing Housing

Part# 741-0311 (Superseded to 941-0311)

OEM Warranty Repair Part for MTD

Not available

712-0267

25

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0119

26

L.-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

741-0310

27

Self-Aligning Bearing

Part# 741-0310

OEM Warranty Repair Part for MTD

Not available

710-0347

28

Hex Bolt 3/8-16 x 1.75" Lg.*

Part# 710-0347

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.26

736-0105

29

Belleville Wash. 3/8" I.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

05721

30

Chain Guard Ass'y.

Part# 05721

OEM Warranty Repair Part for MTD

Not available

735-0218

31

Grommet

Part# 735-0218 (Superseded to 941-0475)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.82

747-0487

32

Chute Crank .375 Dia. x 39" Lg.

Part# 747-0487

OEM Warranty Repair Part for MTD

Not available

726-0100

33

Push Nut 3/8" Rod

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

720-0171

34

Knob 3/8" Dia. Hole

Part# 720-0171 (Superseded to 920-0171)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.19

736-0117

35

Flat Washer

Part# 736-0117 (Superseded to 936-0117)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.60

784-5092

36

Drive Shaft Cover

Part# 784-5092

OEM Warranty Repair Part for MTD

Not available

749-0675

37

Crank Support Tubing

Part# 749-0675

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available TUBING-SUP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

715-0118

38

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

Part# 715-0118 (Superseded to 915-0118)

OEM Warranty Repair Part for MTD

Not available

713-0188

39

14 Teeth Sprocket Ass'y.

Part# 713-0188

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $52.68

784-5078

41

Drive Shaft

Part# 784-5078

OEM Warranty Repair Part for MTD

Not available

754-0291

42

"V" Belt 1/2" x .88" Lg. (Kevlar)

Part# 754-0291 (Superseded to 954-0291A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $46.97

713-0154

43

Master Link for #420 Chain

Part# 713-0154 (Superseded to 913-0154)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.68

736-0169

44

L.-Wash. 3/8" I.D.*

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

736-0140

45

Fl.-Wash. .385 I.D. x .62" O.D.

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.60

736-0234

46

Fl.-Wash. .390 I.D. x 1.50" O.D.

Part# 736-0234

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $3.92

756-0417

47

Fl.-Idler with Fldnges

Part# 756-0417

OEM Warranty Repair Part for MTD

Not available

712-0342

48

Hex Jam L.-Nut 3/8-26 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.03

714-0388

49

#61 Hi-Pro Key

Part# 714-0388 (Superseded to 914-0388)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.02

710-0520

50

Hex Bolt 3/8-16 x 1.50" Lg.*

Part# 710-0520

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

05725

52

Spiral Housing Ass'y.

Part# 05725

OEM Warranty Repair Part for MTD

Currently unavailable

741-0309

53

Self-Aligning Bearing

Part# 741-0309 (Superseded to 941-0309)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $51.09

741-0322

54

Sleeve Bearing .50" I.D.

Part# 741-0322

OEM Warranty Repair Part for MTD

Not available

712-0301

56

Hex Nut 3/4-10 Thd

Part# 712-0301

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.32

736-0367

57

L-Wash. 3/4" I.D

Part# 736-0367 (Superseded to 936-0364)

OEM Warranty Repair Part for MTD

Not available

756-0456

58

"V"-Pulley .750" I.D. x 6.00" O.D .

Part# 756-0456

OEM Warranty Repair Part for MTD

Not available

710-0198

59

Hex Sems Bolt 5/16-18 x .75" Lg.*

Part# 710-0198 (Superseded to 910-0198)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.77

712-0239

63

Hex L.-Nutl/2-20 Thd.

Part# 712-0239 (Superseded to 912-0239)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.71

736-0921

64

L.-Wash. 1/2" I.D. x

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

710-0599

65

Hex Wash. Hd. Tap Scr. 1/4-20 x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

710-0504

66

Hex Bolt 1/2-20 x 1.25" Lq*

Part# 710-0504

OEM Warranty Repair Part for MTD

Not available

710-0260

67

Carriage Bolt 5/16-18 x .62"*

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

05723

70

Shave Plate

Part# 05723

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

710-0389

71

Carriage Bolt 3/8-16 x .75" Lg.*

Part# 710-0389

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

784-5030

72

Skid Shoe

Part# 784-5030 (Superseded to 784-5038B-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $18.98

712-0798

73

Hex Nut 3/8-16 Thd.*

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0105

74

Belleville Wash. 3/8" I.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-0493

75

Hex Bolt 1/2-13 x 1.00" Lg.*

Part# 710-0493 (Superseded to 710-3131)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.48

736-0253

76

Belleville Wash. 1/2" I.D.

Part# 736-0253 (Superseded to 936-0253)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.63

736-0179

77

Fl.-Wash.

Part# 736-0179 (Superseded to 936-0179)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.97

710-0260

78

Carriage Bolt 5/16-18 x .62" Lg.*

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

05139

79

Drift Cutter

Part# 05139 (Superseded to 790-00181-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $28.13

714-0111

82

Cotter Pin 3/32" Dia.

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0442

83

Hex Bolt 5/16-18 x 1.50" Lg.*

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

711-0584

84

Joint Block

Part# 711-0584

OEM Warranty Repair Part for MTD

Not available

05066

85

Joint Bracket Ass'y.

Part# 05066

OEM Warranty Repair Part for MTD

Not available

715-0248

86

Spring Pin Roll 3/16" Dia. x .75" Lg.*

Part# 715-0248

OEM Warranty Repair Part for MTD

Not available

715-0103

87

Spring Pin Roll 1/8" Dia. x .75" Lg.*

Part# 715-0103

OEM Warranty Repair Part for MTD

Not available

741-0403

88

Hex Bushing .385 I.D.

Part# 741-0403

OEM Warranty Repair Part for MTD

Not available

710-0260

89

Carriage Bolt 5/16-18 x .62

Part# 710-0260 (Superseded to 710-0260A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.76

784-5085

90

Chute Crank Bracket

Part# 784-5085

OEM Warranty Repair Part for MTD

Not available

784-5084

91

Chute Crank Ass'y.

Part# 784-5084

OEM Warranty Repair Part for MTD

Not available

05725

92

Spiral Housing Ass'y.

Part# 05725

OEM Warranty Repair Part for MTD

Currently unavailable

05737

94

Spiral Axle Ass'y.

Part# 05737

OEM Warranty Repair Part for MTD

Not available

741-0217

95

Sleeve Bearing

Part# 741-0217 (Superseded to 941-0217)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $12.33

736-0247

96

Flat Washer

Part# 736-0247

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.47

750-0252

97

Idler Spacer

Part# 750-0252 (Superseded to 950-0252)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.69
