19930S - MTD 40" Snow Thrower Attachment (1985)

40" Snow Thrower Attachment

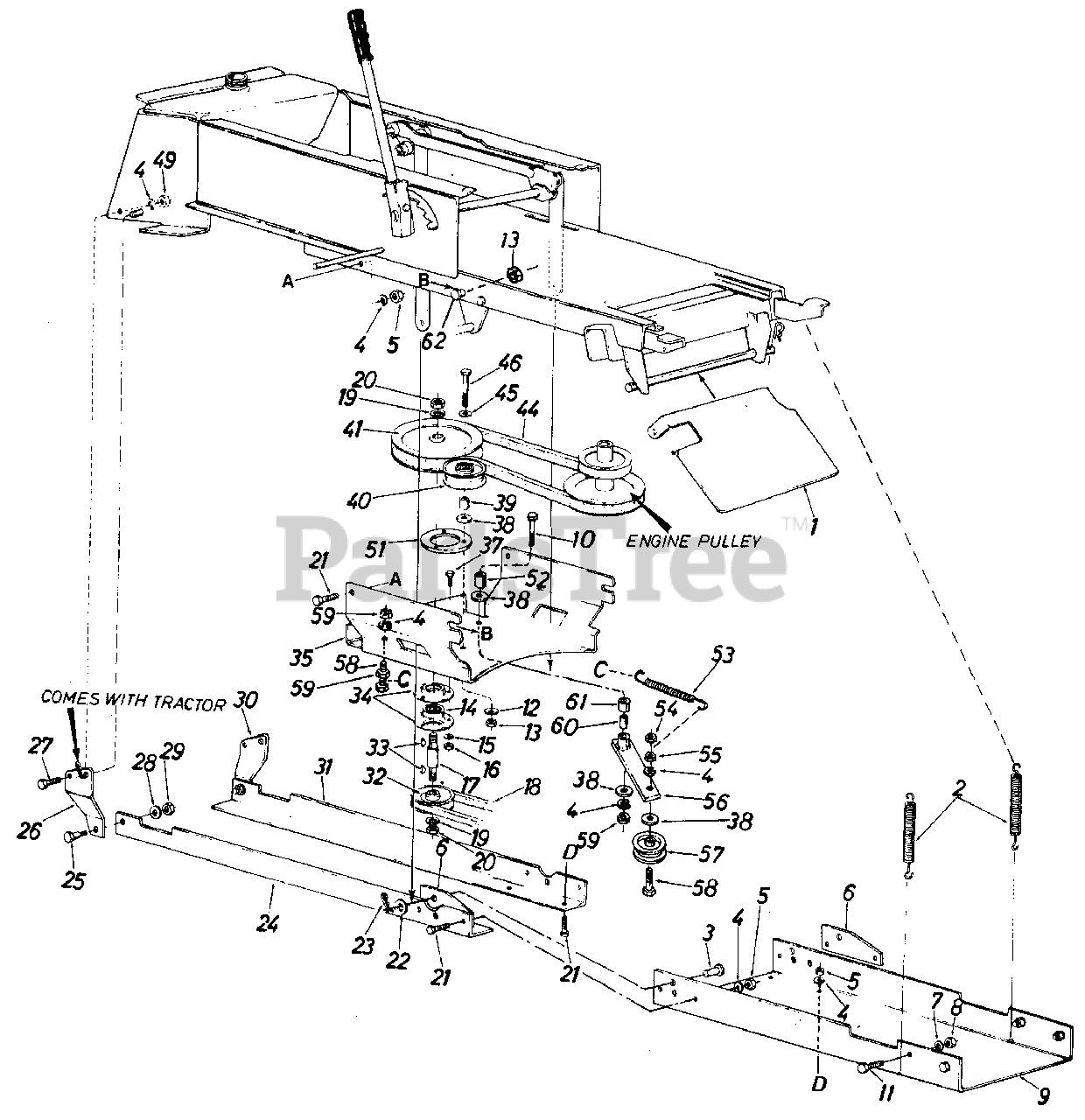

19930S - MTD 40" Snow Thrower Attachment (1985) > Parts Diagrams (3) > 40"

  • Title
784-5091

1

Guide Bracket

Part# 784-5091

OEM Warranty Repair Part for MTD

Not available

732-0233

2

Helper Spring

Part# 732-0233 (Superseded to 932-0233)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $10.87

711-0332

3

Clevis Pin

Part# 711-0332 (Superseded to 911-0332)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $10.99

736-0169

4

L.-Wash. 3/8" I.D.*

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0241

5

Hex L.-Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.86

05714

6

Attaching Plate

Part# 05714

OEM Warranty Repair Part for MTD

Not available

736-0921

7

L.-Wash. 1/2" I.D.*

Part# 736-0921 (Superseded to 936-0921)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0239

8

Hex L.-Nut 1/2-20 Thd.

Part# 712-0239 (Superseded to 912-0239)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.71

05719

9

Front Support Channel

Part# 05719

OEM Warranty Repair Part for MTD

Not available

710-0771

10

Hex Bolt 3/8-16 x 3 75" Lg.

Part# 710-0771 (Superseded to 710-04576)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $3.40

710-0504

11

Hek Bolt 1/2-20 x 1.25" Lg.*

Part# 710-0504

OEM Warranty Repair Part for MTD

Not available

736-0105

12

Belleville Wash. 3/8" I.D.

Part# 736-0105

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

712-0375

13

Hex L.-Nut 3/8-16 Thd.

Part# 712-0375

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

741-0919

14

Ball Bearing

Part# 741-0919 (Superseded to 941-0919B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $16.76

736-0119

15

L.-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.15

712-0267

16

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.87

738-0246

17

Spindle

Part# 738-0246

OEM Warranty Repair Part for MTD

Not available

754-0236

18

"V"-Belt 1/2" x 85 x 2 (Kevlar)

Part# 754-0236 (Superseded to 954-0236)

OEM Warranty Repair Part for MTD

Not available

736-0158

19

L.-Wash. 5/8" I.D.*

Part# 736-0158 (Superseded to 936-0158)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.89

712-0242

20

Hex Jam Nut 5/8-11 Thd.

Part# 712-0242 (Superseded to 912-0261)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $7.07

710-0152

21

Hex Bolt 3/8-24 x 1.00" Lg.*

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0192

22

Flat Washer

Part# 736-0192 (Superseded to 936-0192)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.77

714-0117

23

Internal Cotter Pin

Part# 714-0117

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.82

05718

24

Rear Support Angle-R.H.

Part# 05718

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available ANGLE-SUPP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

738-0163

25

Shld. Bolt .623" Dia. x .258" Lg.

Part# 738-0163

OEM Warranty Repair Part for MTD

Not available

05716

26

Rear Hanger Brk't.-R.H.

Part# 05716 (Superseded to 05716-0637)

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

BRACKET-HANGER-RH-

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

710-0152

27

Hex Bolt 3/8 x 1.00" Lg.*

Part# 710-0152 (Superseded to 710-1039)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.94

736-0319

28

Fl.-Wash. .44" I.D. x 1.38" O.D. x .130

Part# 736-0319 (Superseded to 936-0319)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $8.16

712-0290

29

Hex L.-Nut 7/16-24 Thd.

Part# 712-0290

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.00

05715

30

Rear Hanger Brk't.-L.H.

Part# 05715

OEM Warranty Repair Part for MTD

Not available

05717

31

Rear Support Angle-L.H.

Part# 05717 (Superseded to 05717-0637)

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

ANGLE-SUPPORT-LH-R

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

756-0457

32

Lower Drive Pulley 5/8 x 5.56

Part# 756-0457

OEM Warranty Repair Part for MTD

Not available

714-0388

33

#6 Hi-Pro Key 3/16 x 5/8" Dia.

Part# 714-0388 (Superseded to 914-0388)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $5.02

08253

34

Bearing Housing

Part# 08253 (Superseded to 08253B)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.19

05713

35

Supporting Bracket

Part# 05713

OEM Warranty Repair Part for MTD

Not available

710-0322

37

Hex Sems Bolt 5/16-18 x 1.00" Lg.*

Part# 710-0322

OEM Warranty Repair Part for MTD

Not available

736-0258

38

Fl Wash. .38" I.D. x 1.00" O.D. x .135

Part# 736-0258

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.92

748-0193

39

Spacer .38" I.D. x .62" O.D.

Part# 748-0193 (Superseded to 948-0193)

OEM Warranty Repair Part for MTD

Not available

1626-104

40

Fl.-IdlerPulley

Part# 1626-104 (Superseded to 756-0405)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $49.07

756-0216

41

Upper Drive Pulley

Part# 756-0216

OEM Warranty Repair Part for MTD

Not available

754-0206

44

"V"-Belt 1/2" x 49.8" Lg.

Part# 754-0206 (Superseded to 954-0206)

OEM Warranty Repair Part for MTD

Not available

736-0140

45

Fl.-Wash.

Part# 736-0140 (Superseded to 936-0140)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.60

710-0937

46

Hex Bolt 3/8-16 x 2.50" Lg.*

Part# 710-0937 (Superseded to 710-0859)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $4.44

712-0798

49

Hex Nut 3/8-16 Thd.*

Part# 712-0798

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.83

13778

51

Reinforcement Plate

Part# 13778

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available PLATE-MTG-

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for MTD

Not available

750-0511

52

Spacer .37" I.D. x .562" O.D. x 1.50" Lg.

Part# 750-0511

OEM Warranty Repair Part for MTD

Not available

732-0470

53

Extension Spring .54" O.D. x 5.25" Lg.

Part# 732-0470 (Superseded to 932-0470A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $6.71

712-0266

54

Hex Cent. L.-Nut 3/8-16 Thd.

Part# 712-0266 (Superseded to 712-0266A)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $2.55

712-0242

55

Hex Jam Nut 5/8-11 Thd.

Part# 712-0242 (Superseded to 912-0261)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $7.07

703-1292

56

Idler Arm Ass'y.

Part# 703-1292 (Superseded to 703-1396-0637)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $112.87

756-0417

57

Idler Pulley

Part# 756-0417

OEM Warranty Repair Part for MTD

Not available

710-0756

58

Hex Bolt 3/8-16 x 2.25" Lg.

Part# 710-0756

OEM Warranty Repair Part for MTD

Not available

712-0342

59

Hex Jam Nut 3/8-16 Thd.

Part# 712-0342 (Superseded to 912-3008)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $3.03

750-0252

60

Spacer .377" I.D. x .60" O.D. x .830" Lg.

Part# 750-0252 (Superseded to 950-0252)

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 1 business day

Your price: $13.69

748-0193

61

Spacer.380" I.D. x .630" O.D. x .565" Lg.

Part# 748-0193 (Superseded to 948-0193)

OEM Warranty Repair Part for MTD

Not available

738-0143

62

Shld. Bolt .498" Dia. x .340"

Part# 738-0143

OEM Warranty Repair Part for MTD

Usually leaves our warehouse in 3 to 6 business days

Your price: $2.88
