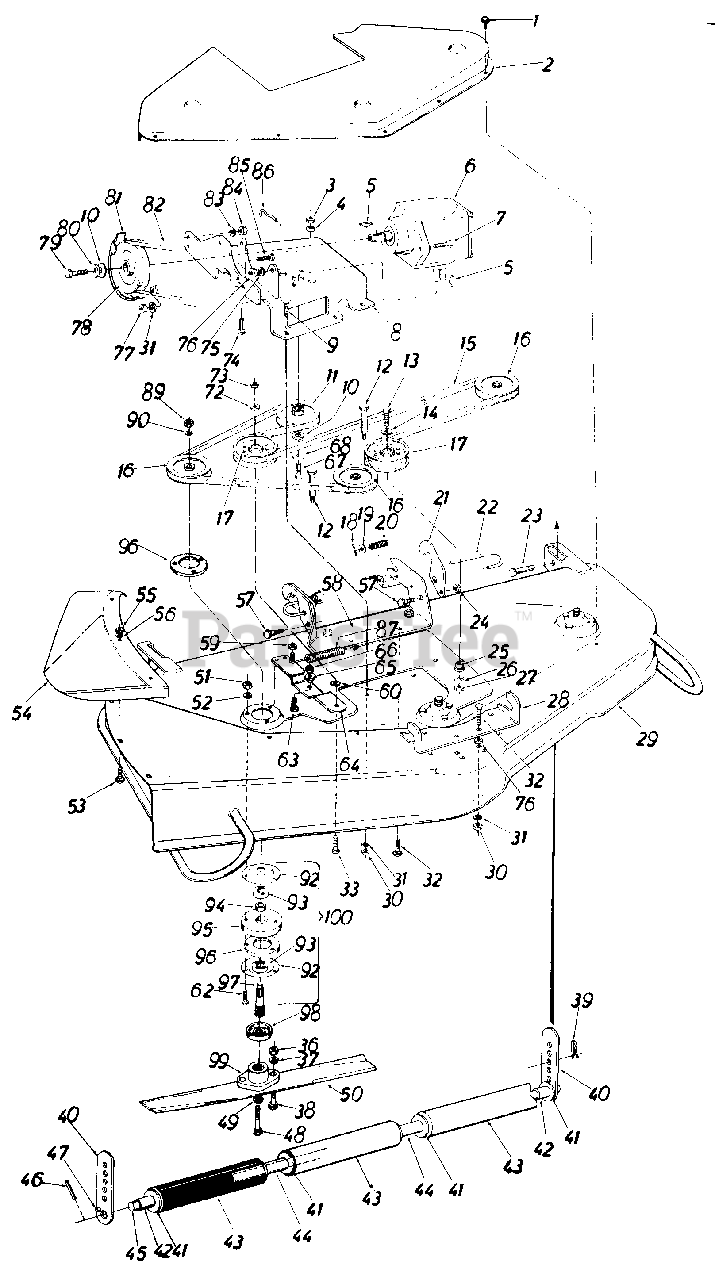

19958S - MTD Mower Deck Assembly Only (1985) 50" Parts Diagram

Mower Deck Assembly Only

50" Parts Diagram

  • Title
1

MTD Part# 710-0352

Hex "B"-Tapp Scr. 1/4-20 x 3/8" Lg.
Usually ships in 1 day

$

$3.24

0

2

MTD Part# 13198

Belt Cover
Usually ships same day

Currently unavailable

$

$

3

MTD Part# 712-0267

Hex Nut 5/16-29 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

4

MTD Part# 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

5

MTD Part# 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.
Usually ships in 1 day

$

$3.35

0

6

Part#

Right Angle Gear Box
Usually ships same day

Not available

$

$

7

MTD Part# 710-0342

Hex Scr. 3/8-16 x 1.25" Lg.*
(Superseded to 710-3005)
Usually ships in 1 day

$

$2.86

0

8

MTD Part# 13113

Deck Bracket Ass'y.
Usually ships same day

Not available

$

$

9

MTD Part# 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*
Usually ships in 1 day

$

$2.84

0

10

MTD Part# 736-0231

Fl.-Wash. 5/16" I.D. x 1 12 O.D.
(Superseded to 936-0231)
Usually ships in 5 to 10 days

$

$3.23

0

11

MTD Part# 756-0285

Deck Pulley Out Put
Usually ships same day

Not available

$

$

12

MTD Part# 738-0129

Shoulder Scr. 1/2" Dia. x 2.00" Lg.
Usually ships in 5 to 10 days

$

$7.90

0

13

MTD Part# 710-0756

Hex Scr. 3/8-16 x 2.25" Lg.
Usually ships same day

Not available

$

$

14

MTD Part# 736-0300

Fl-Wash. 3/8" I.D.
(Superseded to 936-0300)
Usually ships in 1 day

$

$3.15

0

15

MTD Part# 754-0215

"V"-Belt 1/2" x 108" Lg.
Usually ships same day

Not available

$

$

16

MTD Part# 756-0355

Deck Pulley
(Superseded to 756-0519)
Usually ships in 1 day

$

$59.89

0

17

MTD Part# 711-0306

Idler Pulley 4.62" O.D.
Usually ships in 5 to 10 days

$

$81.24

0

18

MTD Part# 715-0129

Roll Pin 1/8" Dia.
Usually ships in 5 to 10 days

$

$3.31

0

19

MTD Part# 736-0185

Fl-Wash. .406 I.D. x .734 O.D
(Superseded to 936-0185)
Usually ships in 1 day

$

$2.76

0

20

MTD Part# 732-0306

Compression Spring .47 O.D. x 1.93
(Superseded to 932-0306A)
Usually ships in 1 day

$

$6.09

0

21

MTD Part# 12564

Hanger Lock
Usually ships same day

Not available

$

$

22

MTD Part# 747-0160

Release Pin
Usually ships same day

Not available

$

$

23

MTD Part# 711-0310

Clevis Pin .500" Dia.
(Superseded to 911-0310)
Usually ships same day

Not available

$

$

24

MTD Part# 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

25

MTD Part# 711-0656

Idler Adapter
Usually ships same day

Not available

$

$

26

MTD Part# 736-0169

L-Wash. 3/8" Scr.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

27

MTD Part# 712-0214

Hex Cent. L-Nut 3/8-24 Thd.
(Superseded to 912-0214)
Usually ships same day

Not available

$

$

28

MTD Part# 12646

Front Deck Hanger Brk't.

Variations

MTD Part# 12646-0637

Front Deck Hanger Brkt. - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

29

MTD Part# 12640

50" Deck Ass'y.

Variations

MTD Part# 12640-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 12640-0648

No Longer Available - TECH GRAY (0648)
Usually ships same day

Not available

$

$

MTD Part# 12640-0665

No Longer Available - YARDMAN GREEN (0665)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

30

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

31

MTD Part# 736-0119

L.-Wash.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

32

MTD Part# 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*
Usually ships in 1 day

$

$2.92

0

33

MTD Part# 710-0312

Hex Scr. 5/8-18 x 1.31" Lg.
Usually ships same day

Not available

$

$

36

MTD Part# 712-0237

Hex Cent. L.-Nut 5/16-24 Thd.
(Superseded to 912-0237)
Usually ships same day

Not available

$

$

37

MTD Part# 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

38

MTD Part# 710-0117

Hex Scr. 5/16-24 x 1.00 Lg.*
(Superseded to 710-0888)
Usually ships in 1 day

$

$3.06

0

39

MTD Part# 714-0101

Internal Cotter Pin
(Superseded to 914-0101)
Usually ships same day

Not available

$

$

40

MTD Part# 12650

Height Adjusters

Variations

MTD Part# 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)
Usually ships in 1 day

$

$30.86

0

MTD Part# 12650-4008

Height Adjuster - WINE RED (4008)
Usually ships in 1 day

$

$30.86

0

Usually ships in 5 to 10 days

$

$30.86

0

41

MTD Part# 736-0188

Fl.-Wash. .75 I.D. x 1.50 O.D.
Usually ships in 1 day

$

$3.00

0

42

MTD Part# 750-0212

Spacer .758" Dia. x 1.25 O D. x .530
(Superseded to 950-0212)
Usually ships same day

Not available

$

$

43
Usually ships in 1 day

$

$50.90

0

44

MTD Part# 750-0288

Spacer Tube

Variations

MTD Part# 750-0288-0637

Spacer, .82 x 1.0 x 5.75 - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

45

MTD Part# 738-0295

Roller Shaft
Usually ships in 1 day

$

$87.71

0

46

MTD Part# 715-0246

Roll Pin 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0246)
Usually ships in 1 day

$

$4.76

0

47

MTD Part# 715-0180

Spring-Pin Spiral 1/4" Dia. x 1.00" Lg.
Usually ships same day

Currently unavailable

$

$

48

MTD Part# 715-0108

Thread Roll Hex Scr. 3/8-24 x .75" Lg.
Usually ships in 1 day

$

$3.52

0

49

MTD Part# 736-0217

L.-Wash. 5/16" Scr. Heavy Duty
(Superseded to 936-0217)
Usually ships in 1 day

$

$3.06

0

50

MTD Part# 742-0171

Blade 17"
(Superseded to 942-0171B)
Usually ships in 1 day

$

$32.17

0

51

MTD Part# 712-0237

Hex Cent. L-Nut 5/16-24 Thd.
(Superseded to 912-0237)
Usually ships same day

Not available

$

$

52

MTD Part# 736-0119

L.-Wash. 5/16" Scr.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

53

MTD Part# 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*
Usually ships in 1 day

$

$2.84

0

54

MTD Part# 12649

Chute Guard

Variations

MTD Part# 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$118.32

0

MTD Part# 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)
Usually ships in 5 to 10 days

$

$118.32

0

MTD Part# 12649-0648

GUARD-CHUTE - TECH GRAY (0648)
Usually ships same day

Not available

$

$

MTD Part# 12649-0650

No Longer Available GUARD-CHUT - RED METALLIC (0650)
Usually ships same day

Not available

$

$

MTD Part# 12649-0662

No Longer Available GUARD-CHUT - OYSTER GRAY (0662)
Usually ships same day

Not available

$

$

MTD Part# 12649-0665

No Longer Available GUARD-CHUT - YARDMAN GREEN (0665)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

55

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

56

MTD Part# 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

57

MTD Part# 738-0296

Shoulder Bolt
(Superseded to 938-0296)
Usually ships same day

Not available

$

$

58

MTD Part# 12648

Roller Shaft

Variations

MTD Part# 12648-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

59

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

60

MTD Part# 736-0187

Fl.-Wash. .62 I.D.
Usually ships in 1 day

$

$3.19

0

62

MTD Part# 710-0117

Hex Scr. 5/16-24 x 1.00" Lg.*
(Superseded to 710-0888)
Usually ships in 1 day

$

$3.06

0

63

MTD Part# 712-0376

Hex Scr. 5/16-18 x 1.00" Lg.
Usually ships same day

Not available

$

$

64

MTD Part# 13199

Idler Bracket Ass'y.
Usually ships same day

Currently unavailable

$

$

65

MTD Part# 711-0404

Shoulder Nut
Usually ships same day

Not available

$

$

66

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

67

MTD Part# 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.*
(Superseded to 710-3103)
Usually ships in 1 day

$

$3.19

0

68

MTD Part# 736-0242

Belleville Wash.
Usually ships in 1 day

$

$3.00

0

72

MTD Part# 736-0187

Fl-Wash. .62 I.D.
Usually ships in 1 day

$

$3.19

0

73

MTD Part# 712-0923

Hex Cent. L.-Nut 5/8-18 Thd.
Usually ships in 5 to 10 days

$

$4.81

0

74

MTD Part# 710-0722

Hex Scr. 1/4-20 x 1.25" Lg.
(Superseded to 710-0106)
Usually ships in 1 day

$

$2.91

0

75

MTD Part# 736-0169

L-Wash. 3/8 Scr.*
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

76

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.*
Usually ships in 1 day

$

$3.06

0

77

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

78

MTD Part# 756-0284

Pulley 4.75" O.D.-Input
Usually ships same day

Not available

$

$

79

MTD Part# 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.*
(Superseded to 710-3103)
Usually ships in 1 day

$

$3.19

0

80

MTD Part# 736-0242

Belleville Wash.
Usually ships in 1 day

$

$3.00

0

81

MTD Part# 13181

Belt Guard
Usually ships same day

Currently unavailable

$

$

82

MTD Part# 754-0230

"A"-Section "V"-Belt 1/2" x 56" Lg.
(Superseded to 954-0230)
Usually ships in 5 to 10 days

$

$28.93

0

83

MTD Part# 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

84

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

85

MTD Part# 710-0118

Hex Scr. 5/16-18 x .75" Lg*
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

86

MTD Part# 07439

Spring Tension Anchor Pin
Usually ships same day

Currently unavailable

$

$

87

MTD Part# 732-0180

Extension Spring
(Superseded to 932-0180)
Usually ships in 1 day

$

$9.74

0

89

MTD Part# 712-0318

Hex Jam Nut 5/8-18 Thd.
Usually ships in 1 day

$

$2.63

0

90

MTD Part# 736-0158

L.-Wash. 5/8 I.D.
(Superseded to 936-0158)
Usually ships in 1 day

$

$3.11

0

92

MTD Part# 08253

Bearing Housing
(Superseded to 08253B)
Usually ships in 1 day

$

$14.27

0

93

MTD Part# 741-0919

Ball Bearing
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

94

MTD Part# 750-0456

Spacer
(Superseded to 950-0456)
Usually ships in 1 day

$

$3.11

0

95

MTD Part# 14088

Spindle Spacer Plate
(Superseded to 14088B-0637)
Usually ships in 5 to 10 days

$

$20.61

0

96

MTD Part# 09164

Reinforcement Plate
(Superseded to 09164A-0637)
Usually ships in 1 day

$

$23.55

0

97

MTD Part# 738-0469

Spindle
(Superseded to 938-0469B)
Usually ships in 1 day

$

$85.53

0

98

MTD Part# 13703

Bearing Shield
Usually ships same day

Not available

$

$

99

MTD Part# 748-0283

Blade Adapter
(Superseded to 748-0235)
Usually ships in 1 day

$

$16.65

0

100

MTD Part# 14199

Deck Spindle Ass'y.
Usually ships in 5 to 10 days

$

$181.16

0
