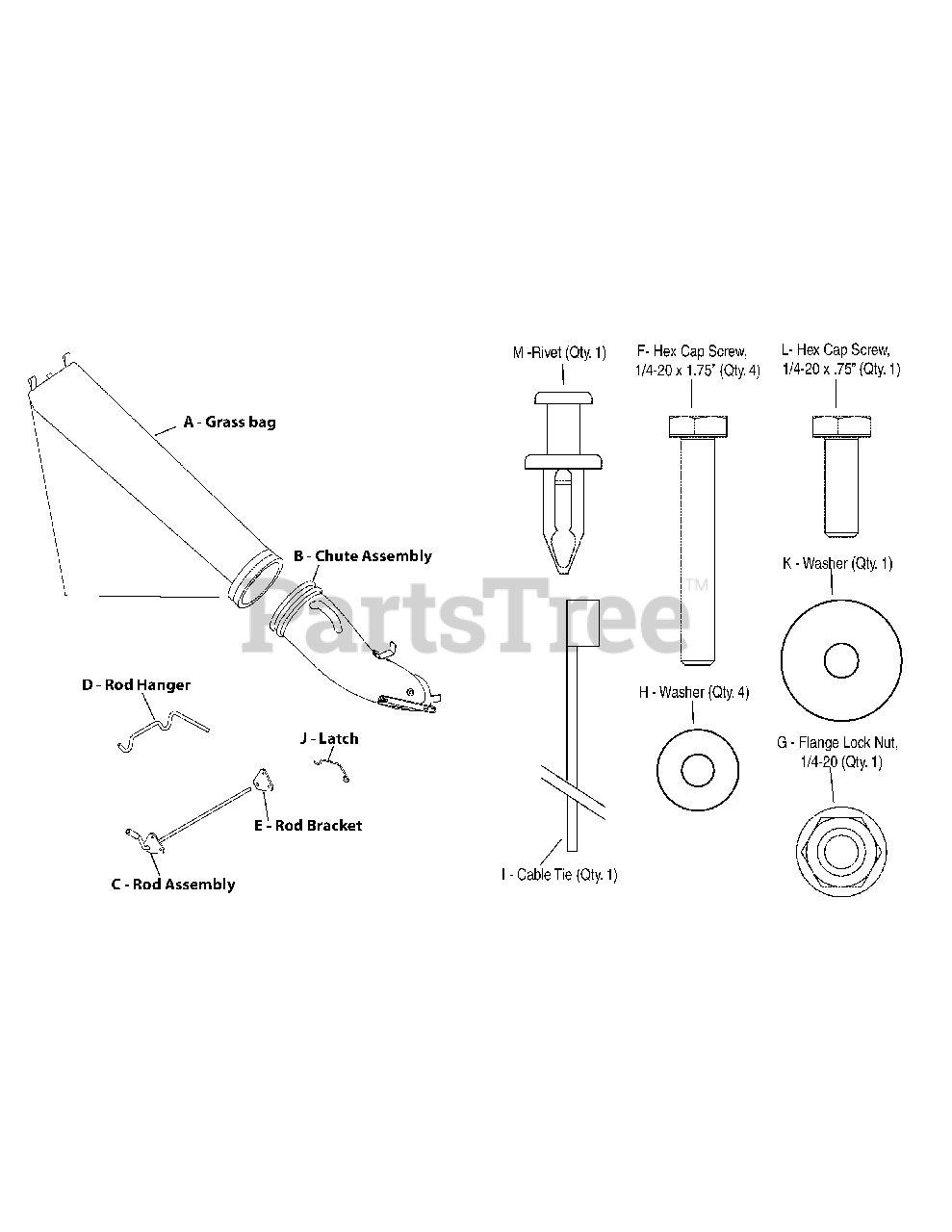

33" Grass Bag Kit

General Assembly Parts Diagram

  • Title

A

Troy-Bilt 753-06118

Grass bag

$108.99

$

In Stock, only 2 left!

0

B

Troy-Bilt 753-06127

Chute Assembly

$190.99

$

Usually ships in 3-6 days

0

C

Troy-Bilt 647-04110-0637

Rod Assembly

$134.99

$

Usually ships in 3-6 days

0

D

Troy-Bilt 747-04671

Rod Hanger

$31.99

$

In Stock, only 1 left!

0

E

Troy-Bilt 787-01569-0637

Rod Bracket

$29.99

$

Usually ships in 3-6 days

0

F

Troy-Bilt 710-0136

Hex Cap Screw,1/4-20 x 1.75" (Qty. 4)

$4.49

$

In Stock, Qty 14

0

G

Troy-Bilt 712-04064

Flange Lock Nut,1/4-20 (Qty. 1)

$4.49

$

In Stock, Qty 20+

0

H

Troy-Bilt 936-0463

Washer (Qty. 4)
(Superseded to 736-0463)

$4.99

$

In Stock, Qty 20+

0

I

Troy-Bilt 726-0230

Cable Tie (Qty. 1)

$28.99

$

In Stock, only 1 left!

0

J

Troy-Bilt 747-04670

Latch

Variations

747-04670-0637

Troy-Bilt 747-04670-0637

Chute Latch, Elbow - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

K

Troy-Bilt 936-0176

Washer (Qty. 1)
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 20+

0

L

Troy-Bilt 710-3015

Hex Cap Screw,1/4-20 x .75" (Qty. 1)

$4.49

$

In Stock, Qty 20+

0

M

Troy-Bilt 728-0199

Rivet (Qty. 1)

$4.99

$

In Stock, Qty 20+

0
