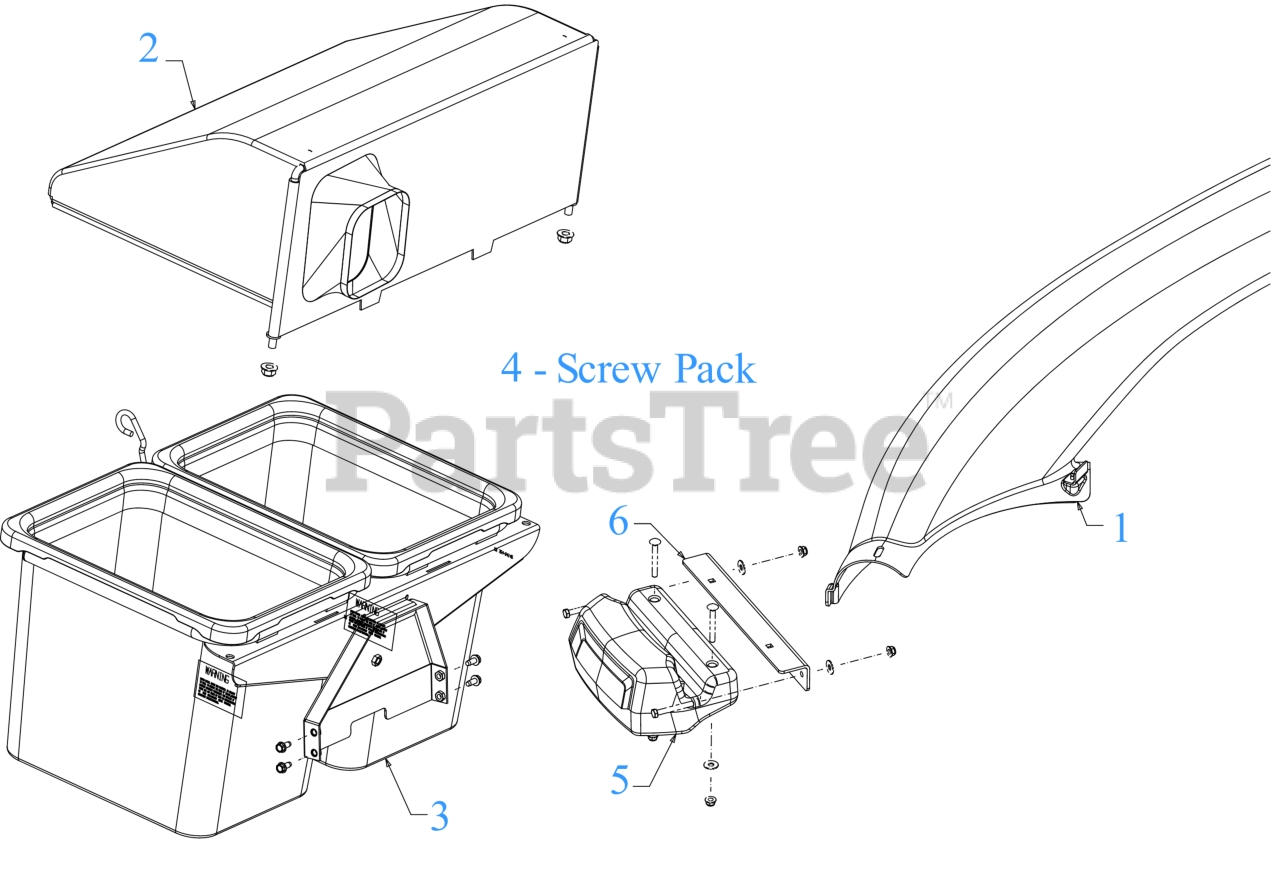

19A30014 (19A30014100) - Cub Cadet 30" Twin Rear Bagger (2020) General Assembly Parts Diagram

30" Twin Rear Bagger

General Assembly Parts Diagram

  • Title

1

Cub Cadet 631-05078P

BAG CHUTE ASSEMBLY

$156.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 928-0123

POP RIVET

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 783-07286A-0637

SWITCH BRACKET

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

2

TOP COVER ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

3

FRAME ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

4

Cub Cadet 683-05147

SCREWPACK

Note: (See Separate Breakdown)

$30.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-09227

COUNTERWEIGHT

$87.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 783-08135-0637

MOUNT BRACKET

$51.99

$

Usually ships in 3-6 days

0
