19A30018 (19A30018100) - Cub Cadet Triple Rear Bagger att2 General Assembly Parts Diagram

Triple Rear Bagger

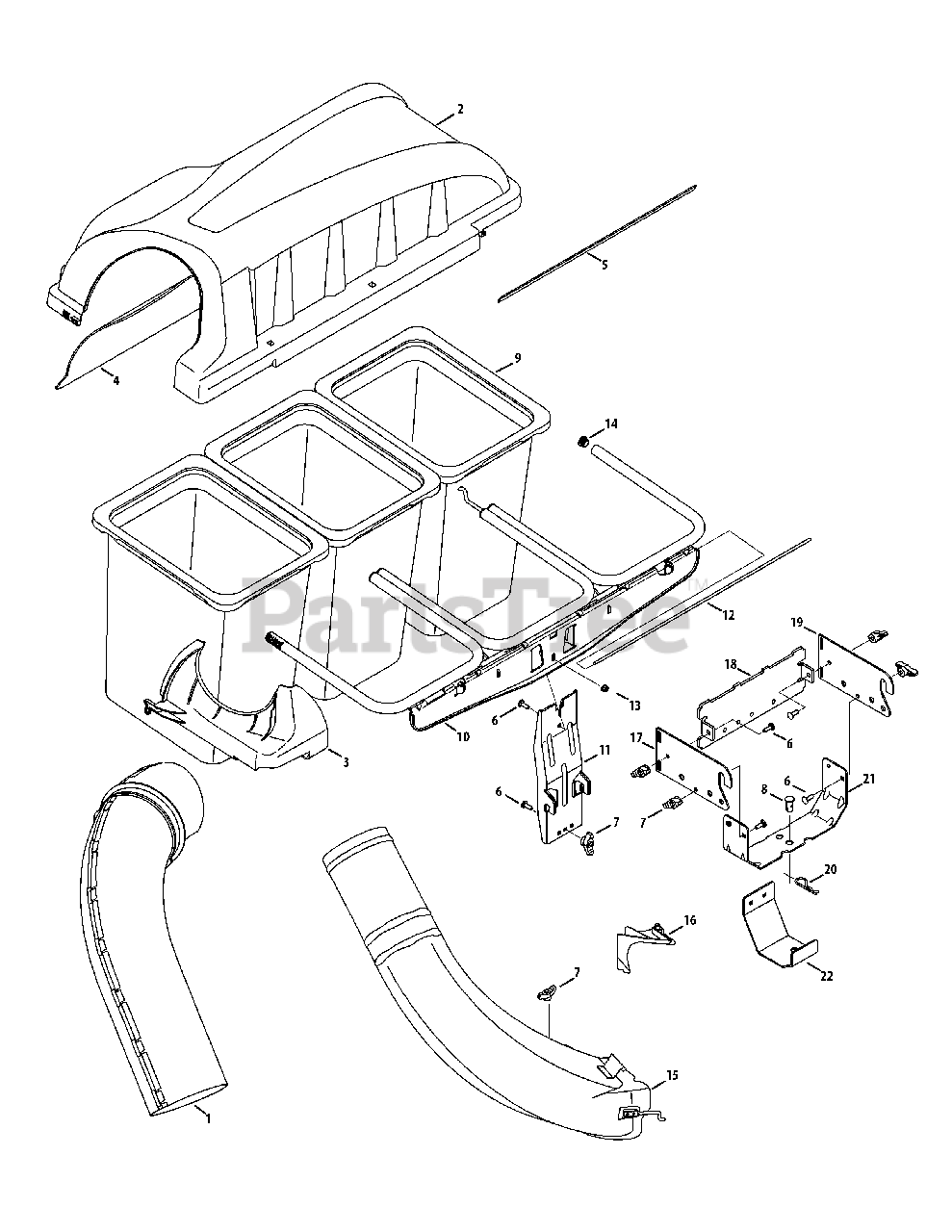

General Assembly Parts Diagram

  • Title

1

Cub Cadet 931-04291

Upper Chute Assembly
(Superseded to 931-04291A)

$129.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-04298P

Triple Bagger Cover Assembly

$224.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-06497

Upper Chute Support

$38.99

$

In Stock, only 3 left!

0

4

Cub Cadet 731-06504

Bagger Cover Screen

$18.99

$

In Stock, only 2 left!

0

5

Cub Cadet 721-04388

Adhesive Foam Strip

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0276

Carriage Screw, 5/16-18 x 1.00"

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 720-04122

Wing Knob, 5/16-18

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-0309A

Clevis Pin, .62" Dia.

$12.99

$

In Stock, only 4 left!

0

9

Cub Cadet 964-04090A

Grass-bag Assembly

$101.99

$

In Stock, Qty 14

0

10

Cub Cadet 683-04498A-0637

Triple Bag Support Assembly
(Superseded to 683-04498B-0637)

$233.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 683-04519B-0637

Vertical Support Bracket

$151.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-05079

Cover Hinge Pin

$24.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 735-0246A

End Plug

$6.49

$

In Stock, Qty 12

0

15

Cub Cadet 631-05103

Discharge Chute Elbow, 50/54" Deck

$234.99

$

In Stock, only 2 left!

0

16

Cub Cadet 731-10133

Chute Adapter, 50-54" Decks

$19.99

$

In Stock, only 1 left!

0

17

Hitch Bracket, RH

Note: Order 689-00304A

$

$

Not available

18

Universal Rear Attachment Bracket

Note: Order 689-00304A

$

$

Not available

19

Hitch Bracket, LH

Note: Order 689-00304A

$

$

Not available

20

Cub Cadet 711-0309A

Clevis Pin, .62 Dia.

$12.99

$

In Stock, only 4 left!

0

21

Cub Cadet 783-08129-0637

Universal Bracket Support

$56.99

$

In Stock, only 4 left!

0

22

Cub Cadet 783-08856

Bagger Support Bracket

Variations

783-08856-0637

Cub Cadet 783-08856-0637

BRACKET-BAGR SUPPORT - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 689-00304A

Hitch Bracket Assembly

Note: (Incl. 17,18 & 19)(not shown)

$

$

Not available
