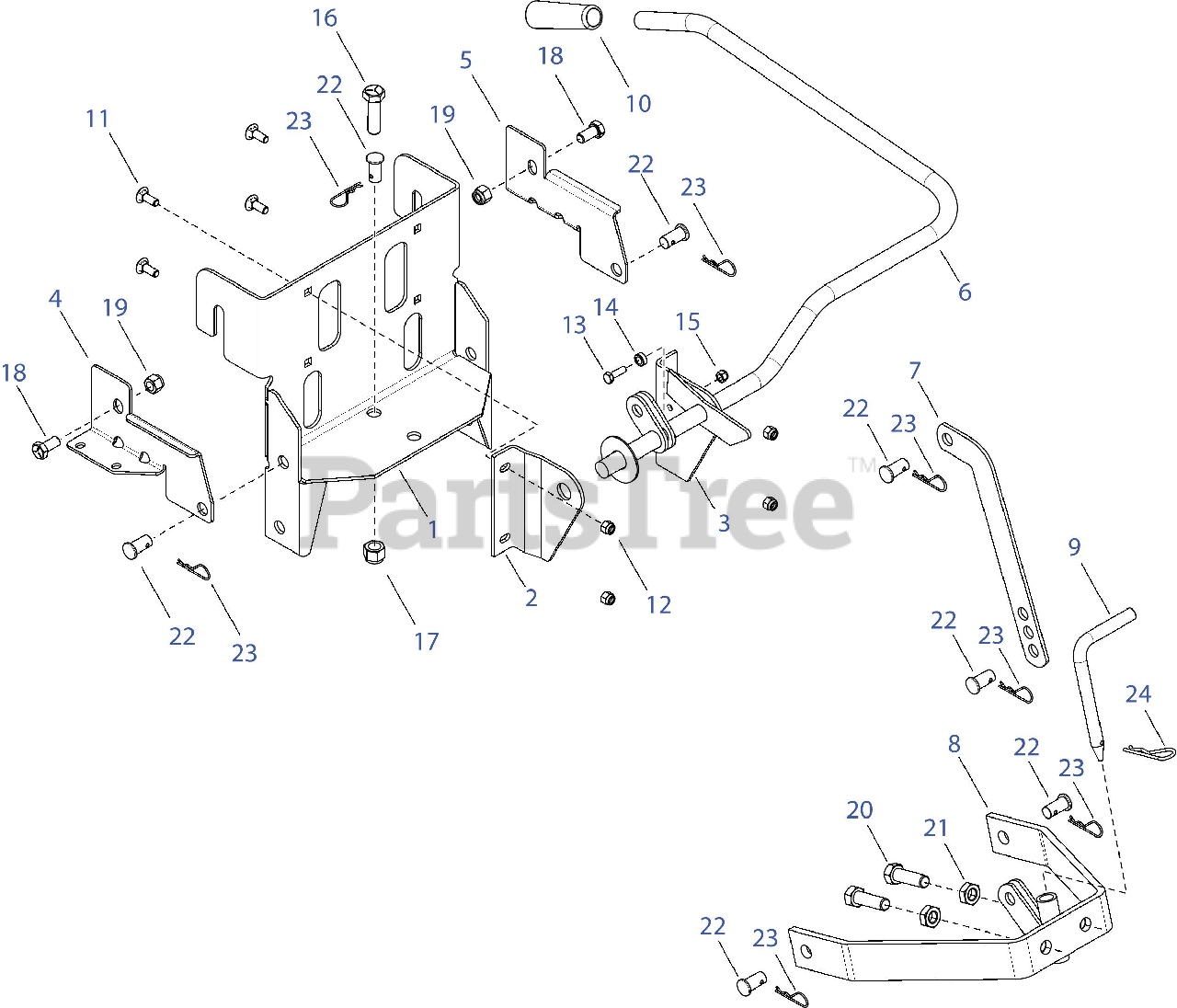

19A30019 (19A30019OEM) - Cub Cadet Rear Sleeve Hitch (2015) > Parts Diagrams (1) > General Assembly

  • Title
AF-65409

1

Sleeve Hitch Frame

Part# AF-65409

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $135.10

AF-25715

2

Pivot Bracket, L.H.

Part# AF-25715

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.16

AF-25714

3

Pivot Bracket, R.H.

Part# AF-25714

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.16

AF-27867

4

Hitch Support Bracket, L.H.

Part# AF-27867

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $22.74

AF-27868

5

Hitch Support Bracket, R.H.

Part# AF-27868

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $22.74

AF-64625

6

Lift Lever Assembly

Part# AF-64625

OEM Warranty Repair Part for Cub Cadet

Not available

AF-24732

7

Lifting Link Plate

Part# AF-24732

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $19.92

AF-65404

8

Sleeve Hitch Lift Assembly

Part# AF-65404

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $142.24

AF-47950

9

Pin, Sleeve Hitch

Part# AF-47950

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $32.55

AF-46471

10

Grip

Part# AF-46471

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.10

AF-43350

11

Bolt, Carriage 3/8-16 x 1"

Part# AF-43350

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.08

AF-HA21362

12

Nylock Nut, 3/8-16

Part# AF-HA21362 (Superseded to 712-0130)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.65

AF-43063

13

Bolt, Hex 5/16-18 x 1"

Part# AF-43063 (Superseded to 710-0376)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.69

AF-23625

14

Spacer

Part# AF-23625

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.58

AF-47810

15

Nut, Nylock 5/16-18

Part# AF-47810 (Superseded to 912-0429)

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $2.65

AF-47951

16

Bolt, Hex 5/8-11 x 1-3/4"

Part# AF-47951

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.10

AF-41615

17

Nut, Hex 5/8-11 Nylock

Part# AF-41615

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.11

AF-41616

18

Bolt, Hex 1/2-13 x 1"

Part# AF-41616

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.97

AF-41657

19

Nut, Nylock 1/2-13

Part# AF-41657

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.24

AF-47947

20

Bolt, Hex 5/8-11 x 2"

Part# AF-47947

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.97

912-0261

21

Nut, Hex Jam 5/8-11

Part# 912-0261

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.07

711-0309A

22

Clevis Pin, 5/8" x 1.2"

Part# 711-0309A

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 1 business day

Your price: $8.32

AF-43343

23

Pin, Hair Cotter, 3/32"

Part# AF-43343

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.27

714-0117

24

Pin, Hair Cotter, 5/32"

Part# 714-0117

OEM Warranty Repair Part for Cub Cadet

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.82

41768

Owner's Manual

Part# 41768

OEM Warranty Repair Part for Cub Cadet

Currently unavailable
