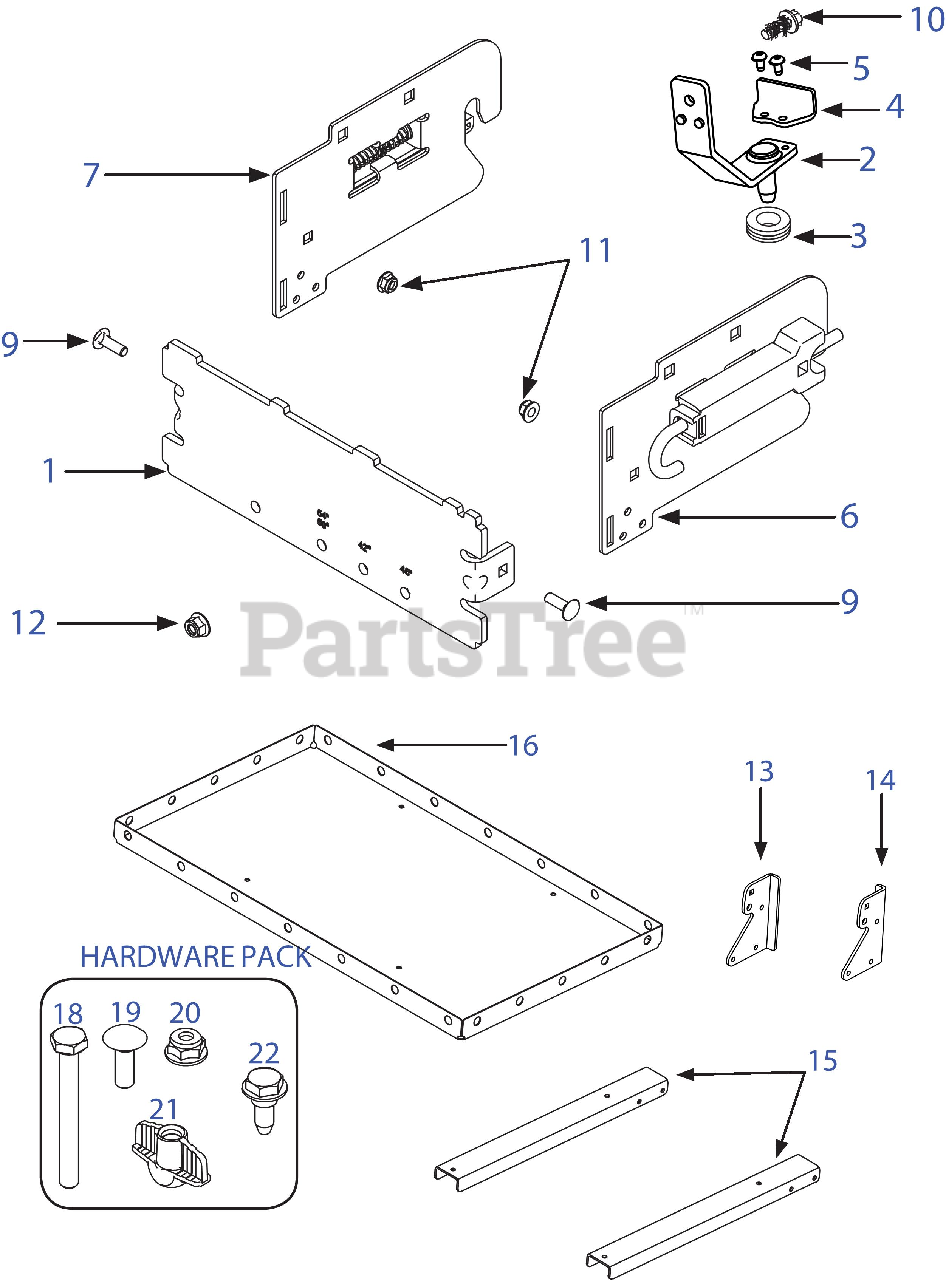

19A30029 (19A30029100) - Cub Cadet Rear Cargo Carrier (2016) General Assembly Parts Diagram

Rear Cargo Carrier

General Assembly Parts Diagram

  • Title

1

Cub Cadet 783-08056A

Rear Support Bracket

Variations

783-08056A-0637

Cub Cadet 783-08056A-0637

REAR MOUNTING PLAT - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 689Z00463A

Pin Hitch Support Assembly

$64.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 735-0277A

Rubber Grommet

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet 689Z00463A

Hitch Support Bracket

$64.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05070A

Torx Screw: 1/4-20

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 689Z00483A

RH Bracket Assembly

$75.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 689Z00484A

LH Bracket Assembly

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 689-00486

Hitch Hardware Pack

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0276

Carriage Screw: 5/16-18: 1.0

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04683C

Hex Screw:3/8-16: 1.0

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04063

Nylon Lock Nut:5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

Flange Lock Nut:3/8-16

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 789-00402

LH Cargo Hinge Bracket
(Superseded to 789-00402-0637)

$28.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 789-00403

RH Cargo Hinge Bracket
(Superseded to 789-00403-0637)

$28.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 789-00352-0637

Cargo Support Bracket

$30.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 789-00354-0637

Cargo Carrier

$96.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 689-00487

Cargo Carrier Hardware Pack

$32.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0641

Hex Screw:1/4-20: 2.25

$4.49

$

In Stock, only 2 left!

0

19

Cub Cadet 710-0703

Carriage Screw:1/4-20: .75

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04064

Flange Lock Nut:1/4-20

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 720-0279

Wing Nut:1/4-20

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 938-1225

Shoulder Screw:.3175 x .188: 1/4-20
(Superseded to 738-1225)

$

$

Not available
