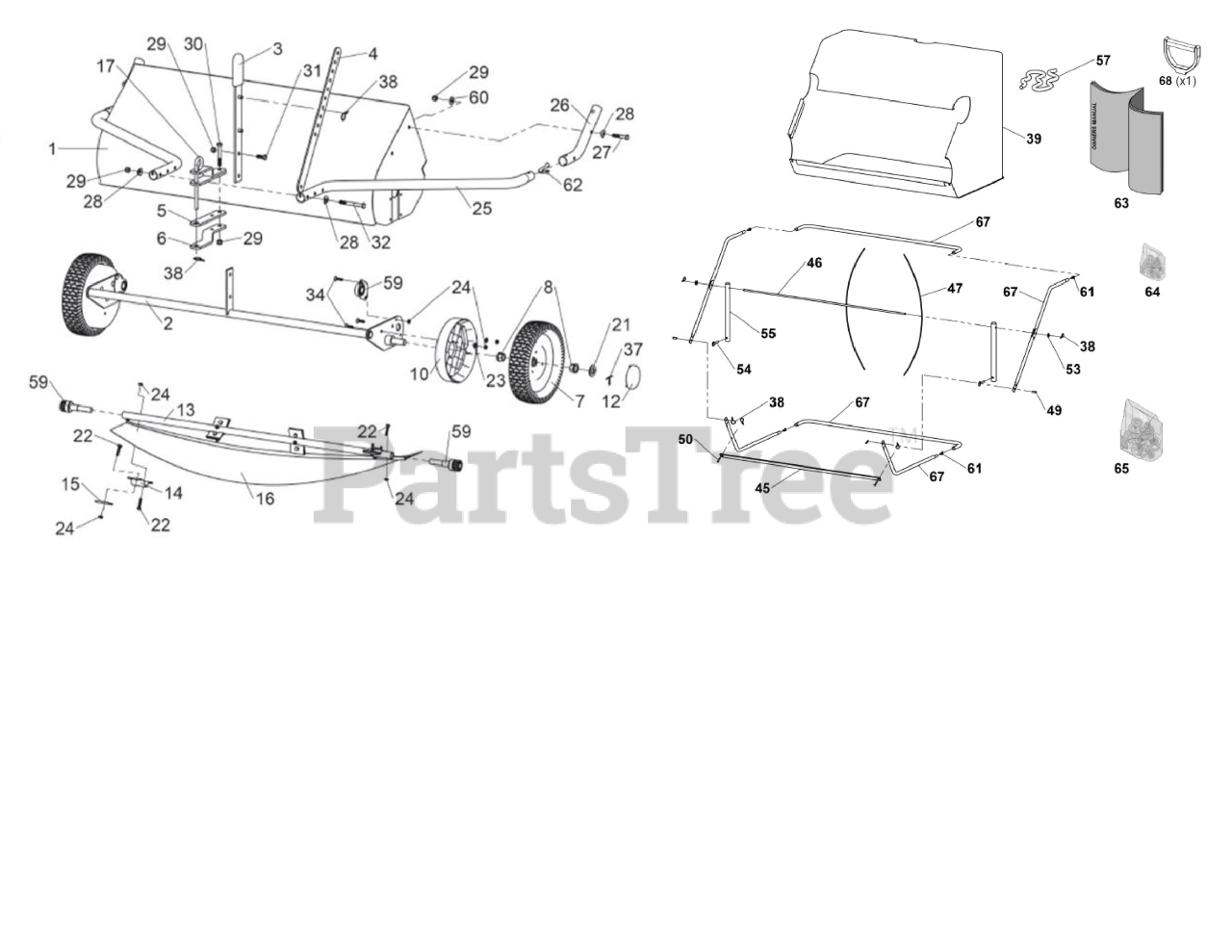

19A30032 (19A30032100) - Cub Cadet 50" Lawn Sweeper General Assembly Parts Diagram

50" Lawn Sweeper

General Assembly Parts Diagram

  • Title

1

n/a

Sweeper Housing

$

$

Not available

2

Cub Cadet OS-307119

Height Adjustment

$

$

Not available

3

Cub Cadet OS-307181

Height Adjustment Handle

$

$

Not available

4

Cub Cadet OS-307113

Adjustment Lever

$

$

Not available

5

Cub Cadet OS-307042

Flat Clevis Bar

$

$

Not available

6

Cub Cadet OS-307043

Offset Clevis Bar

$

$

Not available

7

Cub Cadet OS-307011

Wheel

$

$

Not available

8

Cub Cadet OS-6000540

Wheel Bushing

$

$

Not available

10

Cub Cadet OS-6000539

Dust Cover

$

$

Not available

12

Cub Cadet OS-307241

Hub Cap

$

$

Not available

13

Cub Cadet OS-307125

Brush Axle

$

$

Not available

14

Cub Cadet OS-307122

Brush Bracket

$

$

Not available

15

Cub Cadet OS-307121

Brush Clamp

$

$

Not available

16

Cub Cadet OS-307322

Brush

$

$

Not available

17

Cub Cadet OS-307082

Hitch Pin

$

$

Not available

21

Cub Cadet OS-3000721

Washer 3/4" Sae

$

$

Not available

22

Cub Cadet OS-3000539

1/4-20 X 1-1/4 Hex Bolt

$

$

Not available

23

Cub Cadet OS-3000716

Flat Washer

$

$

Not available

24

Cub Cadet OS-300065

1/4-20 Lock Nut

$

$

Not available

25

Cub Cadet OS-307038

Long Hitch Tube

$

$

Not available

26

Cub Cadet OS-307034

Short Hitch Tube

$

$

Not available

27

Cub Cadet OS-3000543

3/8-16 X 2 Hex Bolt

$

$

Not available

28

Cub Cadet OS-3000722

Curved Washer

$

$

Not available

29

Cub Cadet OS-310061

3/8-16 Nyloc Nut

$

$

Not available

30

Cub Cadet OS-310051

3/8-16 X 2-3/4 Hext Bolt

$

$

Not available

31

Cub Cadet OS-3000533

3/8-16 X 1 Hex Bolt

$

$

Not available

32

Cub Cadet OS-3000544

3/8-16 X 3-1/2 Hex Bolt

$

$

Not available

34

Cub Cadet OS-6000733

1/4-20 X 1 Carriage Bolt

$

$

Not available

37

Cub Cadet OS-300081

Cotter Pin

$

$

Not available

38

Cub Cadet OS-307083

Hair Pin

$

$

Not available

39

Cub Cadet OS-307332

Hopper Bag

$

$

Not available

45

Cub Cadet OS-307062

Hopper Bar

$

$

Not available

46

Cub Cadet OS-307053

Pivot Rod

$

$

Not available

47

Cub Cadet OS-307052

Tension Rod

$

$

Not available

49

Cub Cadet OS-3000818

Clevis Pin

$

$

Not available

50

Cub Cadet OS-3000820

Clevis Pin

$

$

Not available

53

Cub Cadet OS-3000720

Washer 3/8" Uss

$

$

Not available

54

Cub Cadet OS-3000823

Quick Release Pin

$

$

Not available

55

Cub Cadet OS-307032

Connecting Tube

$

$

Not available

57

Cub Cadet OS-307361

Dump Rope

$

$

Not available

59

Cub Cadet OS-6000828

Pinion Bearing Kit

$

$

Not available

60

Cub Cadet OS-310073

Flat Washer

$

$

Not available

61

Cub Cadet OS-6000208

Snap Button

$

$

Not available

62

Cub Cadet OS-6000222

Snap Button

$

$

Not available

63

769-11953

Owners Manual

$

$

Not available

64

Cub Cadet OS-307132

Hitch Hardware Bag

$

$

Not available

65

Cub Cadet OS-307133

Frame Hardware Bag

$

$

Not available

66

Cub Cadet OS-6000189

Decal

$

$

Not available

67

Cub Cadet OS-6000865

Hopper Frame Kit

$

$

Not available

68

Cub Cadet OS-6003894

Rope Handle

$

$

Not available
