19A30038 (19A30038100) - Cub Cadet FastAttach Brush Guard General Assembly Parts Diagram

FastAttach Brush Guard

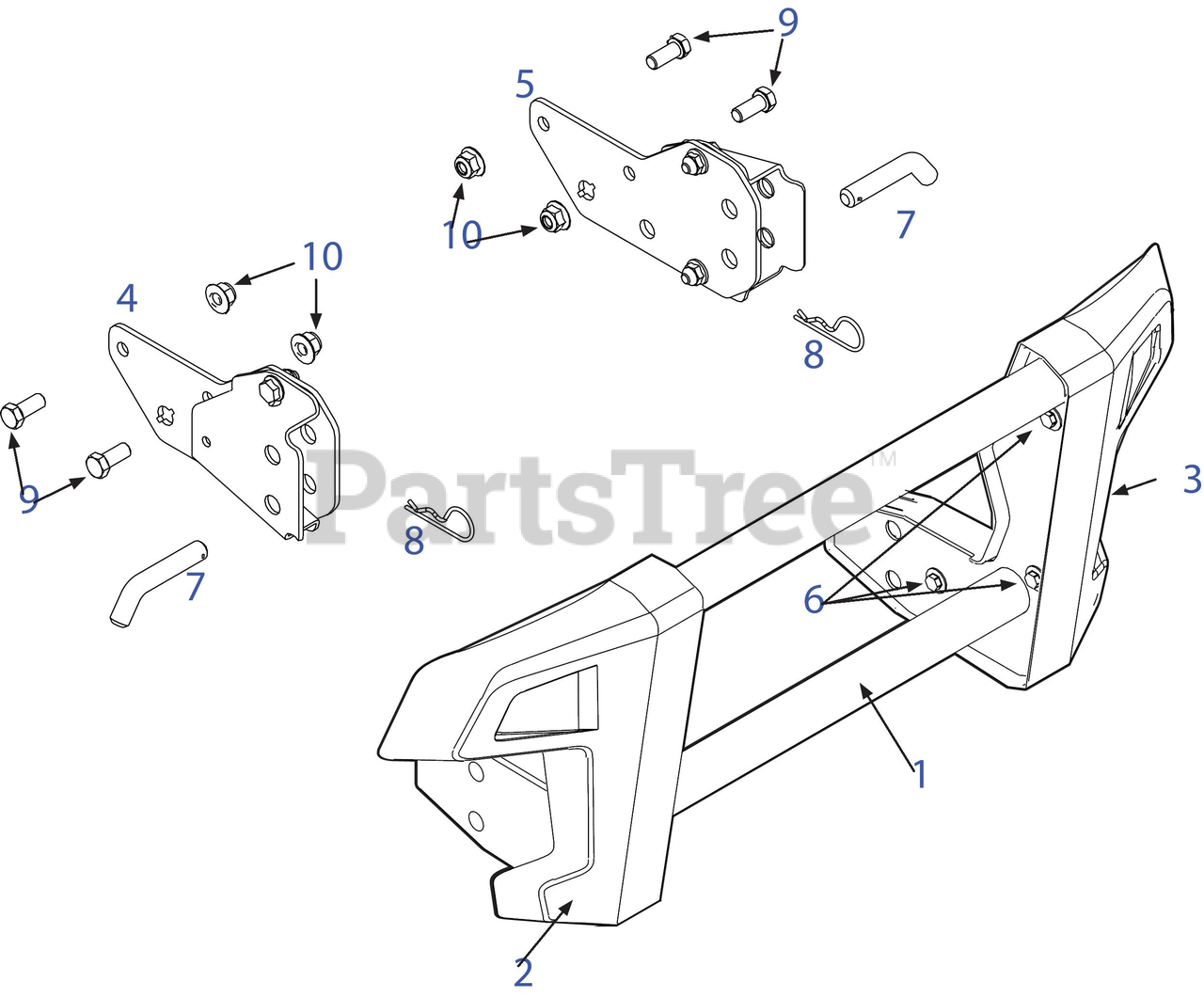

General Assembly Parts Diagram

  • Title

1

Cub Cadet 689-00618

Brush Guard Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 689-00618-4021

YELLOW BUMPERBRUSHGUA - CUB YELLOW 2 (4021)

$137.99

$

In Stock, only 1 left!

0

Cub Cadet 689-00618-0637

BRUSH GUARD BUMPER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$94.99

$

In Stock, only 1 left!

0

2

Cub Cadet 731-13094

Guard, Fascia RH

$27.99

$

In Stock, Qty 6

0

3

Cub Cadet 731-13095

Guard, Fascia LH

$27.99

$

In Stock, only 1 left!

0

4

Bracket Assembly, Front RH

$

$

Not available

5

Bracket Assembly, Front LH

$

$

Not available

6

Cub Cadet 710-04995A

Screw, 5/16-14 X .750

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 747-06963

Pin, 0.500 X 1.70

$13.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 714-3020

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3001

Screw 3/8-16 X .880 GR5

$7.49

$

In Stock, Qty 5

0

10

Cub Cadet 712-04065

Nut

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-06012A

Fixing Bolt 3/8-16 X .125 GR5

$3.99

$

In Stock, Qty 7

0
